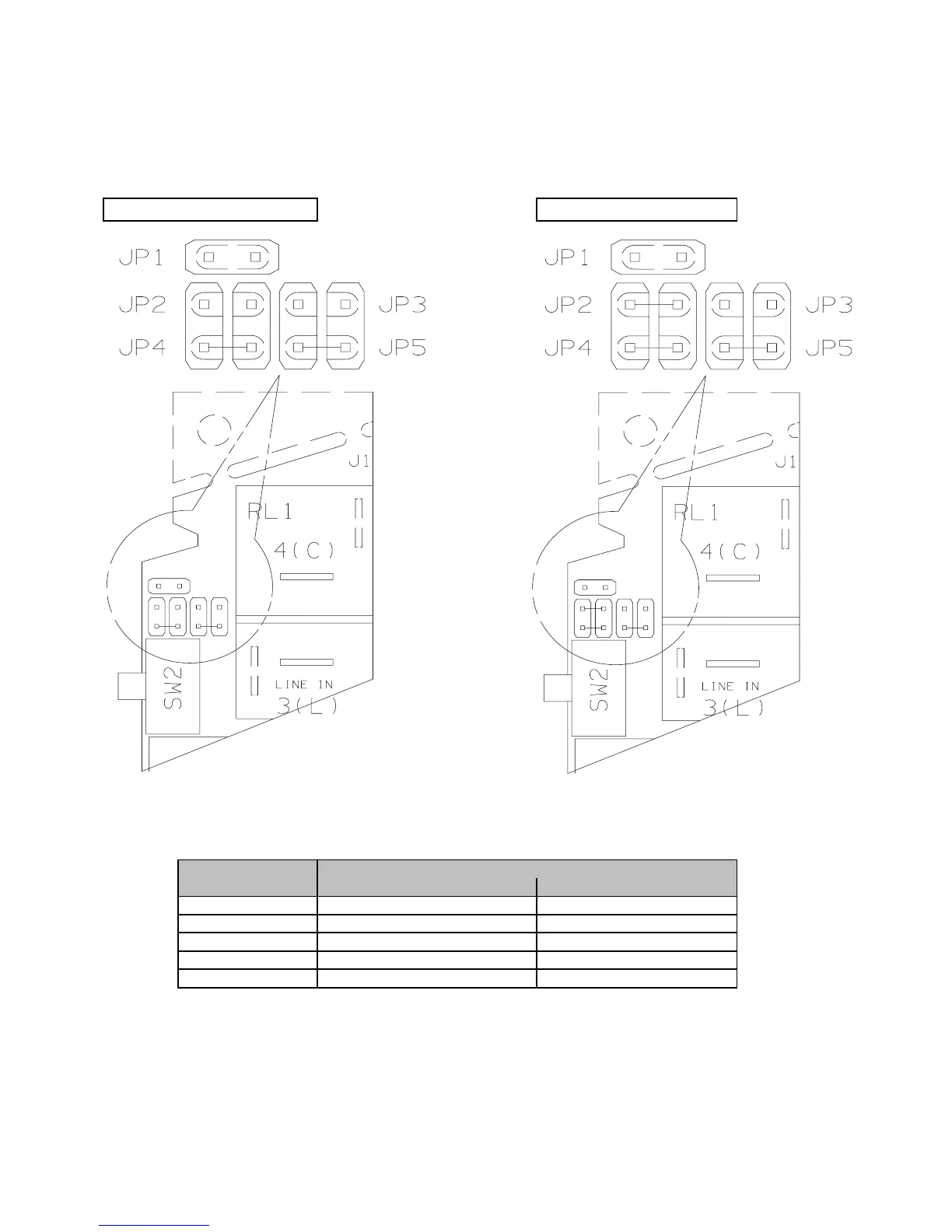

5-13 JUMPERS CONFIGURATION
Jumpers are located on the indoor PCB near the MODE button.
Unit is shipped with jumpers set according to the following table:
JUMPER
HEAT PUMP MODELS
JP1
open
JP2
open
JP3
open
JP4
closed
JP5
closed
HEAT PUMP MODELS
closed
STATUS
COOLING MODELS
open
closed
closed
open
COOLING MODELS
27
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
1 Specifications
4
Unit Specifications
4
Major Component Specifications
7
Other Component Specifications
10
2 Dimensional Data
11
3 Performance Data
13
Air Throw Distance Chart
13
4 Electrical Data
16
Electric Wiring Diagrams
16
Wiring System Diagrams
17
5 Function
18
Cool Mode Operation
18
Heat Mode Operation
19
Auto (Cool/Heat) Mode Operation
20
Dry Mode Operation
21
Fan Mode Operation
21
Auto Fan Speed
21
Forced-Made
22
Protection Operations in Cool and Dry Modes
22
Protection Operation in Heat Mode
23
I Feel Function
25
Night Function
25
Diagnostic
26
Jumpers Configuration
27
Contacts for Building Automation
28
Maintenance
29
6 Troubleshooting
30
Check before and after Troubleshooting
30
Circuit Breaker Trips or Fuse Blows
30
Circuit Breaker in Several Minutes after Turning Air Conditioner on
30
Unit and Compressor Do Not Run
31
Some Parts of the Air Conditioner Do Not Operate
32
Air Conditioner Operates, but Abnormalities Aer Observed
33
Poor Cooling or Heating
35
Excessive Cooling or Hating
36
If a Sensor Is Defective
36
7 Checking Eletrical Components
37
Measurement of Insulation Resistance
37
Checking Continuity of Fuse on PCB Assy
38
Checking Motor Capacitor
38
