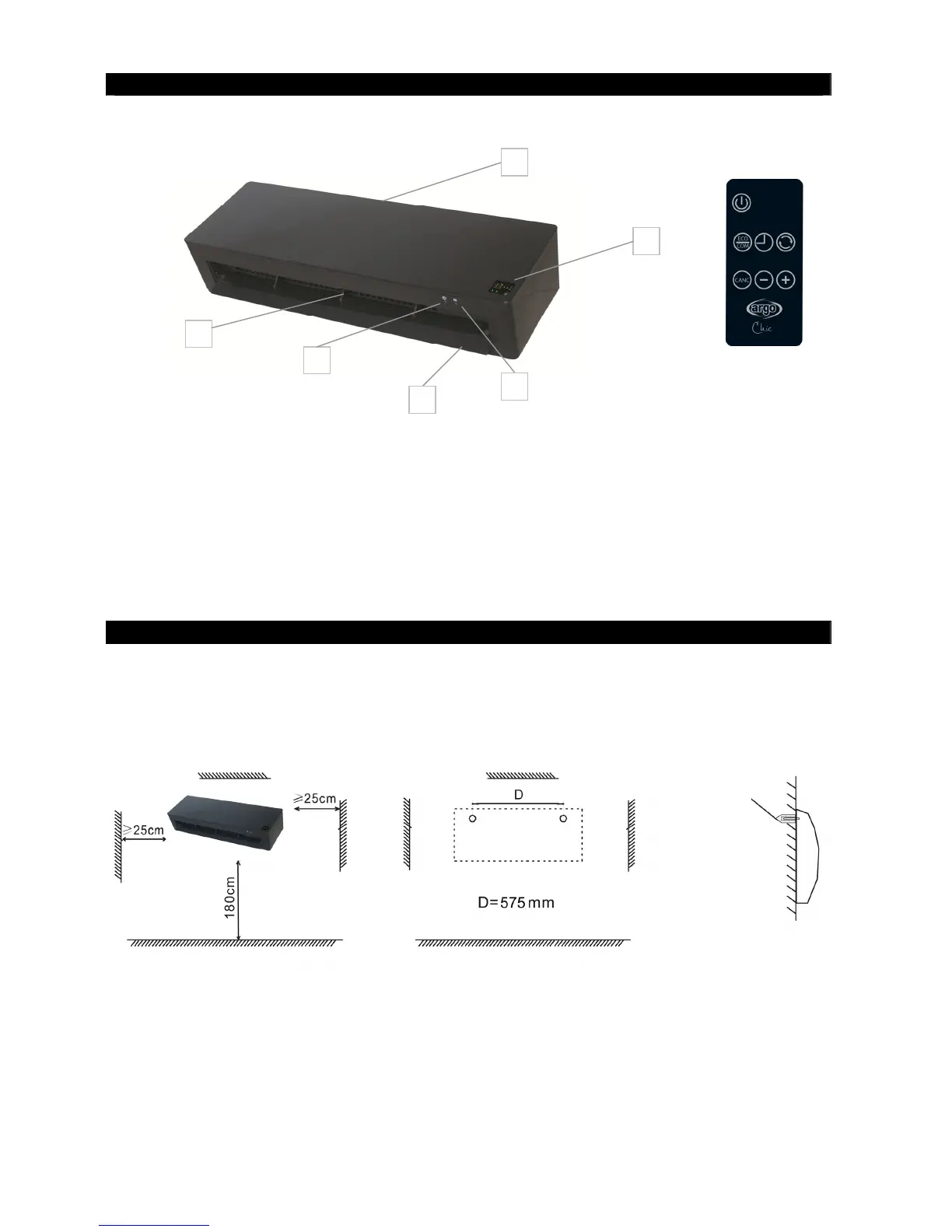

DESCRIPTION OF PARTS
1. Air inlet grille
2. LED display
3. Air outlet grille
4. Horizontal flap
5. TIMER button (TIMER OFF)
6. ON/OFF and selection button
7.Remote control
INSTALLATION INSTRUCTIONS
The fan heater must be installed on a wall before operating. Don’t try to use it without installation.
The installation sequence of the fan heater is as follows:
1. Find a space to install the fan heater (See Figure 1).
2. Drill two holes of the dimension of the expansible tubes Ø - 8 mm - in the wall (See Figure 2) – D= 575 mm
3. Insert the expansible tubes into the holes and tighten them with the screws provided firmly.
NOTE: Fasten the screws tightly. Do not fasten the screw into the expansible tube thoroughly; the length of the
bare parts should be 10 mm.
4. Mount the fan heater to the wall (See Figure 3).
Make sure the two holes located on the back of the heater do aim at the above two screws, then push the heater
backwards to the wall, and then downwards till the unit is stable.
Figure 1 Figure 2 Figure 3
Fisher
3
5
1
2
6
4
