Electrical System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
ES-18
ES-24 ES-25

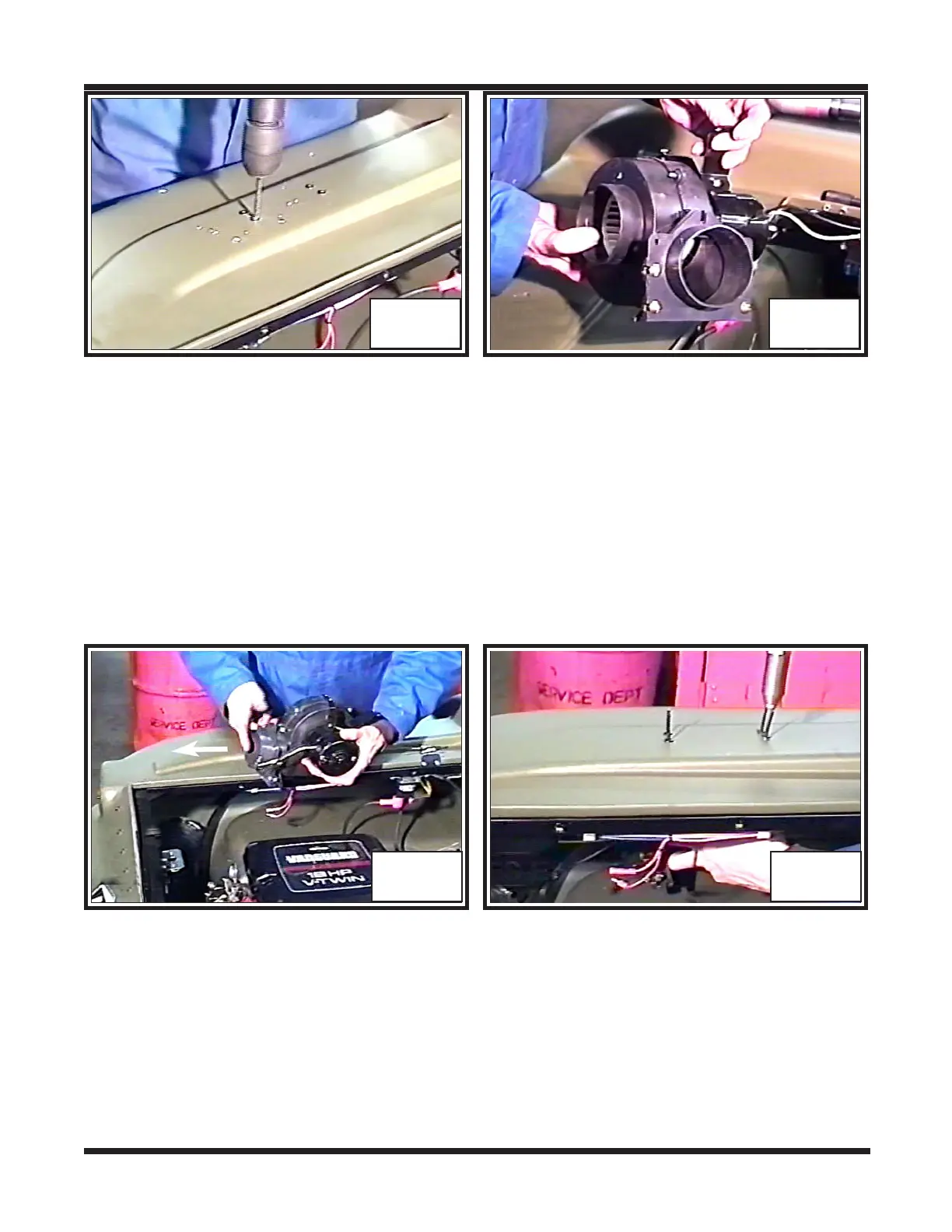

7. Remove the fan. Photo ES-25
8. Remove the mounting bracket from the old fan if it is being replaced, and install it to
the new one.
Installing the Brake Cooling Fan (Response & Bigfoot models)
1. Install the mounting bracket to the fan. Place the fan into the vehicle orienting the
outlet towards the front of the vehicle. Photo ES-26
2. Align the holes in the bracket with the 4 holes in the upper body and insert the 4
rivets. Photo ES-27.
ES-26 ES-27
3. Pull each of the rivets with either a hand or air operated rivet gun.
4. Reconnect the wiring from engine harness to fan.
5. Connect the cooling hose to the fan and secure with the gear clamp.
6. Perform the servicing procedure, Installing the Intake Duct, in section DE of this
service guide.
