Argos 601/4650 - Stage 3 - Fitting the Gazebo Cover

Fig.7
Fig.8
6
Assembly Instructions
Step 5
Step 6

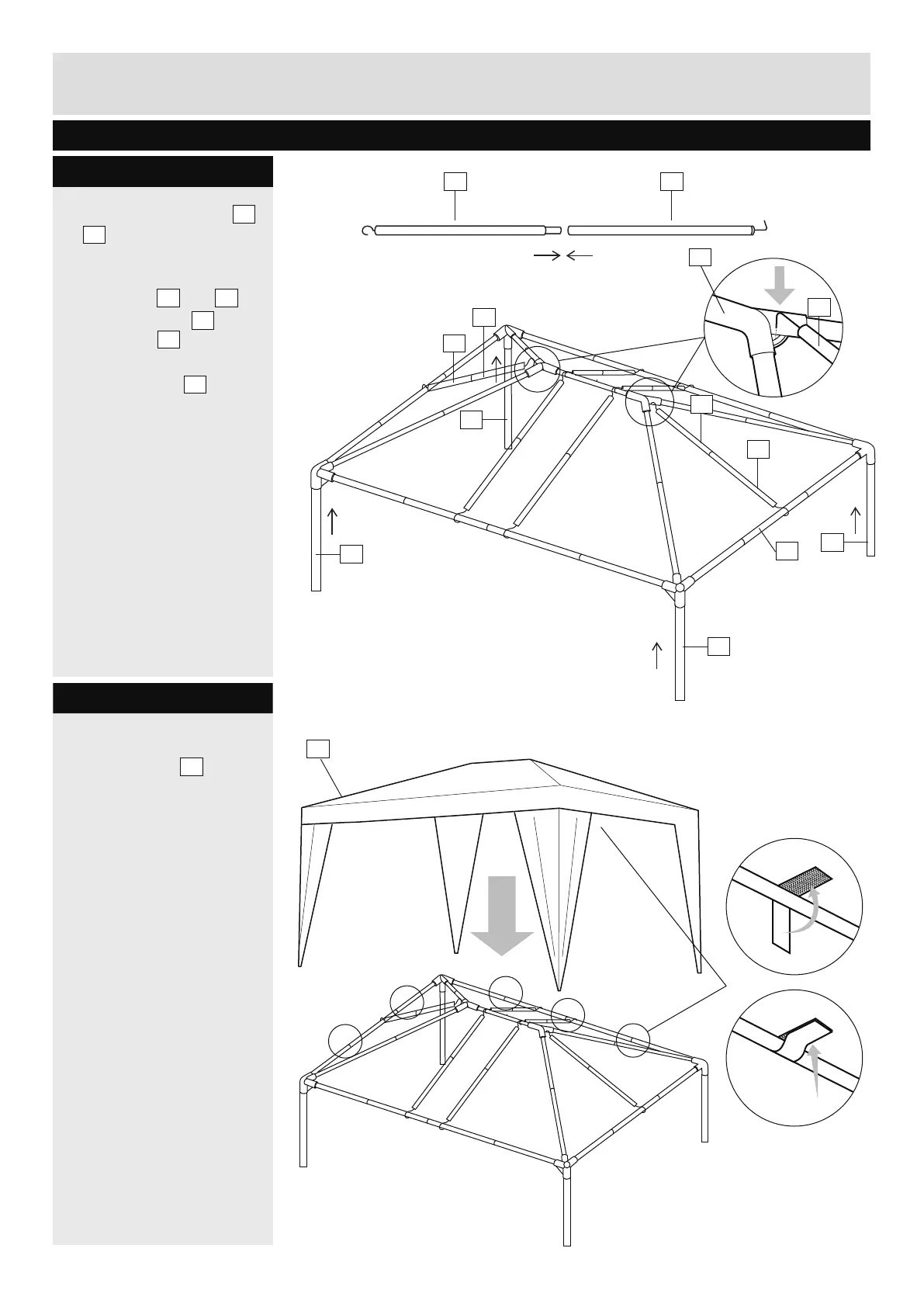

Stage 3 – Fitting the Gazebo
Insert Leg Pole into
Connect the top pole
& .
Use hools provided at the
end of pole and
connecting pole and
middle joint .
the unit. Ensure all the
poles are fully inserted
and secure.
See fig. 7.
Carefully place the
Gazebo Cover over
the assembled roof.
Then pull the Gazebo
tightly over the
assembled roof frame.
See fig.8.
NOTE: It would be
useful to ask someone
to help you at this stage.
