Argos Malibu - Fit Cupboard Left Side and Filer Left Side

Finished
front edge
Finished
front edge
Finished
front edge
J
Q
Assembly Instructions
12

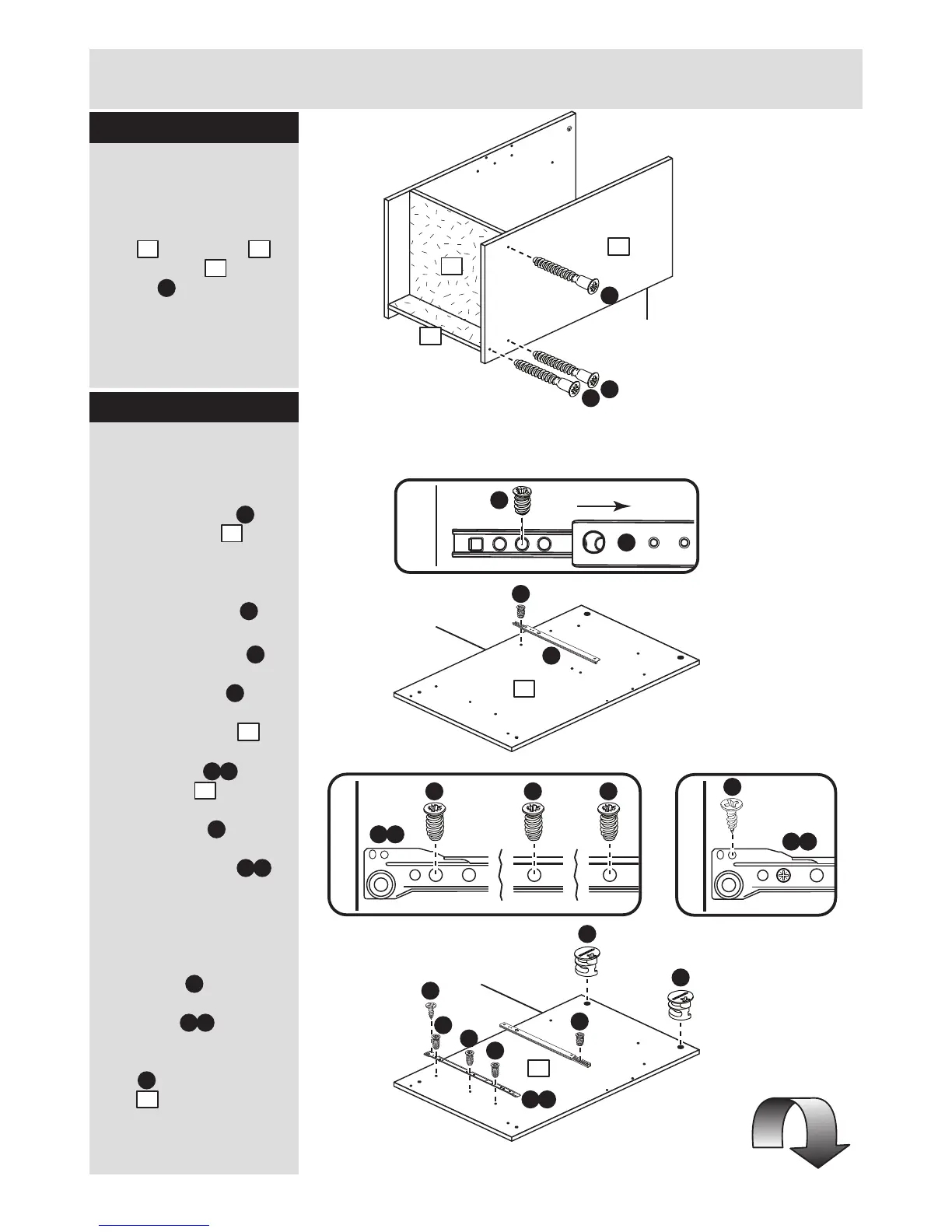

Step 22
Finished
front edge
E
E
E
Fit the cupboard left
side
Attach the cupboard left
side to the base
and the plinth using 3
screws .
Step 23
1
6
11
11
E
1
6
Turn the filer left side
over for the next step
a:
b:
J
J
C
C
Prepare the filer left
side
a: Place a runner on
the filer left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the filer left side .
Fit the runner to the
filer left side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd and 3rd screws
use the holes that line up
with the other panel
holes.
Fit a screw into the
2nd hole in at the top of
the runner .
Insert 2 large locking
nuts into the filer left
side .
Turn the filer left side
over for the next step
3
J
J
3
3
Q
Q
C
3
U a
U a
I
3
3
Prepare the left side
a: Fit runner to the
left side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
c: Screw 4 metal
dowels into the left
side .
Insert 2 large locking
nuts into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Fit 2 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
U a
I
Finished front edge
I
1st
screw
2nd
screw
I
3rd
screw
U a
Finished front edge
