Assembly Instructions

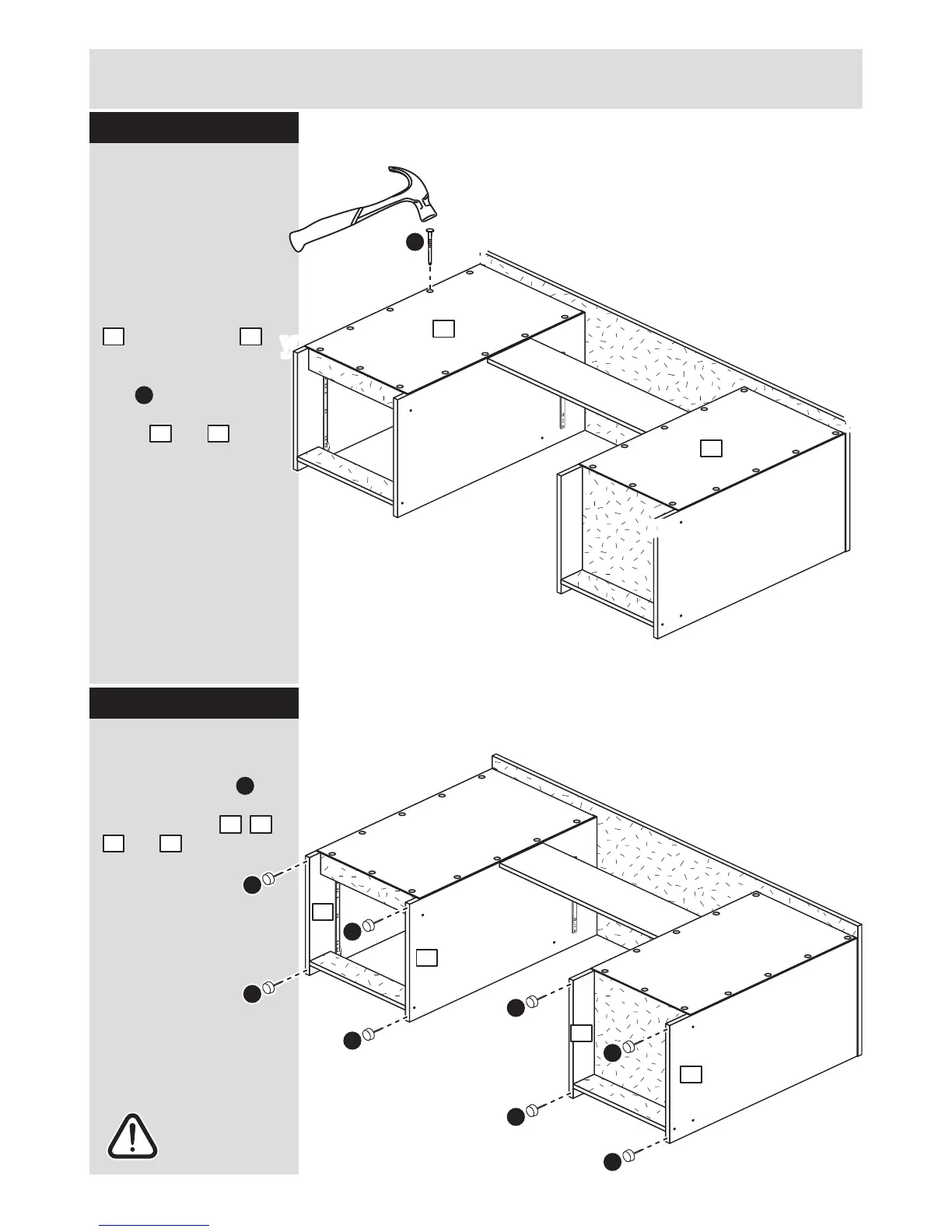

Step 34
18
Fit the backs
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the small back
. and large back
onto the unit.
Nail around the side
and bottom edges of the
backs and .
Note: Nails should
be spaced about 150mm
apart.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
24 25
24 25
L
2
xx
yy
xx
b:
L
a:
24
25
2
Step 35
Fit the 8 plastic nails
Tap 2 plastic nails
into the bottom edge of
each side panel , ,
. and as shown.
Carefully stand the
unit up for the next
step.
V
V
1 2
3 4
V
V
V
V
V
V
V
Warning: The
unit is heavy.
Lift with care.
1
2
3
4
