Argos Malibu - Adjust Door

Assembly Instructions
23
Step 42
b:
c:
d:
a:

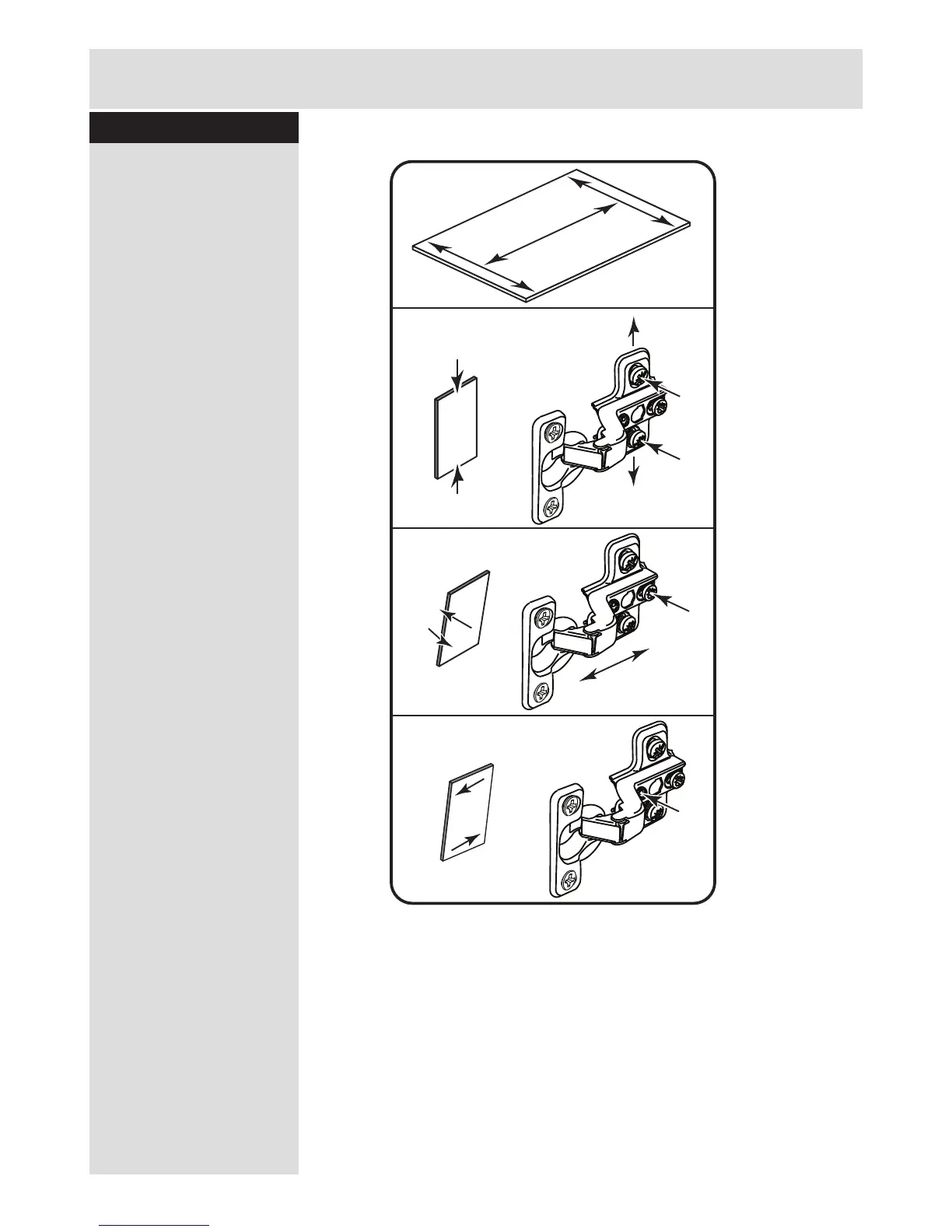

Adjust the door if
needed
a: Before adjusting the
door, use a spirit level to
check the top (or base)
of the unit is level, front-
to-back and side-to-side
in the 3 positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
