Argos Mix - 3 Drawer Chest Assembly Guide; Preparing Drawer Components; Assembling Drawer Boxes

Assembly Instructions
10
Step 15
a:
b:
b:
B
B
B
B
F
E
E

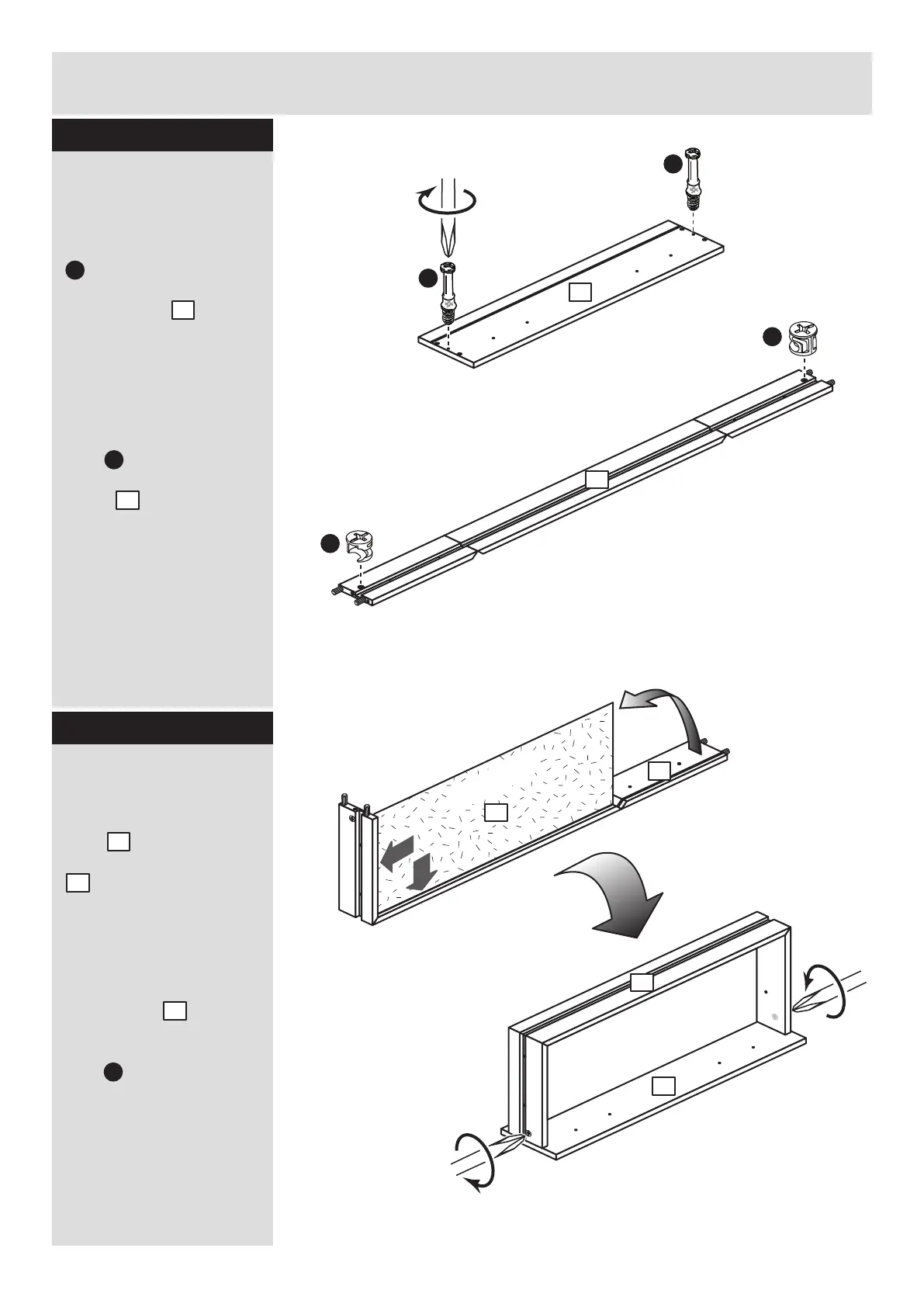

Prepare the drawer
fronts and wraps
a: Screw 2 metal dowels
. into the holes shown
on the back of the
drawer fronts .
Note: Tighten metal
dowels up fully against
the panel.
b: Insert 2 small locking
nuts into the holes
shown on the drawer
wraps .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
B
13
E
12
Assemble the drawers
a: Place the drawer
base into the narrow
slot on the drawer wrap
. . Fold the wrap
around the base.
b: Turn the drawer wrap
assembly over and push
it onto the back of the
drawer front .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
14
12
13
E
13
12
12
14
plain surface
12
13
x 3
x 3
x 3
x 3
Step 16
Note: Due to the manufacturing process,
the holes for the locking nut can be on
either surface of the drawer wrap.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
