Argos Mix - Fitting Drawer Runners to Sides

Assembly Instructions
12
Step 19
A
A
F
J
J
J
J
J
J
F

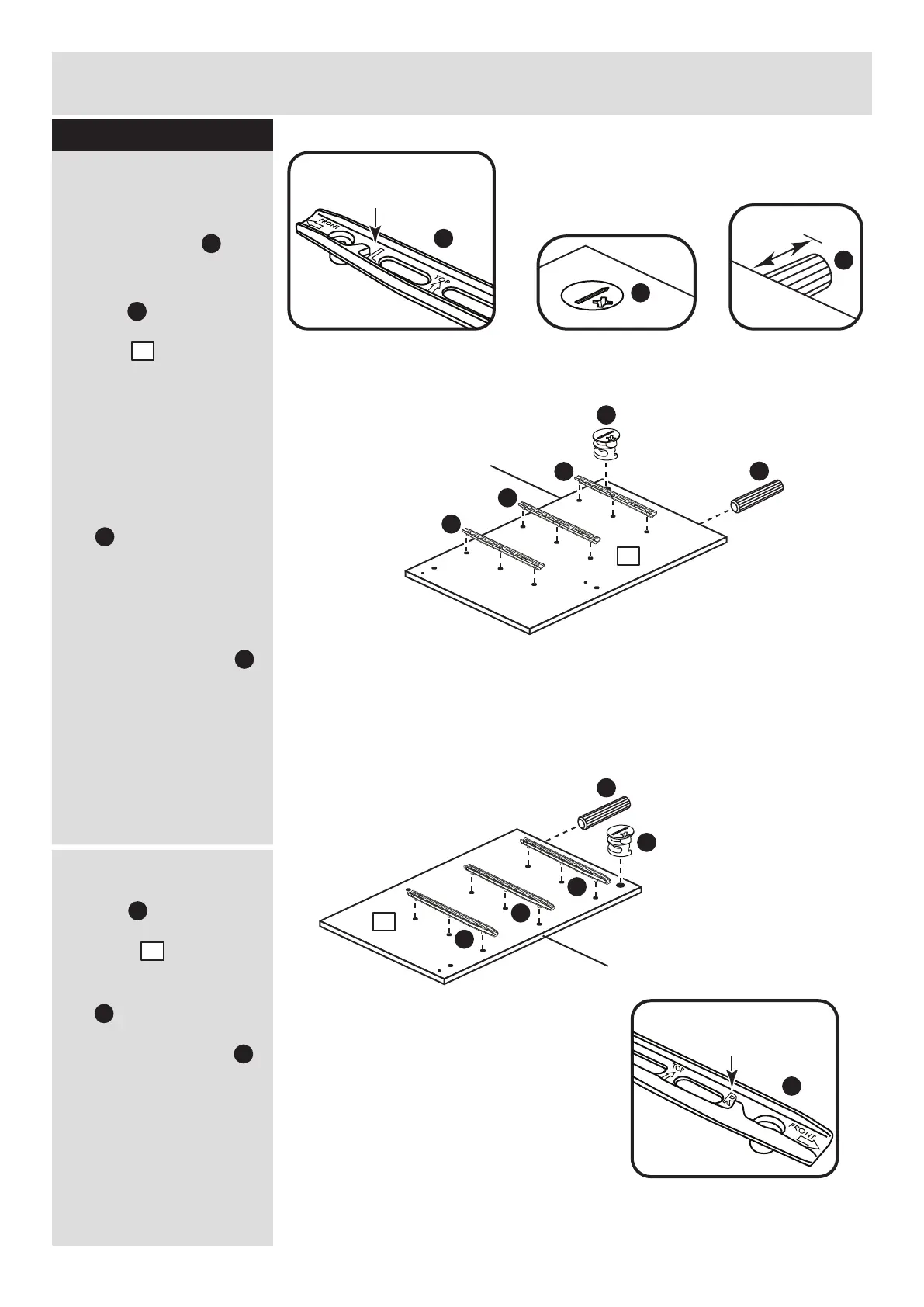

Prepare the left and
right sides
Separate runners .
a: Push fit 3 left
runners marked ‘L’
into the holes shown on
left side .
Note: Runners must be
be fitted flat against the
panel. If necessary
gently tap into final
position.
Insert a large locking
nut as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap in wooden dowel
as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b: Push fit 3 right
runners marked ‘R’
into the holes shown on
right side .
Insert a large locking
nut as shown.
Tap in wooden dowel
as shown.
8
J
F
9
F
J
J
A
A
8
9
Finished
front edge
Finished
front edge
10mm
A
a:
b:
F
R
F601
J
L
F600
J
