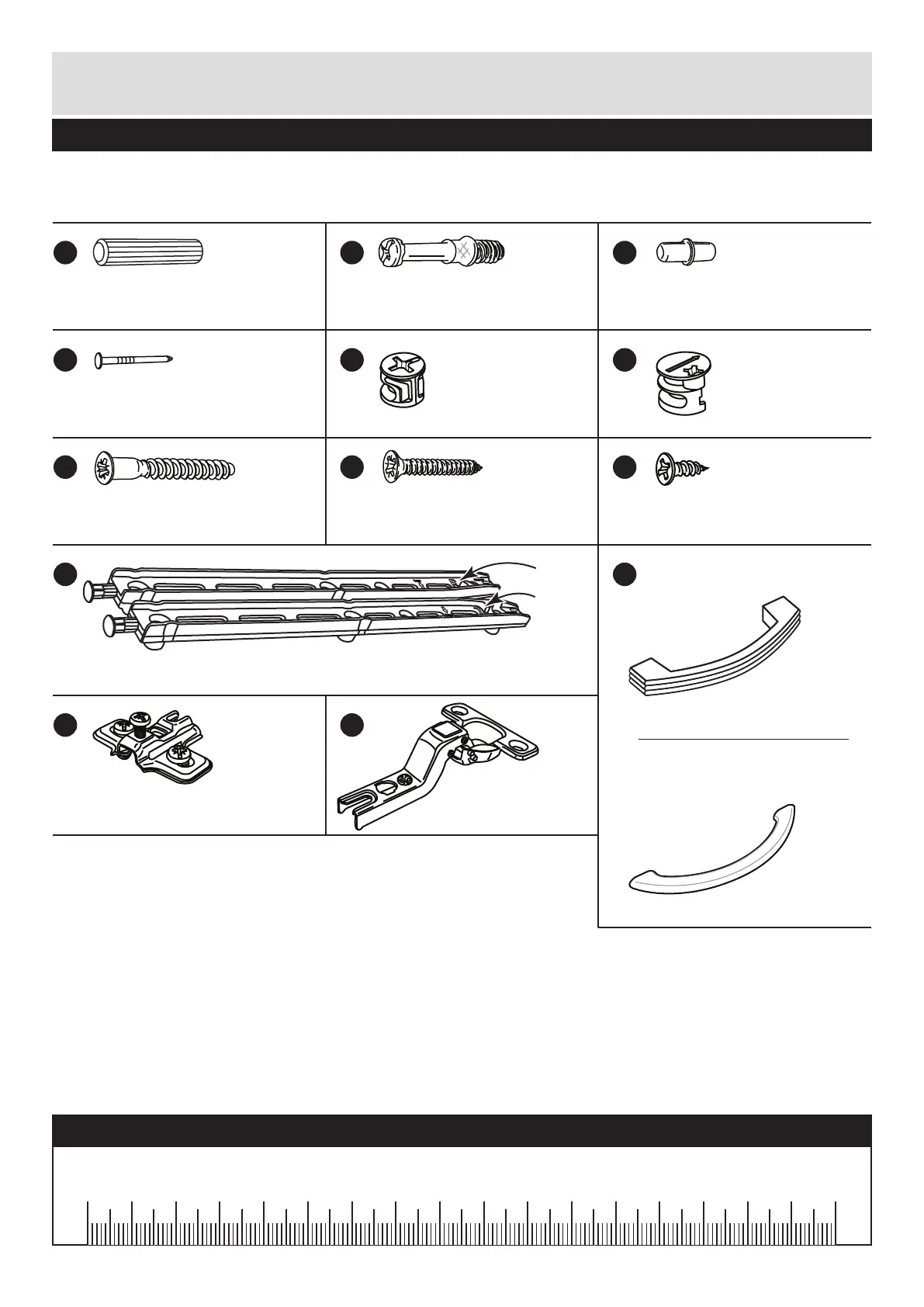

Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
see malibu fitment mk2 for large number of panels and fittings
A
Wooden dowel (F22) x 12
C
D
G
40mm Screw (F910) x 10
H
25mm Screw (F50) x 14
Nail (F51) x 25
I
F
Large locking
nut (F900) x 4
Small locking
nut (F3) x 6
E
B
Metal dowel (F901) x 10
J
R (F601)
L (F600)
F599
F599
Drawer stops (F599) x 6
Runners (F600) x 3 and (F601) x 3
Door stop (F110) x 1
13mm Screw (F63) x 4
L M
Hinge (F522) x 2
Hinge plate (F523) x 2
Silver Handle (F1091) x 7
K
Blue/Pink Handle (F215) x 7
Beech units are supplied
with Silver Handles
White units are supplied
with either Blue or Pink
Handles
