FOR MODELS: JGW, JGR AND JGJ SECTION 1 - DESIGN SPECIFICATIONS & DATA
PAGE 1 - 6 1/01
The Force Feed Lubricator provides oil to the piston rod packing and the compressor pis-
tons. The Lubricator Plate gives directions for adjusting the flow of oil. If this plate is missing,
please contact Ariel Corporation, Mount Vernon, Ohio for a replacement or directions.
NOTE: THE FORCE FEED LUBRICATOR BOX CONTAINS APPROXIMATELY 1/3 GAL-
LONS (1 L) OF LUBRICANT.

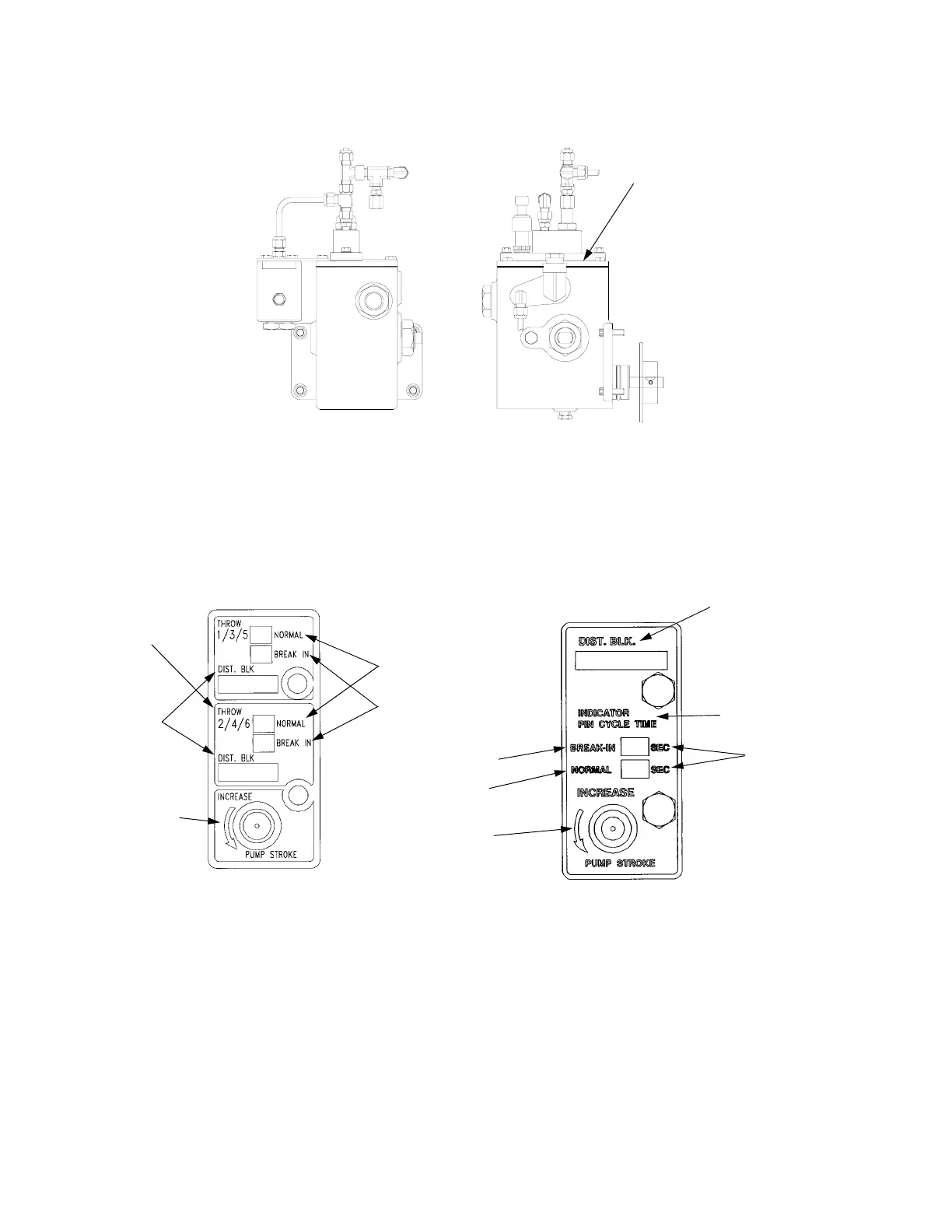

FIGURE 1-4: FORCE FEED LUBRICATOR PUMP - TYPICAL
FIGURE 1-5: FORCE FEED LUBRICATOR DATA PLATES
Data Plate
Distribution
Block Part
Number
Force Feed Lubricator
Data Plate for Twin
Pumps - Indicator Cycle
Time:
Force Feed Lubricator
Data Plate for Single
Pump - Indicator Cycle
Time:
Normal
(Seconds/cycle)
Break In
(Seconds/cycle)
Throw
Number
Increase
Pump
Stroke
Increase
Pump
Stroke
Distribution Block
Part Number
Indicator Pin
Cycle Time
Seconds/
cycle
Normal
Break In
