EN - 11
1. Remove wrap and packaging materials
from unit.
2. Remove unit from shipping container.
See Move Unit Manually on page 18.

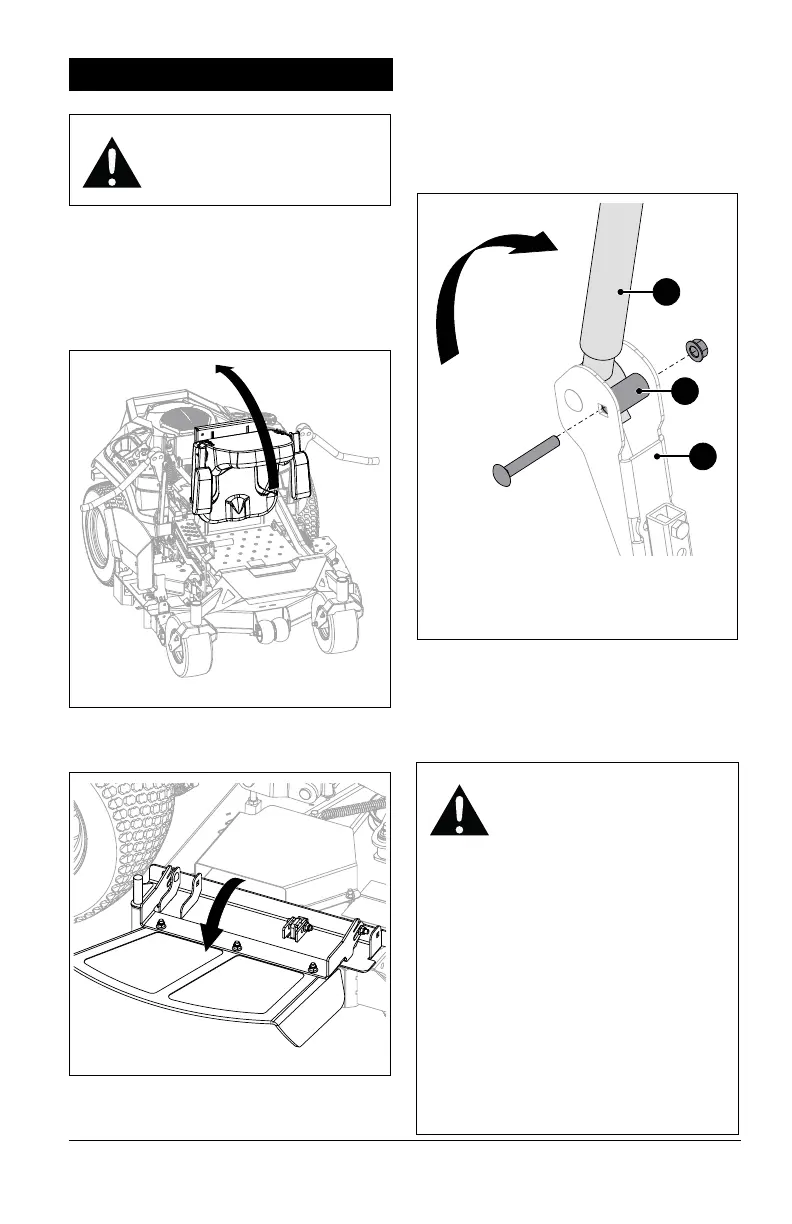

3. Return seat to operating position. See
Figure 3.
4. Place the discharge chute in the
operating position. See Figure 4.
5. Remove two eccentric spacers, two
round head square neck bolts and two
locking nuts from hardware bag.
6. Rotate steering levers to operating
position and install eccentric spacer
between steering lever plates. Secure
with hardware. See Figure 5.
7. Adjust steering levers. See Adjust
Steering Levers on page 26.
8. Check tire pressures and inflate to
recommendation. See Specifications on
page 40.
ASSEMBLY
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
WARNING: AVOID INJURY.
Explosive separation of tire
and rim parts is possible.
• DO NOT inflate tires above
maximum pressure listed
on tire sidewalls.
• DO NOT inflate tires with a
compressor; use a hand
pump.
• DO NOT stand in front of
tire assembly when
inflating. Use a clip-on
chuck and extension hose
long enough to allow you to
stand to one side.
WARNING: DO NOT mount a
tire without proper equipment
and experience.
Figure 5
1. Eccentric Spacer
2. Steering Lever
3. Steering Lever Plate
1
2
3
