Ariens IKON-X 52 CARB User Manual

48 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

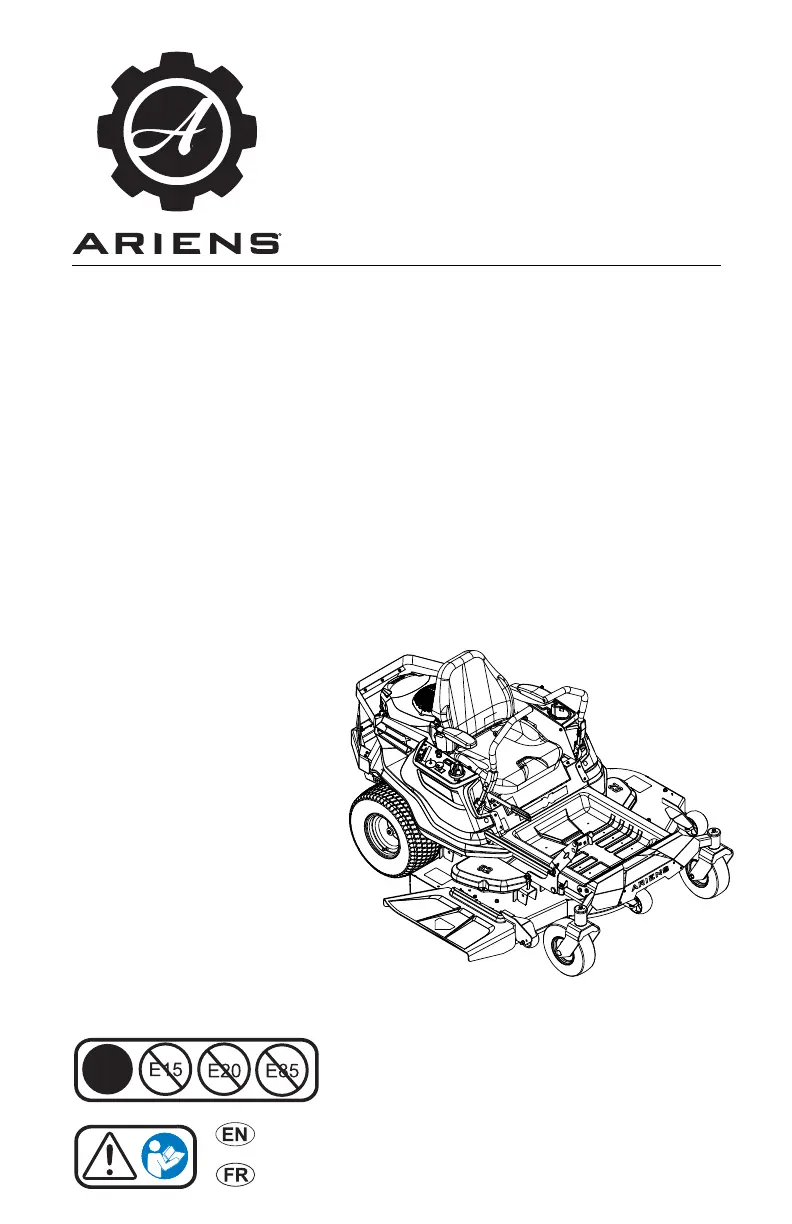

Operator’s Manual

Manuel du Utilisateur

05167900D • 9/18

Printed in USA

ENGLISH

FRANÇAIS

E10

915220 – IKON-X 42

(SN 080000+)

915221 – IKON-X 42

(SN 080000 +)

915222 – IKON-X 52

(SN 080000 +)

915223 – IKON-X 52

(SN 080000 +)

915224 – IKON-X 42 CARB

(SN 080000 +)

915225 – IKON-X 52 CARB

(SN 080000 +)

915226 – IKON-XL 42

(SN 080000 +)

915227 – IKON-XL 52

(SN 080000 +)

915228 – IKON-XL 60

(SN 080000 +)

915229 – IKON-XL 60

(SN 080000 +)

IKON-X

IKON-XL

™

™

915237 – IKON-XL 42 CARB

(SN 080000 +)

915239 – IKON-XL 52 CARB

(SN 080000 +)

915241 – IKON-XL 60 CARB

(SN 080000 +)

Models

Table of Contents

Questions and Answers:

T
Tammy JohnsonAug 12, 2025
Why my Ariens IKON-X 52 CARB Lawn Mower engine does not start?
- A
  Andrew KingAug 12, 2025
  Several issues can prevent your Ariens Lawn Mower engine from starting. The safety interlock system might not be engaged or could be faulty, so inspect that first. Ensure the fuel tank isn't empty and that the fuel supply is clean. Check if the battery is discharged and needs charging, or if the connection between the battery and cables is poor—tighten or clean them as needed. Also, make sure the spark plug wires are connected and the spark plugs aren't faulty. If these steps don't resolve the issue, there may be an electrical or engine problem, and you should contact your Ariens dealer.
H
hannah83Aug 16, 2025
Why Ariens IKON-X 52 CARB does not drive?
- T
  Tami MyersAug 16, 2025
  If your Ariens Lawn Mower isn't driving, the transaxles may be bypassed; engage the levers. If that doesn't solve the problem, the ground drive belt or the transaxles could be faulty, and you should contact your Ariens dealer.
D
Debbie MichaelAug 19, 2025
How to fix Ariens IKON-X 52 CARB Lawn Mower engine running rough?
- H
  howardtoddAug 19, 2025
  If your Ariens Lawn Mower engine is running rough, the choke control knob might be in the 'on' position; move it to the 'off' position. Also, the air filter cartridge could be plugged, so clean or replace it. If the problem persists, the engine itself might be faulty, and you should contact your Ariens dealer.
K
Kevin HermanAug 23, 2025
How to fix Ariens IKON-X 52 CARB that does not track straight?
- W
  William RamirezAug 23, 2025
  If your Ariens Lawn Mower doesn't track straight, start by checking the tire pressure and ensure it's correct. If the problem continues, the steering levers may need adjustment. If neither of these steps resolves the issue, the transaxles and/or linkages might need adjustment, and you should contact your Ariens dealer.
D
Donna LeachAug 27, 2025
What to do if Ariens IKON-X 52 CARB Lawn Mower engine overheats?
- B
  Brenda KennedyAug 27, 2025
  If your Ariens Lawn Mower is overheating, start by checking the engine oil level and add oil if it's low. Also, the cooling fins might be plugged, so clean the engine. If the overheating continues, the engine itself may be faulty, and you should contact your Ariens dealer.
K
kristinspencerAug 31, 2025
What causes PTO malfunctions in Ariens Lawn Mower?
- B
  brandivillanuevaAug 31, 2025
  If the PTO malfunctions on your Ariens Lawn Mower, first ensure the operator presence switch is activated by sitting on the operator seat. If the issue continues, the operator presence switch, deck drive belt, PTO switch, wiring, connectors, or clutch could be faulty. In such cases, you should contact your Ariens dealer, or replace the deck drive belt.
A
Ana SmithSep 3, 2025
Why Ariens IKON-X 52 CARB Lawn Mower moves with engine off and parking brake engaged?
- J
  Jacqueline NolanSep 3, 2025
  If your Ariens Lawn Mower moves with the engine off and the parking brake engaged, the parking brake likely needs adjustment. Adjust the parking brake lever. If the issue persists, the parking brake itself might be faulty, and you should contact your Ariens dealer.
A
albert48Sep 7, 2025
Why Ariens IKON-X 52 CARB Lawn Mower has poor cutting quality?
- P
  Patricia RobinsonSep 7, 2025
  Poor cutting quality with your Ariens Lawn Mower can stem from several factors. The mower blades might not be level, or the mower deck pitch could be incorrect; level and adjust the pitch of the mower deck. Dull or faulty mower blades can also be the cause, so sharpen or replace them. Additionally, mowing too fast, poor belt tension, or setting the cutting height too low can contribute to the problem. If the belt tension or condition is poor, replace the deck drive belt. For very tall grass, mow twice and do not set the height of cut too low.

Ariens IKON-X 52 CARB Specifications

General

Engine	Kawasaki FR691V
Engine Power	23 HP
Engine Displacement	726 cc
Cutting Width	52 inches
Cutting Height	1.5 - 4.5 inches
Transmission	Hydrostatic
Speed	7 mph
Warranty	3 years

Summary

Safety Guidelines

General Safety Practices

Follow safety rules, practices, and understand symbols to prevent injury or damage.

Hazard Identification and Warnings

Identify and mitigate hazards like tipping, loss of traction, hot parts, and rotating parts.

Operational Safety Guidelines

Follow safety rules for operator training, personal protection, and safe unit operation.

Slope, Fuel, and Towing Safety

Adhere to safety procedures for slope operation, fuel handling, and towing.

Battery and Service Safety

Follow safety precautions for battery handling and unit service.

Transport and Storage Safety

Ensure safety during unit transport and storage, and prepare for seasonal use.

Controls and Features Overview

Operating the Unit

Starting Procedures

Step-by-step guide for starting the engine and operating the unit safely.

Mowing Tips and Unit Shutdown

Maintenance Procedures

Component Checks and Lubrication

Belt, Blade, and Battery Service

Hydraulic System Maintenance

Adjustments for Optimal Performance

Troubleshooting Common Issues

Engine and Drive System Problems

Cutting Quality and Other Issues

Specifications
