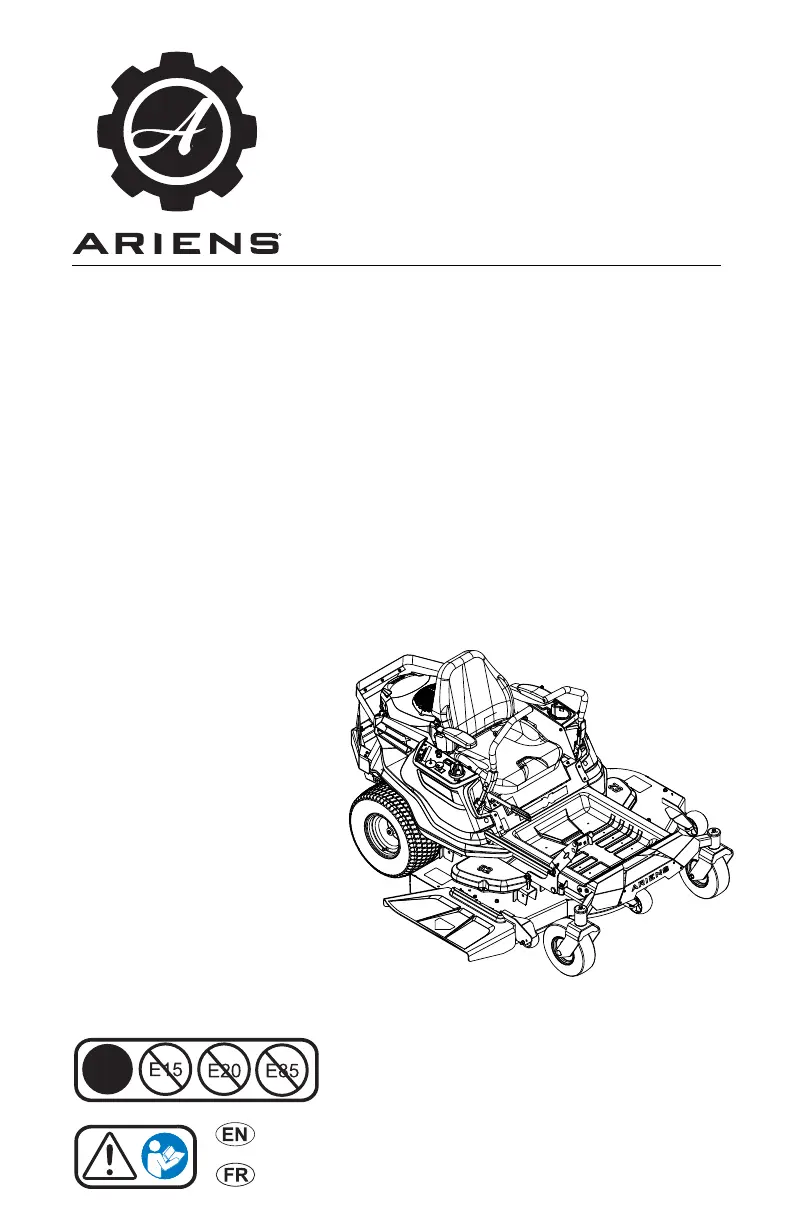

Operator’s Manual
Manuel du Utilisateur
05167900D • 9/18
Printed in USA
ENGLISH
FRANÇAIS
E10
915220 – IKON-X 42
(SN 080000+)
915221 – IKON-X 42
(SN 080000 +)
915222 – IKON-X 52
(SN 080000 +)
915223 – IKON-X 52
(SN 080000 +)
915224 – IKON-X 42 CARB
(SN 080000 +)
915225 – IKON-X 52 CARB
(SN 080000 +)
915226 – IKON-XL 42
(SN 080000 +)
915227 – IKON-XL 52
(SN 080000 +)
915228 – IKON-XL 60
(SN 080000 +)
915229 – IKON-XL 60
(SN 080000 +)
IKON-X
IKON-XL
™
™
915237 – IKON-XL 42 CARB
(SN 080000 +)
915239 – IKON-XL 52 CARB
(SN 080000 +)
915241 – IKON-XL 60 CARB
(SN 080000 +)
Models

Table of Contents

Other manuals for Ariens IKON X 42

Preview: Operating Instructions
Operating Instructions40 pages

Questions and Answers

  • J
    james03Aug 19, 2025
    Why my Ariens IKON X 42 Lawn Mower engine does not start?
    • M
      Maria FordSep 12, 2025
      Several issues can prevent your Ariens Lawn Mower engine from starting. The safety interlock system might not be engaged or could be faulty, so inspect that first. Ensure the fuel tank isn't empty and that the fuel supply is clean. Check if the battery is discharged and needs charging, or if the connection between the battery and cables is poor—tighten or clean them as needed. Also, make sure the spark plug wires are connected and the spark plugs aren't faulty. If these steps don't resolve the issue, there may be an electrical or engine problem, and you should contact your Ariens dealer.
  • A
    andrewthompsonAug 21, 2025
    Why Ariens IKON X 42 does not drive?
    • R
      ramirezjessicaAug 21, 2025
      If your Ariens Lawn Mower isn't driving, the transaxles may be bypassed; engage the levers. If that doesn't solve the problem, the ground drive belt or the transaxles could be faulty, and you should contact your Ariens dealer.
  • J
    John GutierrezAug 23, 2025
    Why Ariens Lawn Mower engine does not start?
    • V
      Victoria FrederickAug 23, 2025
      The Ariens Lawn Mower engine might not start due to several reasons. The safety interlock system may not be engaged or could be faulty. The fuel tank might be empty, or the fuel supply could be contaminated. Also, the battery might be discharged, or the connection between the battery and battery cables could be poor. In addition, spark plug wires might be loose, or spark plugs could be faulty. If that's not the case, make sure to check the safety interlock system and fill the fuel tank. If the fuel is contaminated, replace it with clean fuel. If the battery is discharged, charge it. If the connection between the battery and battery cables is poor, tighten and/or clean them. Finally, connect any loose spark plug wires or replace faulty spark plugs.
  • T
    Terry SmithAug 26, 2025
    How to fix Ariens IKON X 42 engine running rough?
    • H
      hahnheatherAug 26, 2025
      If your Ariens Lawn Mower engine is running rough, the choke control knob might be in the 'on' position; move it to the 'off' position. Also, the air filter cartridge could be plugged, so clean or replace it. If the problem persists, the engine itself might be faulty, and you should contact your Ariens dealer.
  • J
    John JohnsonAug 28, 2025
    How to fix Ariens IKON X 42 Lawn Mower that does not track straight?
    • K
      kim11Aug 28, 2025
      If your Ariens Lawn Mower doesn't track straight, start by checking the tire pressure and ensure it's correct. If the problem continues, the steering levers may need adjustment. If neither of these steps resolves the issue, the transaxles and/or linkages might need adjustment, and you should contact your Ariens dealer.
  • H
    Haley HinesAug 29, 2025
    What to do if Ariens IKON X 42 engine runs rough?
    • C
      Carla MartinAug 30, 2025
      If the engine of your Ariens Lawn Mower is running rough, it might be because the choke control knob is in the 'on' position, or the air filter cartridge is plugged. Move the choke control knob to the 'off' position to resolve this. Clean or replace the air filter cartridge.
  • M
    mclarkSep 1, 2025
    What to do if Ariens IKON X 42 does not drive?
    • K
      Karen MartinezSep 1, 2025
      If your Ariens Lawn Mower does not drive, it could be because the transaxles are bypassed. Engage the levers to resolve this issue.
  • T
    Troy FrazierSep 3, 2025
    What to do if Ariens IKON X 42 engine overheats?
    • A
      aaronsullivanSep 3, 2025
      If your Ariens Lawn Mower is overheating, start by checking the engine oil level and add oil if it's low. Also, the cooling fins might be plugged, so clean the engine. If the overheating continues, the engine itself may be faulty, and you should contact your Ariens dealer.
  • D
    Donna JonesSep 5, 2025
    What causes PTO malfunctions in Ariens IKON X 42 Lawn Mower?
    • T
      Tricia BurkeSep 5, 2025
      If the PTO malfunctions on your Ariens Lawn Mower, first ensure the operator presence switch is activated by sitting on the operator seat. If the issue continues, the operator presence switch, deck drive belt, PTO switch, wiring, connectors, or clutch could be faulty. In such cases, you should contact your Ariens dealer, or replace the deck drive belt.
  • B
    bethkingSep 7, 2025
    Why Ariens Lawn Mower moves with engine off and parking brake engaged?
    • O
      omurraySep 8, 2025
      If your Ariens Lawn Mower moves with the engine off and the parking brake engaged, the parking brake likely needs adjustment. Adjust the parking brake lever. If the issue persists, the parking brake itself might be faulty, and you should contact your Ariens dealer.

Summary

Safety Guidelines and Procedures

Operator Responsibilities and Training

Operating Conditions and Hazards

Safety considerations for slopes, terrain, lighting, fuel, and service procedures.

Unit Operation and Maintenance

Starting, Operating, and Stopping

Procedures for starting, operating, and safely stopping the unit, including emergency stops.

Routine Maintenance and Checks

Schedule for maintenance tasks, parts, fluid checks, and belt inspections.

Hydraulic and Belt System Service

Adjustments and Deck Service

Mower Deck Leveling and Pitch Setting

Steps for leveling the mower deck and setting blade pitch for cutting performance.

Troubleshooting Common Issues

Engine, Drive, and PTO Problems

Solutions for engine starting/running issues, drive system malfunctions, and PTO problems.

Tracking, Cutting, and Other Issues

Troubleshooting for unit tracking, cutting quality, and brake engagement problems.

Ariens IKON X 42 Specifications

General IconGeneral
Engine BrandKawasaki
Cutting Width42 inches
Cutting Height1.5 - 4.5 inches
Transmission TypeHydrostatic
Number of Blades2
Fuel Capacity2.8 gallons
Deck MaterialSteel
Speed7 mph forward / 3 mph reverse
Warranty3 years limited
