Ariens Apex 52 Owner's Manual

EN - 13
1. Fuel Tank and Cap
2. Fuel Level Window
3. Oil Filter
4. Oil Drain
5. Engine Oil Dipstick
6. Air Filter
7. Ignition Key
8. Choke Control Knob (Models 991151,
177)
9. Throttle Control Lever
10. Power Take-off (PTO) Knob
11. Hour Meter
12. Height-of-Cut Adjustment System
13. Transport Lock Release Lever
14. Deck Lift Pedal
15. Seat Adjustment Lever
16. Parking Brake Lever
17. Belt Cover (2)
18. Steering Lever (2)
19. Discharge Chute
20. Anti-Scalp Roller (6)
21. Transaxle Bypass Lever (2)
22. Battery (Under Seat)
23. Fuse Box
24. Hydraulic Oil Expansion Tank (2)
25. Carbon Canister (Models 991173, 175,
177)

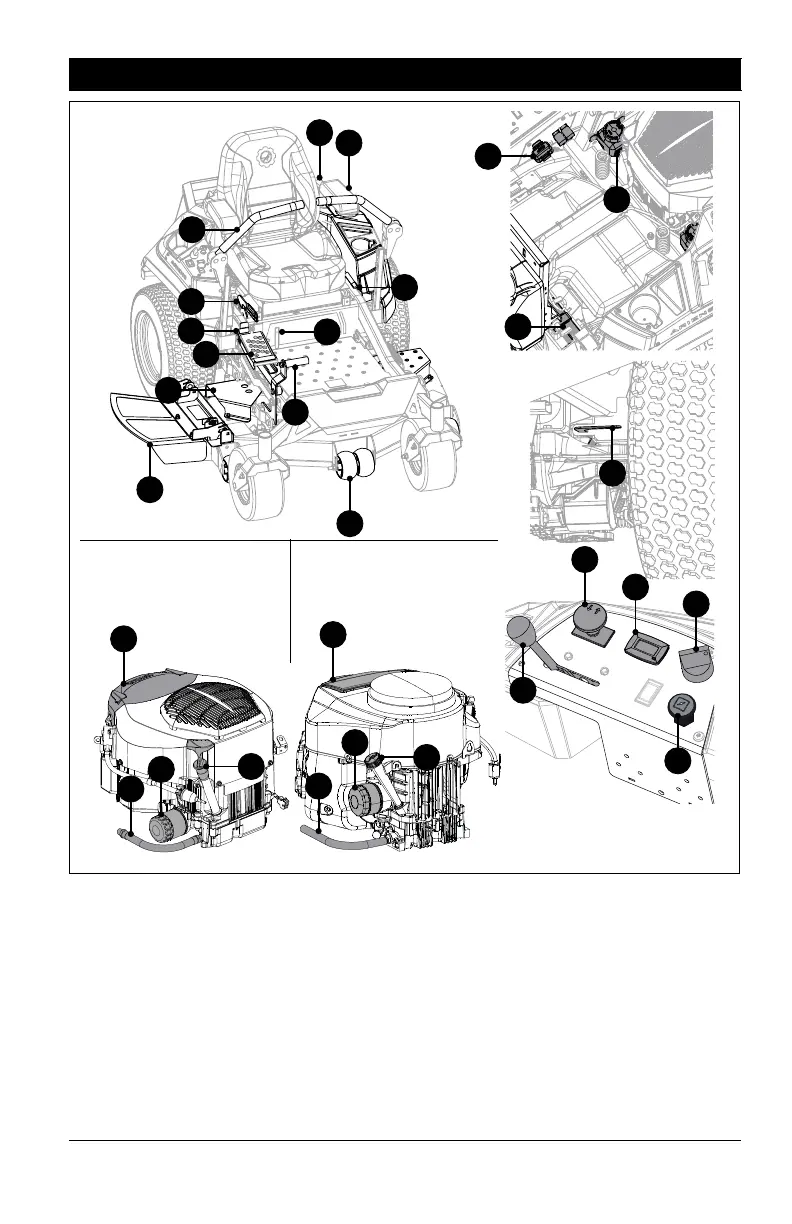

CONTROLS AND FEATURES
Figure 6
6
20
23
4
22
5
24
3
9
12
10
7
11
13
16
19
14
2
1
15
8
18
17
5
3
4
6
21
Models
991153
991155
991157
991173
991175
Model
991151
991177
25

Ariens Apex 52 Specifications

General

Engine Brand	Kawasaki
Engine Power	23 HP
Cutting Width	52 inches
Transmission	Hydrostatic
Deck Material	10-gauge steel
Number of Blades	3
Engine	Kawasaki FR691V
Engine Displacement	726 cc
Speed	8 mph forward/4 mph reverse
Cutting Height	1.5 - 4.5 inches
Warranty	3 years
