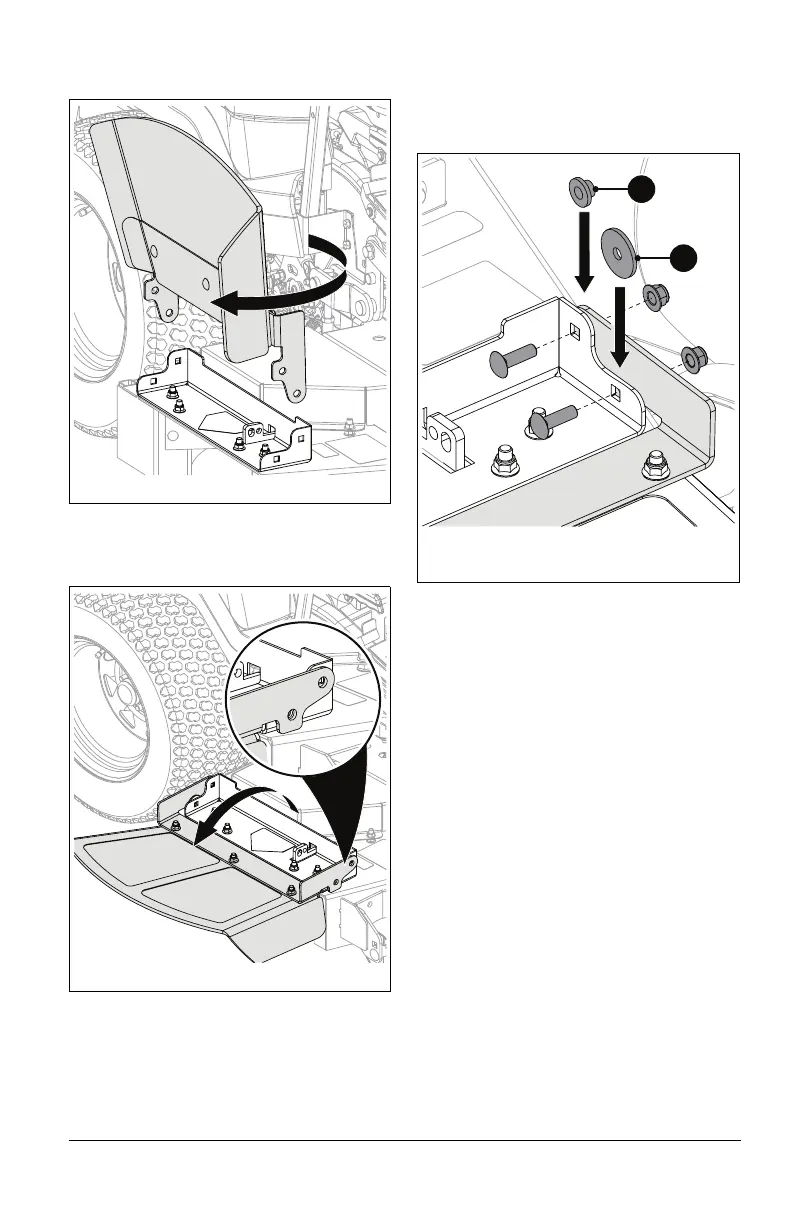

7. Rotate discharge chute 180 degrees. See
Figure 5.
8. Place the discharge chute in the
operating position. Ensure holes are
aligned.
See Figure 6.
9. Reinstall original hardware on each side
of discharge chute assembly. Install
spacer in upper hole and washer in lower
hole between mounting brackets.
See
Figure 7.
10. Remove two eccentric spacers, two
round head square neck bolts and two
locking nuts from hardware bag.
Figure 5
Figure 6
Figure 7
1. Washer
2. Spacer
1
2

Ariens Apex 52 Specifications

General

Engine Brand	Kawasaki
Engine Power	23 HP
Cutting Width	52 inches
Transmission	Hydrostatic
Deck Material	10-gauge steel
Number of Blades	3
Engine	Kawasaki FR691V
Engine Displacement	726 cc
Speed	8 mph forward/4 mph reverse
Cutting Height	1.5 - 4.5 inches
Warranty	3 years
