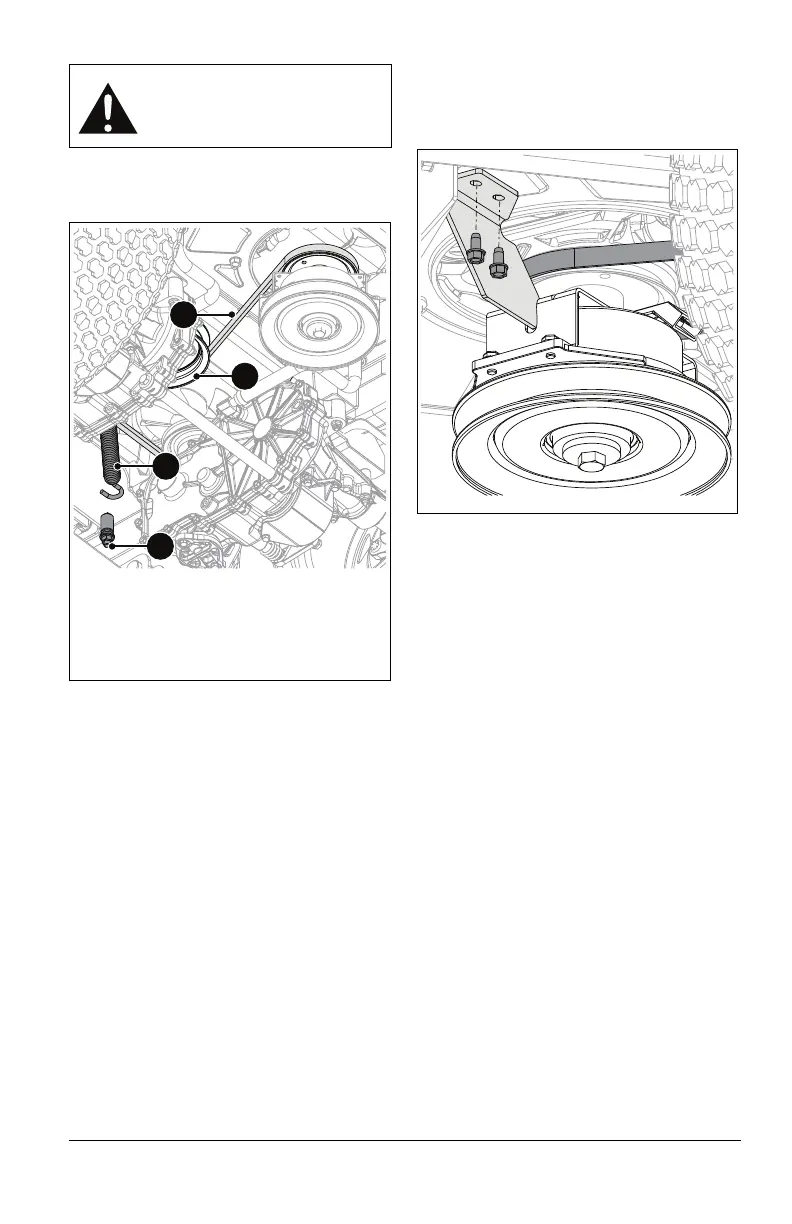

EN - 30
3. Under unit, slowly remove spring hook
from anchor bolt to release transaxle idler
tension.
See Figure 44.
See Figure 45.
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
NOTICE: DO NOT cut cable tie.
CAUTION: Use care when re-
leasing idler spring tension. Keep
body parts away from idlers
when performing this operation.
Figure 44
1. Spring
2. Anchor Bolt
3. Transaxle Idler
4. Transaxle Drive Belt
1
2
3
4
Figure 45

Other manuals for Ariens Apex 52

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ariens Apex 52 and is the answer not in the manual?

Ariens Apex 52 Specifications

General IconGeneral
Engine BrandKawasaki
Engine Power23 HP
Cutting Width52 inches
TransmissionHydrostatic
Deck Material10-gauge steel
Number of Blades3
EngineKawasaki FR691V
Engine Displacement726 cc
Speed8 mph forward/4 mph reverse
Cutting Height1.5 - 4.5 inches
Warranty3 years
