EN - 29
IMPORTANT: Make sure belt has tension and
is aligned in all pulleys.
Install PTO Belt
IMPORTANT: Mower drive belt MUST be
installed before PTO belt.
1. Install PTO belt around clutch sheave at
rear of unit.
See Figure 42.
2. Install PTO belt around top groove of split
pulley at deck center and around left
spindle pulley.
3. Align belt with idler pulleys.
4. Reinstall idler spring hook around anchor
bolt to apply tension to belt.
IMPORTANT: Make sure belt has tension and
is aligned in all pulleys.
See Figure 43.
5. Reinstall belt covers and secure with
original hardware.
REPLACE TRANSAXLE DRIVE
BELT
Remove Transaxle Drive Belt
1. Place unit in service position. See
Service Position on page 17.
2. Remove PTO belt from clutch. See
Remove PTO Belt on page 27.

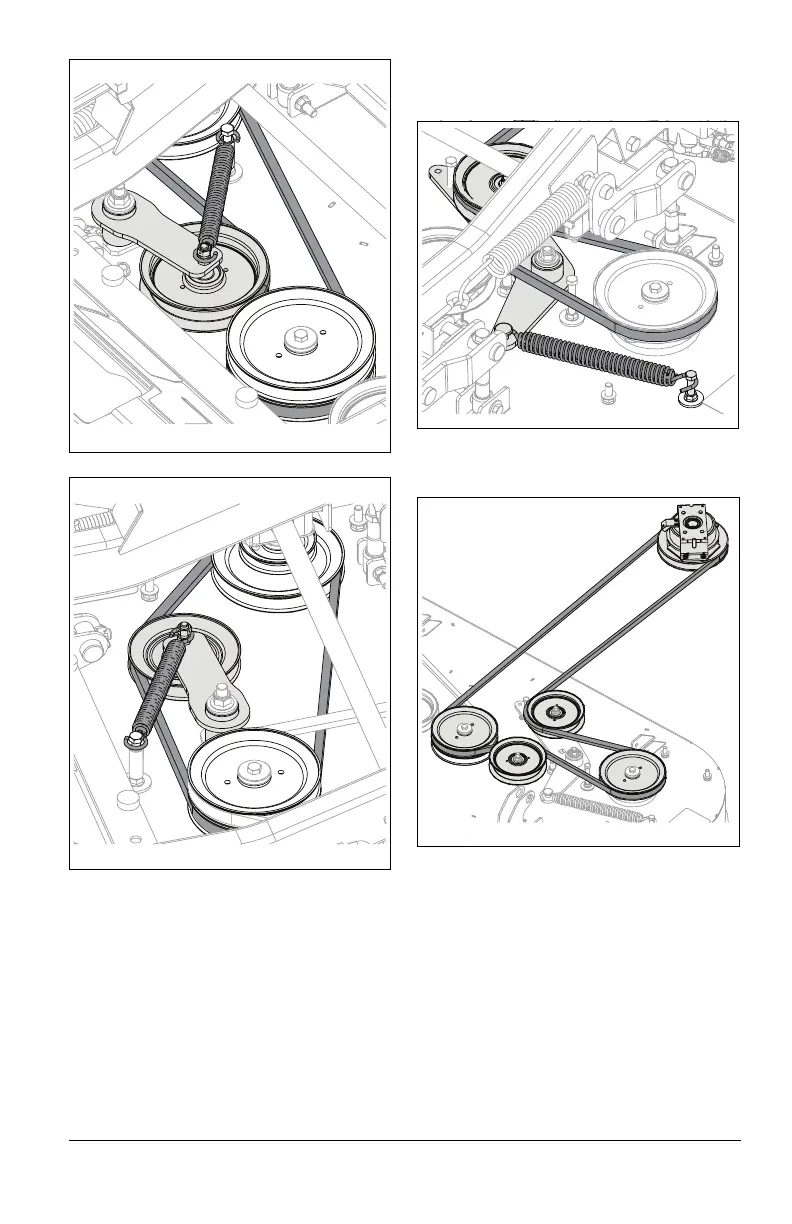

Figure 40
Model 991312
Figure 41
Model 991311
Figure 42
Figure 43

Other manuals for Ariens Apex 52

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ariens Apex 52 and is the answer not in the manual?

Ariens Apex 52 Specifications

General IconGeneral
Engine BrandKawasaki
Engine Power23 HP
Cutting Width52 inches
TransmissionHydrostatic
Deck Material10-gauge steel
Number of Blades3
EngineKawasaki FR691V
Engine Displacement726 cc
Speed8 mph forward/4 mph reverse
Cutting Height1.5 - 4.5 inches
Warranty3 years
