Page 23
Troubleshooting (Electrical)
If the Headlights fail to operate
CHECK:
p The bulbs.
p Fuse 4 has not blown. (Red 10amp fuse)
IF THIS IS NOT THE CASE CONTACT YOUR
TRACTOR DEALER.
If the electric deck lift fails to operate:
CHECK:
p
Turn the tractor off and on again. This will
reset the Deck Lift PCB which has an overload
protection system built in. If this becomes a
regular occurrence with no visible signs of
anything overloading the system, eg a branch,
then the Deck Lift System will require checking by
your dealer.
p Check fuse 6 has not blown. (Red 10amp fuse)
(Figs. 51b or 51c).
IF THIS IS NOT THE CASE CONTACT YOUR
TRACTOR DEALER.
If the Electric Sweeper Lift fails to
operate*
CHECK:
p Fuse 7 has not blown, (green 30amp fuse)
(Fig. 51c).
IF THIS IS NOT THE CASE CONTACT YOUR
TRACTOR DEALER.
If the Electric Sweeper Net Empty fails
to operate*
CHECK:
p Fuse 7 has not blown. (Green 30amp fuse) (Fig.
51c).
p The lead from the Tractor to the Sweeper has
not become disconnected or damaged.
IF THIS IS NOT THE CASE CONTACT YOUR
TRACTOR DEALER.
If the electric deck lift stops working
and the HE Circuits fails / engine runs
poorly or cuts out:
CHECK:
p Check fuse 5 has not blown, (red 10amp fuse)
(Figs. 51b or 51c).
IF THIS IS NOT THE CASE CONTACT YOUR
TRACTOR DEALER.

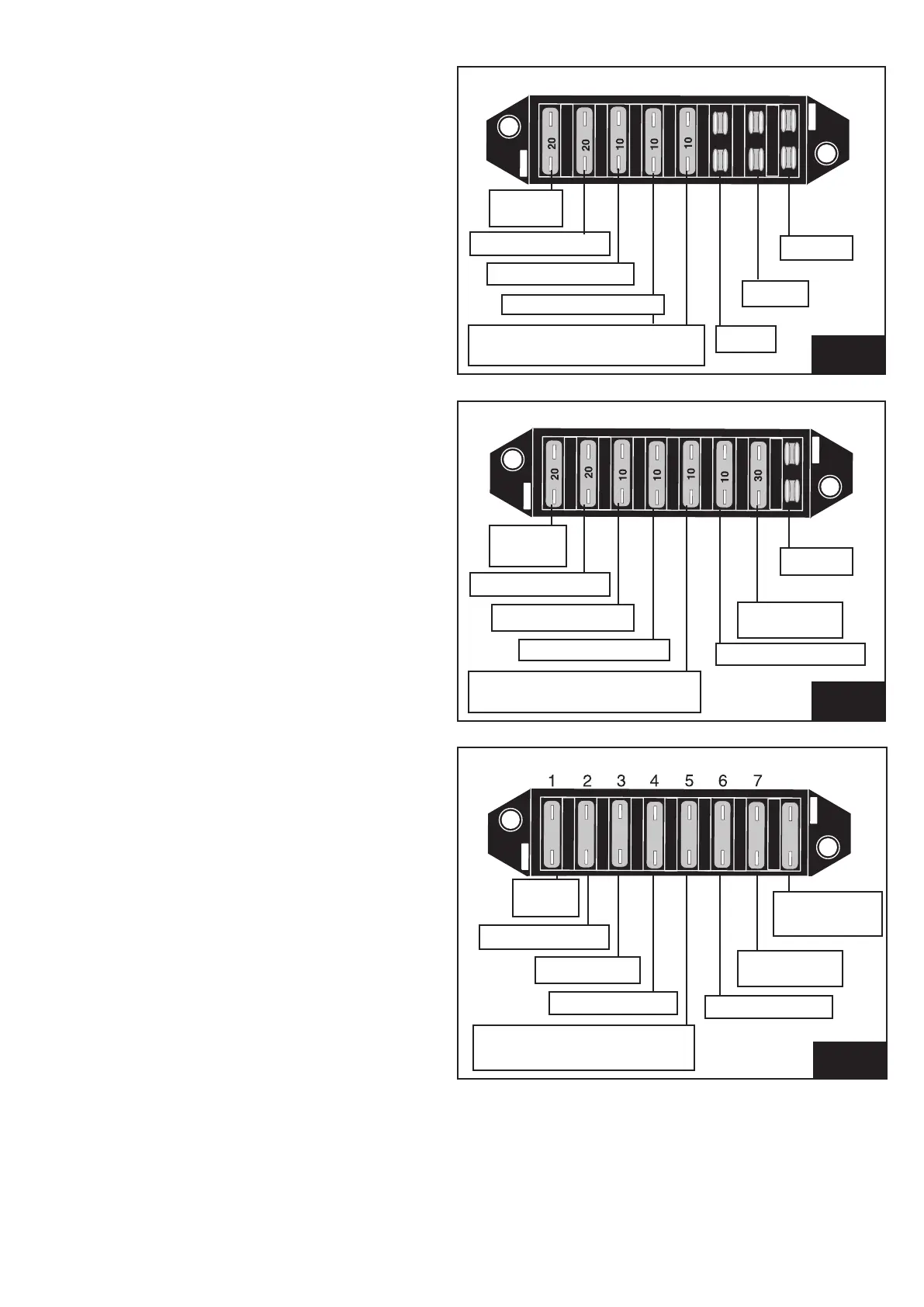

*PLEASE NOTE: Fuse 6 slot is empty on tractors fit-
ted with manual deck lift and Electric Sweeper
20 AMP
Charge
20 AMP Ignition
7.5 AMP Clutch
10 AMP Lights
10 AMP PTO Wire, Fuel Solenoid
Hold and Fuel Pump
5 AMP Relay
Control Feed
30 AMP Relay
Feeds
10 AMP Deck Lift
30
10
10
10
7.5
20
20
5
8
fig. 51c
20 AMP IGNITION
SPARE
SPARE
SPARE
20 AMP
CHARGE
Tractors with electric deck lift and PGC electric lift
Tractors with electric deck lift
Tractors with manual deck lift
20 AMP
CHARGE
fig. 51b
fig. 51a
10 AMP CLUTCH
10 AMP LIGHTS
10 AMP FUEL SOLENOID / PTO WIRE /
HE LOOM RELAY
10 AMP LIGHTS
10 AMP FUEL SOLENOID / PTO WIRE
/ HE LOOM RELAY
20 AMP IGNITION
10 AMP CLUTCH
SPARE
10 AMP Deck Lift
30 AMP Relay
Feeds
To Next Page
