Auxiliary Lift Switch (where fitted) (Fig. 15)
Raising the Auxiliary (Grass Collector) Lift is achieved
by pressing a switch (Fig. 15) on the dashboard – UP
to raise, DOWN to lower.
Net Empty Switch (where fitted) (Fig. 16)
Emptying the Powered Grass Collector is achieved
by pressing a switch (Fig. 16) on the dashboard – UP
to open, DOWN to close.
To engage the PTO drive, the PTO lever is lifted up
and out of its locator and then moved to the left and
released to nd its own height. To disengage the PTO
pull the lever up and to the right. Always have this
lever in the ‘disengaged’ position when it is not in
use. DO NOT PUT HANDS NEAR MOVING PULLEYS
AND BELTS.
To engage the PTO, push the lever down and to
the left and release lever upwards. The PTO lever
is pushed down and to the right into its locator to
disengage. Always have this lever in the ‘disengaged’
position when it is not in use.
DO NOT PUT HANDS NEAR MOVING PULLEYS
AND BELTS.
Lights (Fig. 18)
Pressing the rocker switch turns ON the headlights.
Turn the headlights OFF by pressing the rocker
switch again. The headlights will not operate without
the ignition switch turned on.

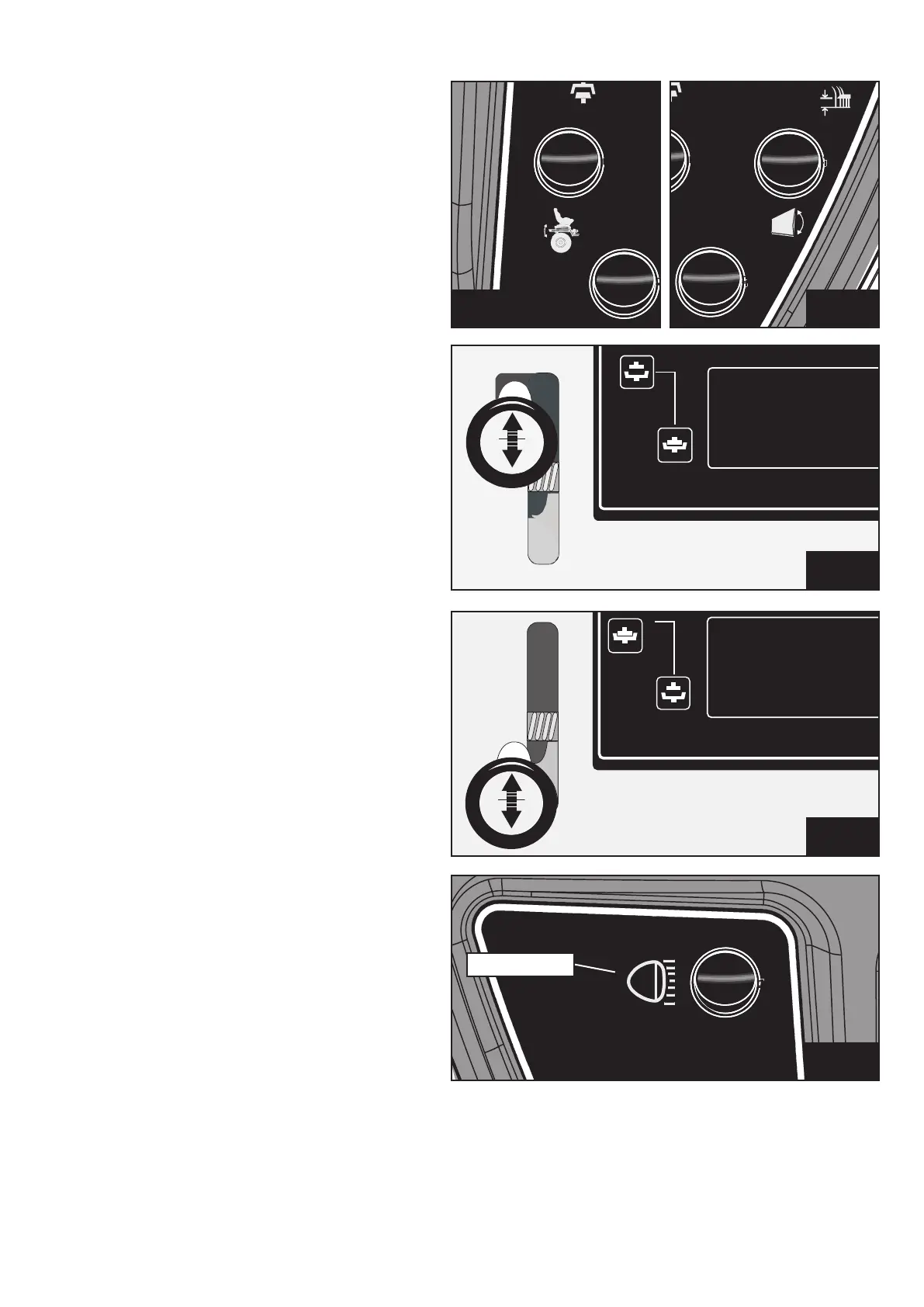

Light Switch
fig. 18
fig. 17a
fig. 17
fig. 16fig. 15
Auxiliary Lift Switch (where fitted) (Fig. 15)
Raising the Auxiliary (Grass Collector) Lift is achieved
by pressing a switch (Fig. 15) on the dashboard – UP
to raise, DOWN to lower.
Net Empty Switch (where fitted) (Fig. 16)
Emptying the Powered Grass Collector is achieved
by pressing a switch (Fig. 16) on the dashboard – UP
to open, DOWN to close.
Power Take-Off (Mini and C Series) (Fig. 17)
To engage the PTO drive, the PTO lever is lifted up
and out of its locator and then moved to the left and
released to nd its own height. To disengage the PTO
pull the lever up and to the right. Always have this
lever in the ‘disengaged’ position when it is not in
use. DO NOT PUT HANDS NEAR MOVING PULLEYS
AND BELTS.
Power Take-Off (A Series) (Fig. 17a)
To engage the PTO, push the lever down and to
the left and release lever upwards. The PTO lever
is pushed down and to the right into its locator to
disengage. Always have this lever in the ‘disengaged’
position when it is not in use.
DO NOT PUT HANDS NEAR MOVING PULLEYS
AND BELTS.
Lights (Fig. 18)
Pressing the rocker switch turns ON the headlights.
Turn the headlights OFF by pressing the rocker
switch again. The headlights will not operate without
the ignition switch turned on.
