581 51 60-24 (21548106%) Rev. 2 10.30.12
Printed in the U.S.A.
ENGLISH

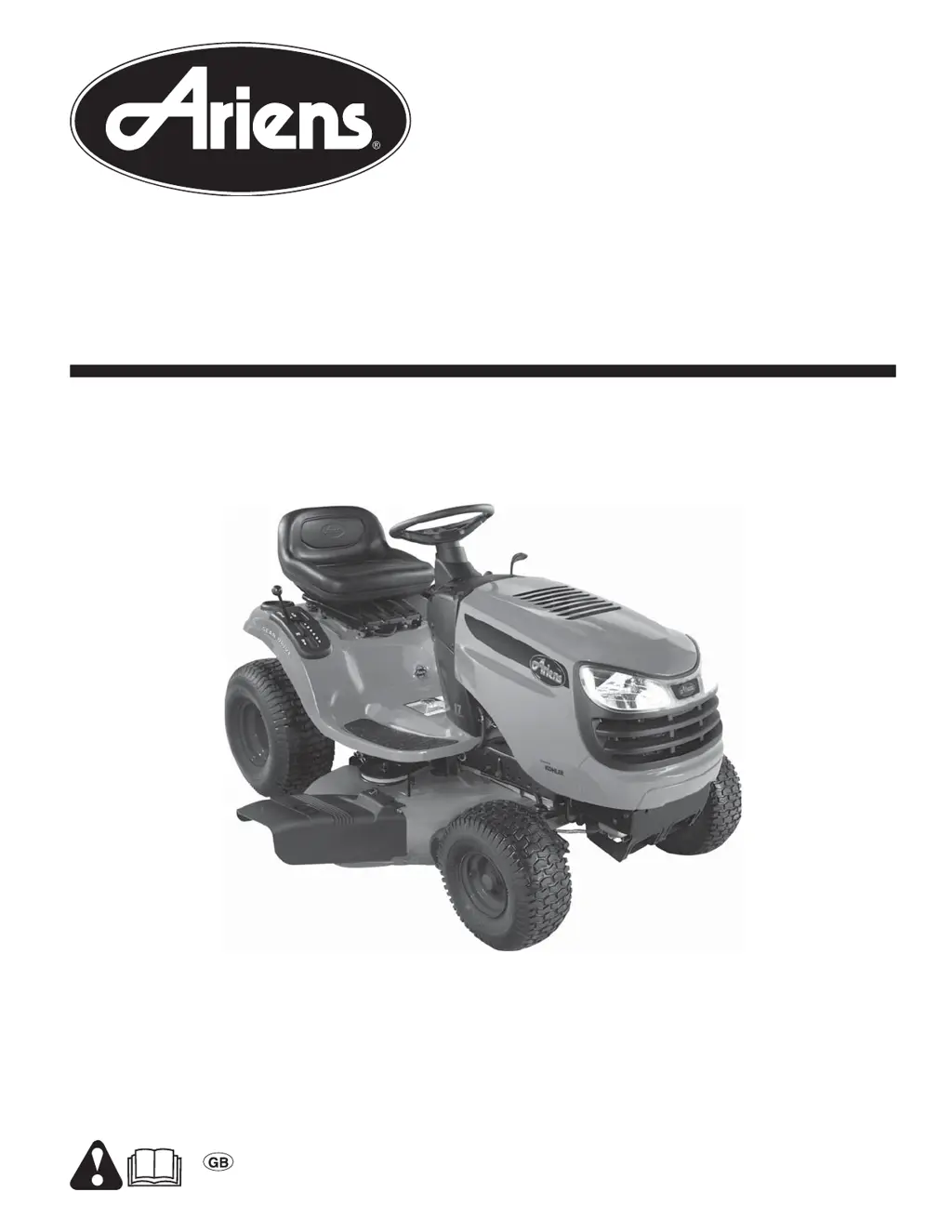

Operator Manual
GEAR TRACTOR
Models
936064 42" Gear Tractor
Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl
ether) is acceptable for use in this machine. The use of any gasoline exceeding 10%
ethanol (E10) or 10% MTBE will void the product warranty.

Questions and Answers

  • D
    Dawn CarterAug 20, 2025
    Why my Ariens Lawn Mower will not start?
    • E
      Edward TrujilloAug 20, 2025
      If your Ariens Lawn Mower won't start, several factors could be the cause. First, ensure the fuel tank is full. If that's not the issue, refer to the “TO START ENGINE” section in the Operation section to ensure the engine is properly choked. If the engine is flooded, wait a few minutes before trying again. Other potential causes include a bad spark plug (replace it), a dirty air filter (clean or replace it), a dirty fuel filter (replace it), or water in the fuel (empty the tank and carburetor, refill with fresh gasoline, and replace the fuel filter). Also, check for loose or damaged wiring. For carburetor or engine valve adjustments, refer to the appropriate sections or contact a service center.
  • B
    Bobby LarsonAug 25, 2025
    How to fix hard start on Ariens Lawn Tractor 17/42?
    • B
      Bryan FryeAug 25, 2025
      If your Ariens Lawn Mower is hard to start, consider these possible causes: a dirty air filter (clean or replace it), a bad spark plug (replace it), a weak or dead battery (recharge or replace it), a dirty fuel filter (replace it), or stale or dirty fuel (empty the tank and refill with fresh, clean gasoline). Also, check for loose or damaged wiring. For carburetor or engine valve adjustments, refer to the appropriate sections or contact a service center.
  • S
    Samuel CarsonAug 26, 2025
    What to do if Ariens Lawn Mower engine will not turn over?
    • J
      Jeremy RiceAug 26, 2025
      If the engine of your Ariens Lawn Mower won't turn over, make sure the clutch/brake pedal is depressed and the attachment clutch is disengaged. A weak or dead battery could also be the problem, so recharge or replace it. Check for a blown fuse and replace it if necessary. Clean corroded battery terminals and inspect for loose or damaged wiring. Also, check or replace the ignition switch if it's faulty. Finally, inspect or replace the solenoid or starter if they are faulty. For faulty operator presence switches, contact a service center.
  • D
    Dana BrownAug 28, 2025
    Why Ariens Lawn Tractor 17/42 Lawn Mower engine clicks but will not start?
    • A
      Amanda LangAug 28, 2025
      If your Ariens Lawn Mower engine clicks but won't start, the issue might be a weak or dead battery; recharge or replace it. Corroded battery terminals could also be the problem, so clean them. Check for loose or damaged wiring, and inspect or replace the solenoid or starter if they are faulty.
  • S
    Steven DixonAug 30, 2025
    What to do if mower blades will not rotate on Ariens Lawn Tractor 17/42?
    • M
      Mary LopezAug 30, 2025
      If the mower blades of your Ariens Lawn Mower won't rotate, there might be an obstruction in the clutch mechanism; remove it. A worn or damaged mower drive belt could also be the cause, so replace it. Additionally, a frozen idler pulley or blade mandrel could be the problem, so replace them if necessary.
  • F
    floresdavidSep 1, 2025
    What to do if battery of Ariens Lawn Tractor 17/42 Lawn Mower will not charge?
    • J
      Jennifer HernandezSep 1, 2025
      If the battery of your Ariens Lawn Mower won't charge, it could be due to bad battery cells, so replace the battery. Check and clean all cable connections to ensure they are secure. If your mower is equipped with a regulator, a faulty one could be the issue, so replace it. Additionally, a faulty alternator could be the cause, so replace it as well.
  • S
    Scott HesterSep 3, 2025
    Why Ariens Lawn Mower has loss of drive?
    • J
      jacksontamaraSep 3, 2025
      If your Ariens Lawn Mower experiences a loss of drive, check for debris on the steering plate. If the motion drive belt is worn, damaged, or broken, replace it. Also, inspect for a missing axle key at the rear wheel and install one if necessary.
  • C
    catherine81Sep 5, 2025
    Why Ariens Lawn Mower has poor grass discharge?
    • D
      Debra GoodwinSep 5, 2025
      If your Ariens Lawn Mower has poor grass discharge, several factors could be the cause. Ensure the engine speed isn't too slow by placing the throttle control in the “FAST” position, and avoid traveling too fast by shifting to a slower speed. Wet grass can also be a factor, so allow the grass to dry before mowing. Check if the mower deck is level and ensure proper tire air pressure. Inspect the blade (replace if worn, bent, or loose, and tighten the blade bolt). Clear any buildup of grass, leaves, and trash under the mower. If the mower drive belt is worn, replace it. Make sure the blades are installed with the sharp edge down and are the correct blades for your mower. Lastly, check for clogged mower deck vent holes and clean around the mandrels to open them.
  • D
    Diane MartinezSep 7, 2025
    Why Ariens Lawn Tractor 17/42 has excessive vibration?
    • M
      Mark PadillaSep 7, 2025
      If your Ariens Lawn Mower is vibrating excessively, check for a worn, bent, or loose blade, and replace the blade or tighten the blade bolt. A bent blade mandrel could also be the cause, so replace it if necessary. Additionally, tighten any loose parts and replace any damaged parts.
  • D
    Devin RileySep 9, 2025
    How to fix poor and uneven cut of Ariens Lawn Tractor 17/42?
    • S
      Sarah RichardsSep 9, 2025
      If your Ariens Lawn Mower is leaving an uneven cut, it could be due to a worn, bent, or loose blade; replace the blade and tighten the blade bolt. The mower deck might not be level, so level it. Also, check for buildup of grass, leaves, or trash under the mower and clean it. A bent blade mandrel could also be the cause, so replace it if necessary. Finally, check for clogged mower deck vent holes and clean around the mandrels to open them.

Summary

SAFETY RULES

GENERAL OPERATION

Basic guidelines for operating the tractor safely, covering controls and general use.

SLOPE OPERATION

Precautions and techniques for operating the tractor safely on inclines and slopes.

SAFE HANDLING OF GASOLINE

Essential safety measures and precautions for handling gasoline.

ASSEMBLY

OPERATION

KNOW YOUR TRACTOR

Familiarization with tractor controls, their locations, and functions.

HOW TO USE YOUR TRACTOR

Guides on operating the tractor, including setting the parking brake and stopping.

TO ADJUST MOWER CUTTING HEIGHT

How to set the desired grass cutting height using the attachment lift lever.

TO OPERATE ON HILLS

Safety guidelines and procedures for operating the tractor on slopes.

REVERSE OPERATION SYSTEM (ROS)

Explanation and safe usage of the Reverse Operation System.

BEFORE STARTING THE ENGINE

Essential checks and procedures before starting the tractor's engine.

TO START ENGINE

Detailed instructions for starting the engine in different weather conditions.

MAINTENANCE

MAINTENANCE SCHEDULE

A schedule outlining routine maintenance tasks and their recommended intervals.

OPERATOR PRESENCE SYSTEM AND REVERSE OPERATION SYSTEM (ROS)

Verifying the function of the tractor's safety systems.

SERVICE AND ADJUSTMENTS

TO REMOVE MOWER

Steps to detach the mower deck from the tractor.

TO INSTALL MOWER

Steps to attach the mower deck to the tractor.

TO LEVEL MOWER

Procedures for leveling the mower deck for optimal cutting results.

TO REPLACE MOWER BLADE DRIVE BELT

Steps for replacing the mower's blade drive belt.

TO REPLACE MOTION DRIVE BELT

Steps for replacing the tractor's motion drive belt.

TO START ENGINE WITH A WEAK BATTERY

Procedure for jump-starting the tractor with a weak battery.

STORAGE

TRACTOR

Procedures for preparing the tractor for storage.

ENGINE

Preparing the engine's fuel system, oil, and cylinders for storage.

TROUBLESHOOTING

Will not start

Diagnosing and correcting starting problems.

Hard to start

Identifying causes and solutions for difficult starting.

Engine will not turn over

Troubleshooting when the engine fails to crank.

Engine clicks but will not start

Diagnosing issues when the engine only clicks.

Loss of power

Addressing causes of reduced engine power.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
