EN - 2

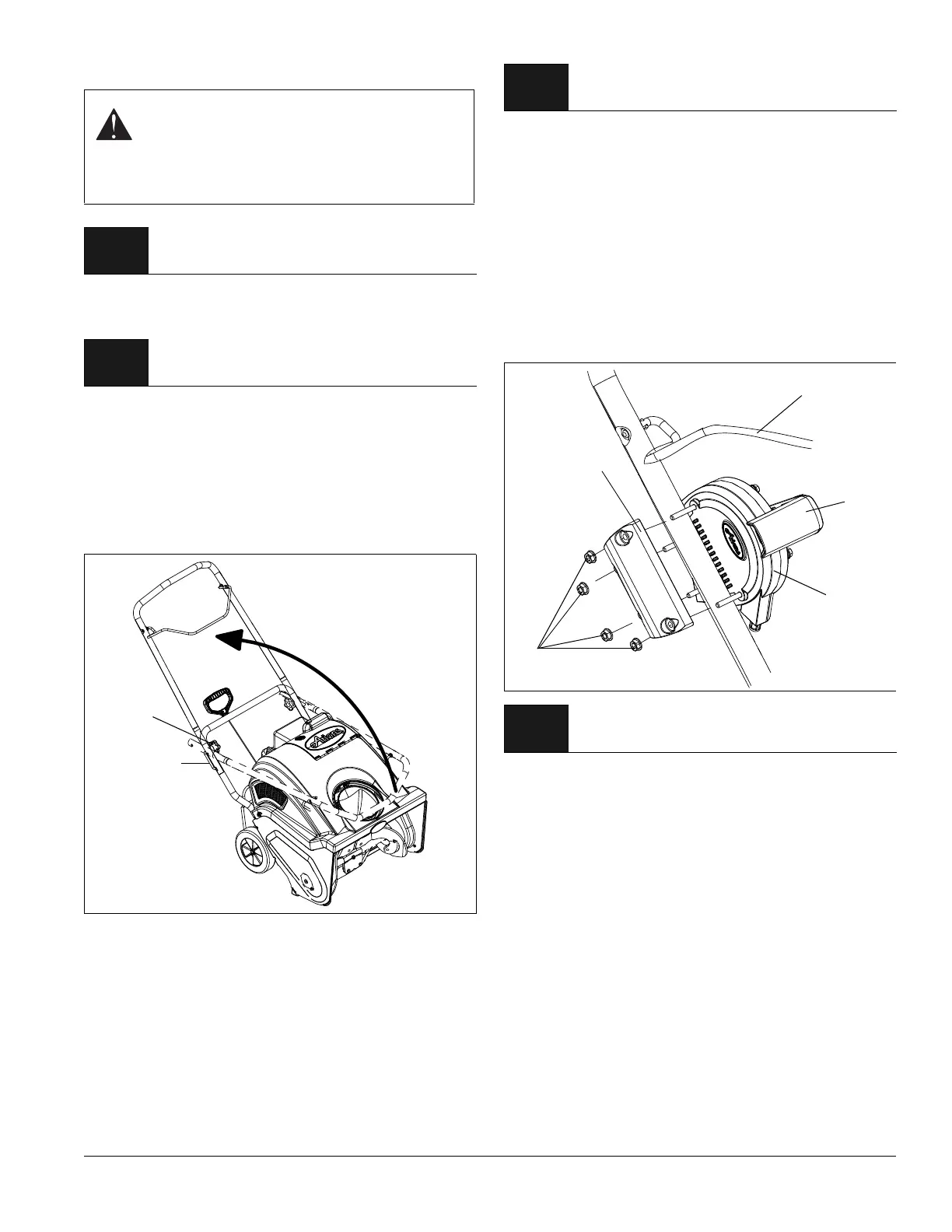

ASSEMBLY
Open box and remove all parts. Verify there is no
damage or missing parts.
Assemble handlebar.
a. Loosen knobs (# 17) on each side of handlebar
and rotate handlebar to operating position.
b. Insert lower end of pivot bolt (# 16) into
handlebar holes.
c. Ensure auger control cable is not pinched and
tighten knobs. Do not overtighen.
Attach remote discharge chute handle. (Model 938033)
a. Remove flange nuts and bracket from remote
chute handle assembly (# 4).
b. Position remote chute handle assembly on
handlebar.
c. Place bracket on handlebar and secure with
flange nuts. Do not overtighten.
d. Move remote chute handle completely forward
and rearward to ensure proper operation.
e. Place remote chute handle halfway between full
forward and full rearward.
Attach discharge chute.
a. Place water guard ring (# 18) on discharge
chute.
b. Position discharge chute (# 8) onto ring.
c. Position chute handle (# 6) on top of discharge
chute. (Models 938030, 031, 032, 034)
d. Ensure holes in all pieces align and secure with
three screws (# 19). Do not overtighten.
e. Move remote chute handle (model 938033) or
chute handle (models 938030, 031, 032, 034) to
ensure proper operation of discharge chute.
WARNING: AVOID INJURY. Read and
understand the entire Safety section in the
Owner’s Manual before proceeding.
DO NOT start engine until all assembly steps
have been completed.
1.
2.
3.
4.
4
Bracket
Flange Nuts
Auger Control Bar
Remote
Chute
Handle
To Next Page
