DRIVE BELT REPLACEMENT
(
911175, 179)
To Remove Drive Belt:
1. Disconnect spark plug wire.
2. Move cable adjuster to loosen wheel
drive cable.
3. Disconnect the drive cable spring from
the transmission bracket. See Figure 17.
4. Remove blade and blade adapter from
the crankshaft.
5. Remove drive pulley guide, belt channel
guides and engine pulley with key.
6. Pull belt over end of crankshaft to allow
belt to slide out through belt channel.
7. Rotate transmission backward to
remove hardware, then adjust to loosen
belt.
8. Remove belt and pull through the belt
channel. See Figure 18.

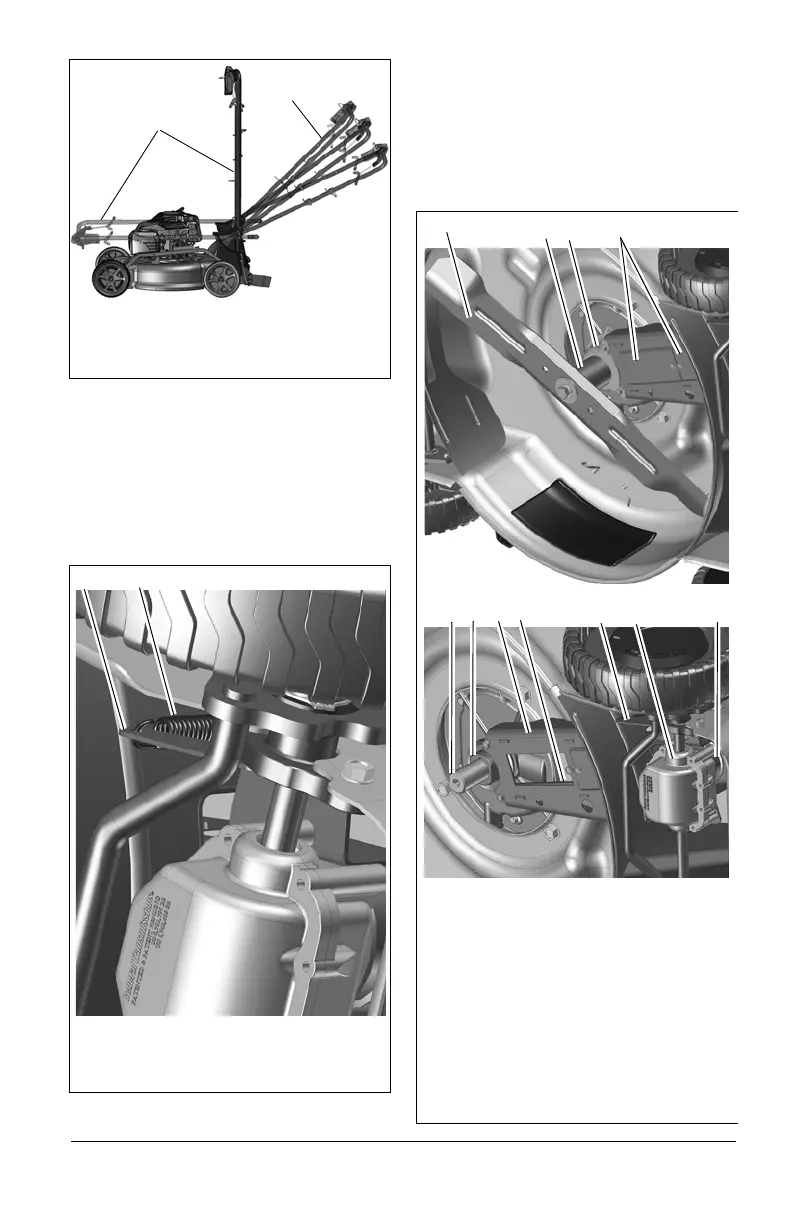

Figure 16
1. Operating Positions
2. Storage Positions
1
2
Figure 17
1. Drive Cable Spring
2. Transmission Bracket
1
2
Figure 18
9
2
43
1. Blade
2. Blade Adapter
3. Drive Pulley Guide
4. Belt Channel Guides
5. Engine Pulley with Key
6. Transmission
7. Transmission Bracket
8. Belt
9. Belt Channel
10. Transmission Pulley
11. Crankshaft
7
6
8
10
5
11
1
