Ariens Sno-Thro Compact Series Service Guide

EN – 8

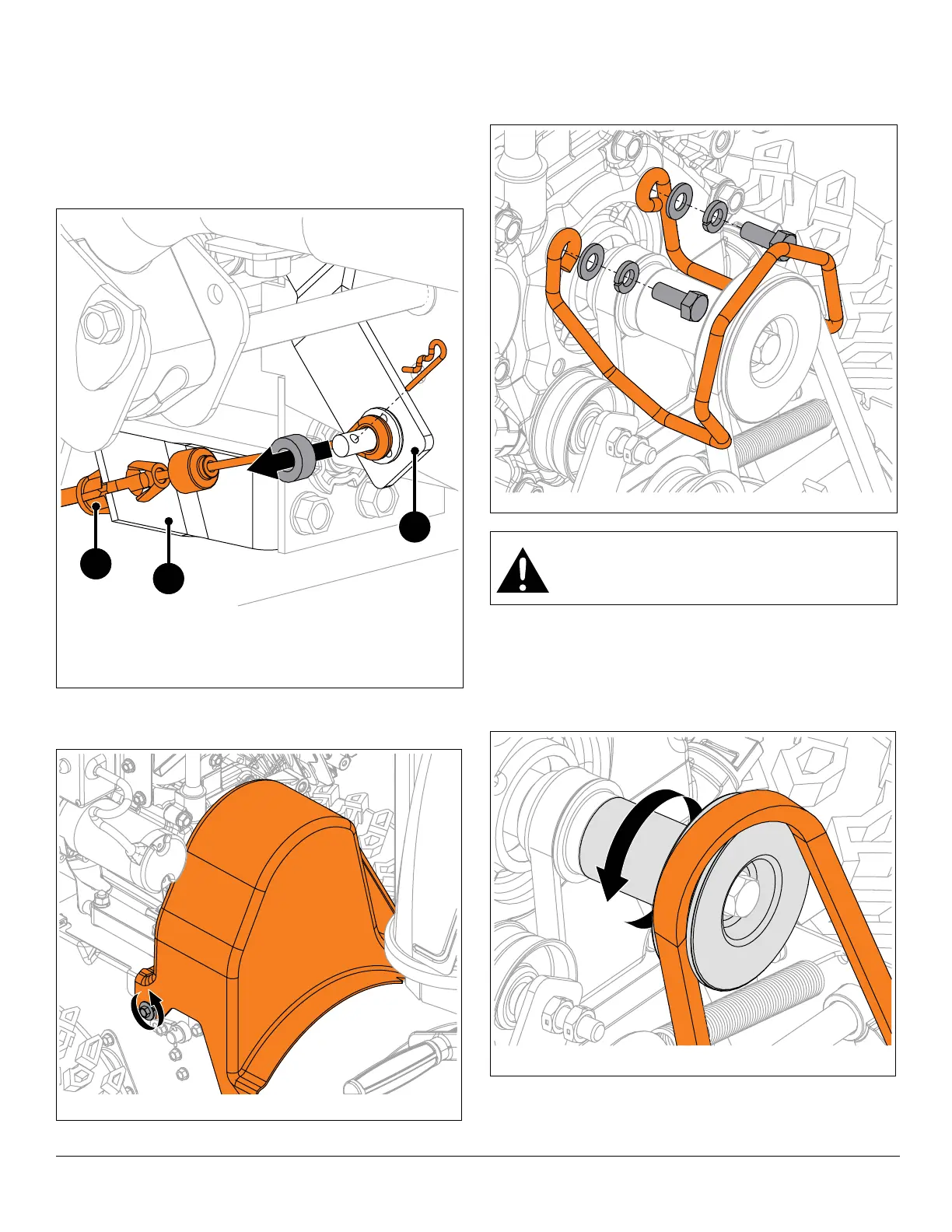

See Figure 4.
6. Remove hairpin, sleeve bushing and cable eyelet from
deflector arm under dash panel.
IMPORTANT: Reinstall sleeve bushing and hairpin so parts
are not misplaced.
7. With a pliers, squeeze tabs on cable anchor and
remove from deflector bracket.
8. Loosen, but DO NOT remove hardware retaining belt
cover and remove belt cover. See Figure 5.
See Figure 6.
9. Remove hardware retaining belt finger to engine and
remove belt finger.
See Figure 7.
10. Remove attachment drive belt from attachment
sheave.
To assist belt removal, slowly pull recoil starter handle
while gently guiding belt out of attachment sheave.
Figure 4
1. Deflector Arm
2. Cable Anchor
3. Deflector Bracket
1
2
3
Figure 5
WARNING: AVOID INJURY. Attachment sheave
edges are sharp. Wear thick gloves to remove
belt from attachment sheave.
Figure 6
Figure 7
