ARIETE 9020 - Page 35

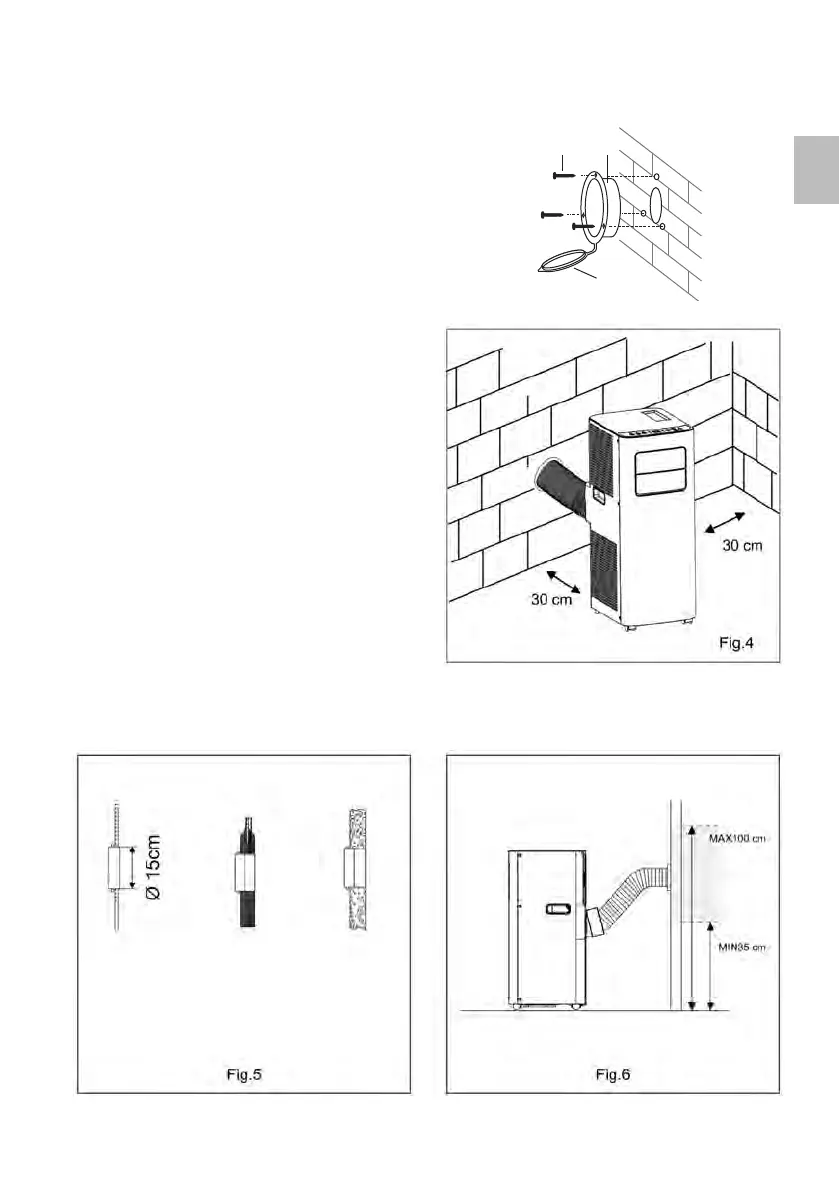

AIR CONDITIONING WITH SEMI PERMANENTLY INSTALLATION
lfrequired,yourappliancecanalsobeinstalledsemipermanently(Fig.4)
1 Fixture
2 Cap
3 Screw x3
Proceedasfollows:
• Drill a hole in an outside wall or
through a window pane. Ensure the
MIN/MAXdimensionsforthehole
size and its position are adhered to.
(Fig.5and6)
• Fittheangeaccessoryxturepro-
vided in the hole.
• Stillrepeatstep1&2intheformer
installationdescription,butnotclick
thehoseassemblytotheexhausted
nozzle(#4).
• lnsertanotherend of the hose as-
sembly to the xture previously t
onthewallashownin(Fig.6)
When the hose is not in use, place the
cap on connector to cover the hole.
NOTE: when installing the air condi-
tioner semi permanently, to maintain
the balance of air pressure between
indoors and outdoors always leave an
internal door slightly open.
1
2
3
in the window
pane
in the wooden
kickboardofa
french window
in the wall:
you are
recommended
to insulate the
section of wall
usingsuitable
insulation
35
EN
