15Tensor
2

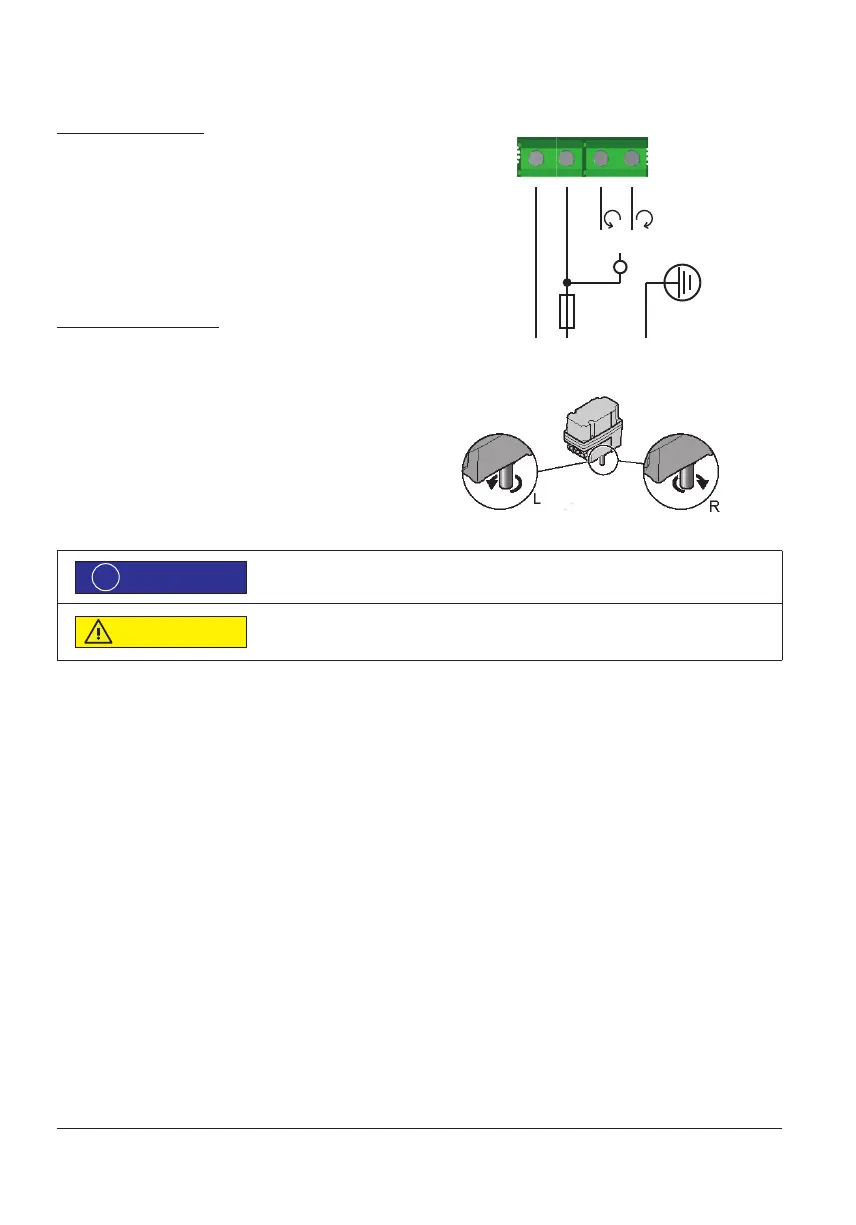

4.5.2 Wiring diagram
Connection 85…265 V AC
N Neutral conductor
L Phase / Supply 85 ... 265 V AC
2 Control connection > left-turning (CCW)
3 Control connection > right-turning (CW)
Connect the ground wire to the inside of the housing.
Connection 19.2…28.8 V DC
– GND
+ Connection 19.2…28.8 V DC
2 Control connection > left-turning (CCW)
3 Control connection > right-turning (CW)
The control terminals "2/3" are only active if the "Signal In"-Option "Terminal 2/3" has
been chosen in the Expert Menu.
The drive must be permanently energized, otherwise the holding torque is not available!
-/N +/L 2 3
2 3
L R
-/N +/L
PE
