Aristel DV-22 - D4 SLCC (SLT Station Card)

System Installation Manual
Digital Key Telephone System
22
DV
4.6 D4SLCC (SLT Station Card)
2
1

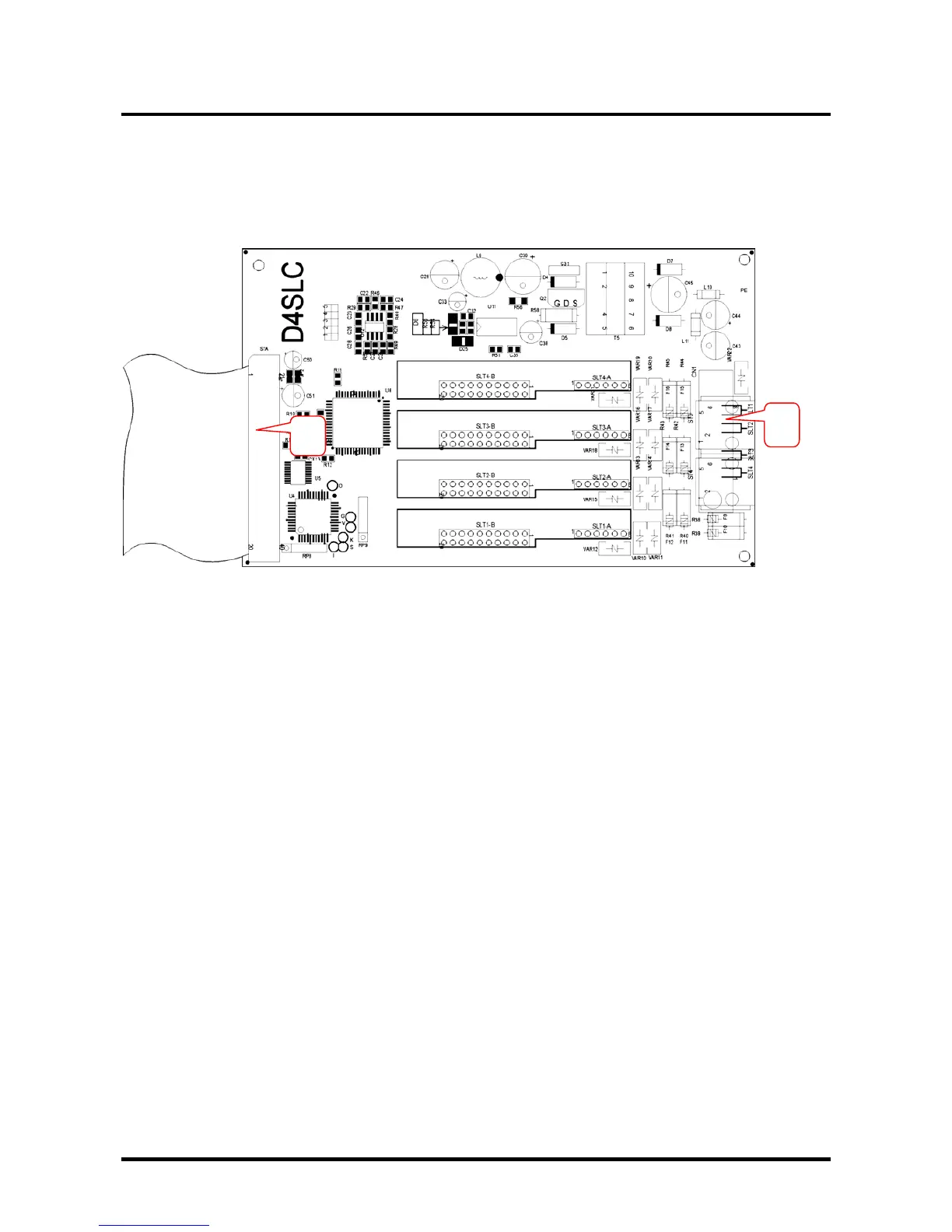

Figure 6: DV-22 SLT Station Card Unit (D4SLCC)
1. For D4MBUB connection.
2. Quick-Connector Module for Single Line phone connection（Use 2-wire T/R）,
including 2 sets of 6-wire RJ-12 connector.
NOTE：D4SLCC (SLT Station Card) consists of 4 SLT Station Ports.
D4SLCD (SLT Station Card) consists of 1 SLT Station Port.
