Aristel DV-22 - Station Installation

System Installation Manual
Digital Key Telephone System
22
DV
5.3 STATION INSTALLATION
Aristel Networks Pty Ltd
24
RJ12 Socket
6 pin RJ12 Connector
pins 3 & 4 for Line 1, pins 1 & 6 for Line 2
4 pin RJ12 Connector
p
ins 3 & 4 for Line 1,
p
ins 2 & 5 for Line 2
WARNING: Do not use 4 wire telephone line
cord to connect phones straight into RJ12
sockets - use 2 wire line cord

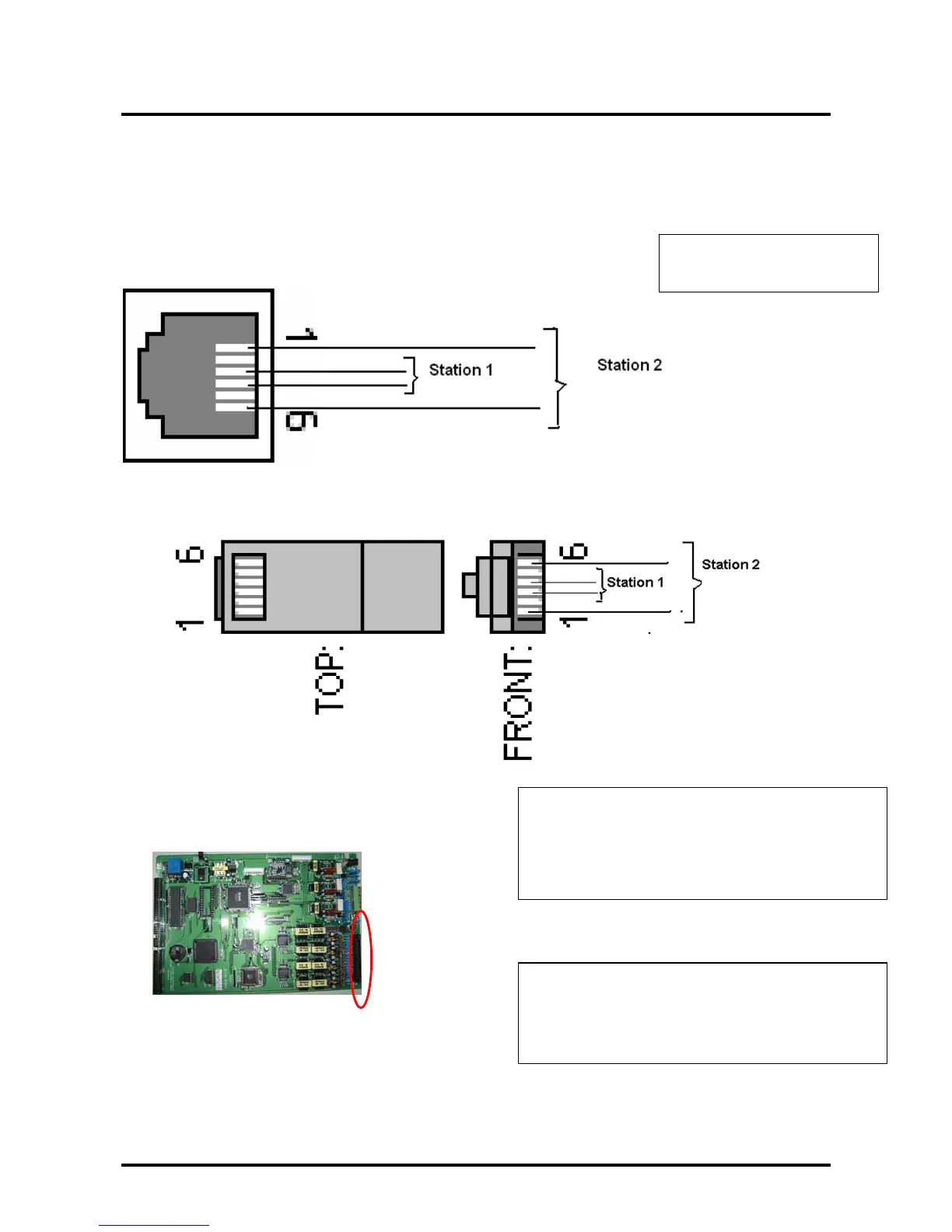

Figure 12：Station Installation
