Ariston 80 L Technical Manual

16

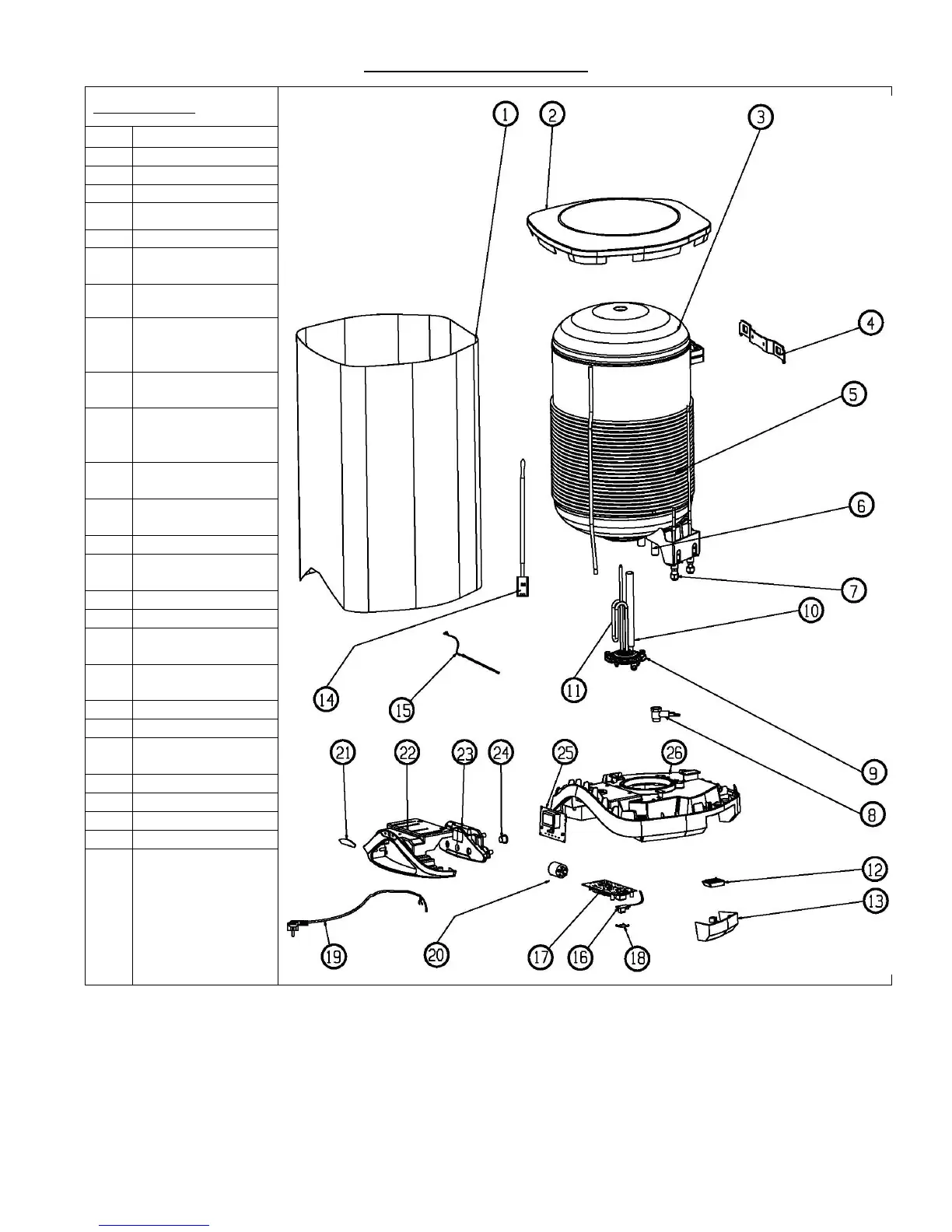

INTERNAL UNIT COMPONENTS
80-100-110 litres
1 External metal sheet
2 Top plastic cover
3 Water tank
4 Wall bracket
5 Condenser
6 Water pipes (IN-OUT)
7
Gas connections (IN-
OUT)
8 Safety valve 8 bar
9
Flange with gasket
and Pro-tech
titanium anode
10
Magnesium anode
(start up anode)
11
Heating element
(electrical resistance
1200 W)
12
Wall installation
spacer
13
Gas connection
plastic cover
14 Hot water sensor
15
Heating element
zone sensors
16 Serial comm. Board
17 Mainboard
18
Serial comm. Board
plastic cover
19
Power cable with
plug
20 Anti noise filter
21 Brand label
22
Interface plastic
support
23 Interface cover
24 knob
25 Display board
26 Bottom plastic cover

Ariston 80 L Specifications

General

Power Source	Electric
Pressure Rating	8 bar
Capacity	80 L
Type	Storage Water Heater
Warranty	2 years
Thermostat	Adjustable
