postavljanje
installation
Spajanje plina
Uređaj je dizajniran za korištenje plinova koji pripadaju
kategorijama kako je prikazano u donjoj tablici:
ZEMLJA
MODEL
KATEGORIJA
FAST EVO X ONT 11 EU
FAST EVO X ONT 14 EU
II2H3+
Osigurajte, sukladno naljepnicama na uređaju i
podacima na pločici uređaja, da je uređaj u previđenoj
zemlji, te da kategorija plina za koju je uređaj dizajniran
odgovara dostupnim kategorijama u zemlji primjene.
Cijevi za opskrbu plinom moraju se izraditi i mjeriti u
skladu s posebnim zakonskim zahtjevima i u skladu s
maksimalnom snagom uređaja. Također, provjerite je li
ventil za zatvaranje pravilne veličine i je li pravilno
spojen.
Prije izvođenja instalacije preporučuje se temeljito
čišćenje cijevi za plin radi uklanjanja ostataka koji bi
mogli spriječiti pravilan rad uređaja.
Provjerite odgovara li isporučeni plin tipu plina za koji je
napravljen uređaj (pogledajte podatkovnu pločicu koja se
nalazi na samom uređaju).
Također je važno provjeriti je li pritisak plina (metana ili
LPG) koji koristite za napajanje uređaja prikladan, jer ako
je nedostatan, snaga generatora može biti smanjena, što
uzrokuje neugodnosti korisniku.
Spajanje vode
Ilustracija prikazuje priključke za vodu i plin uređaja.
Provjerite da maksimalni tlak vode ne prelazi 10 bara;
Ako da, potrebno je instalirati ventil za smanjenje tlaka.
Osigurajte da minimalni pritisak ne pada ispod 0,2
bara.

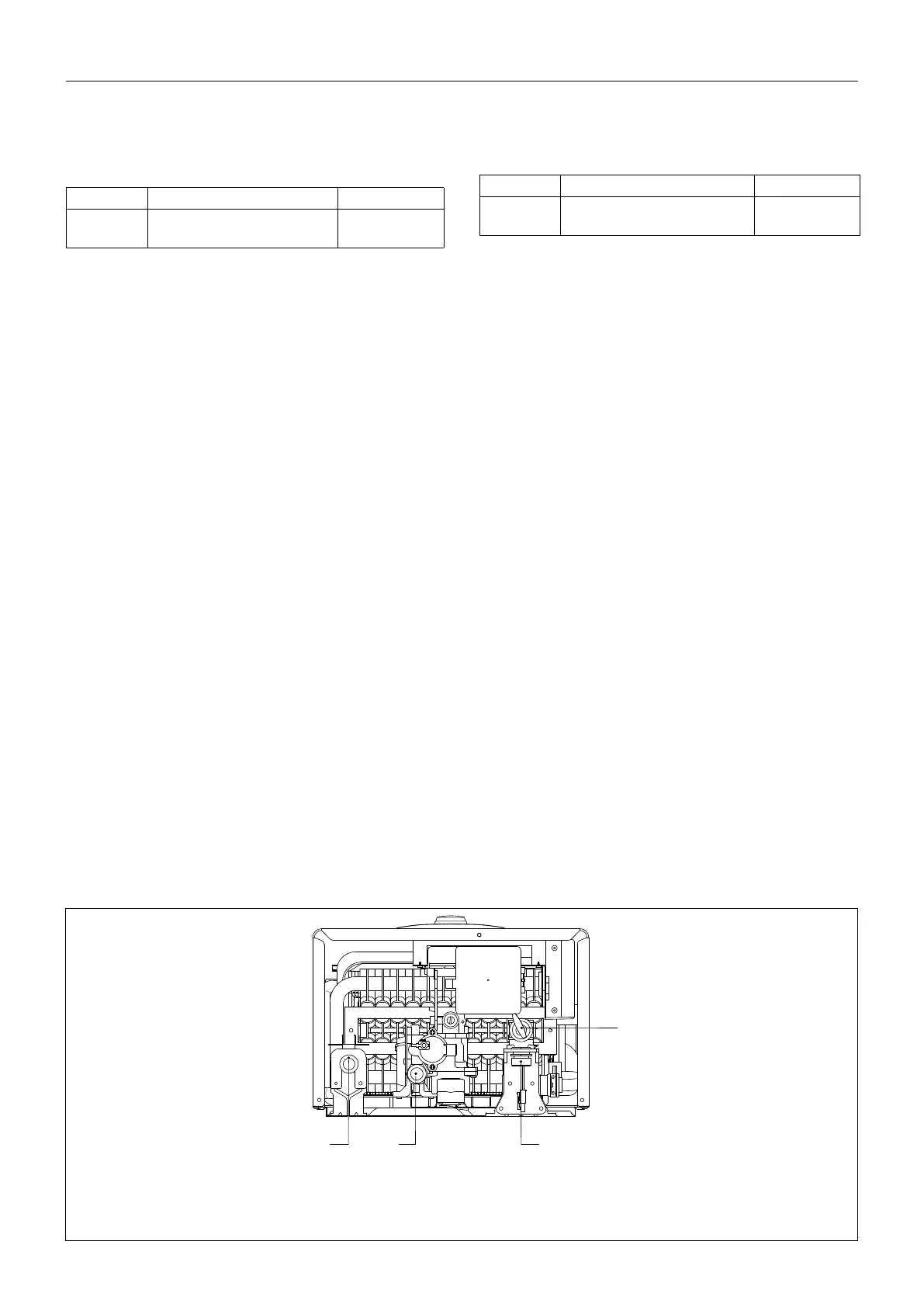

Prikaz hidrauličnih spojeva
A. Izlaz tople vode 1/2”
B. Ulaz plina 1/2”
C. Ulaz hladne vode 1/2”
G. Filtar ulaza hladne vode
A B C
G
Gas connection
The appliance was designed to use gases belonging to
the categories as shown in the following table.
COUNTRY MODEL CATEGORIES
FAST EVO X ONT 11 EU
FAST EVO X ONT 14 EU
II2H3+
Make sure, using the labels on the packaging and the
data plate on the appliance itself, that the appliance is in
the correct country and that the gas category for which
the appliance was designed corresponds to one of the
categories available in the country where it will be used.
The gas supply piping must be created and measured
out in compliance with specic legal requirements and in
accordance with the maximum power of the appliance;
you should also make sure that the shut-off valve is the
right size and that it is connected correctly.
Before carrying out the installation, it is recommended
that the fuel pipes are cleaned thoroughly in order to
remove any residues which could prevent the appliance
from operating correctly.
Check that the supplied gas corresponds to the type of
gas for which the appliance was designed (see the data
plate located on the appliance itself).
It is also important to check that the pressure of the gas
(methane or LPG) you will be using to feed the appliance
is suitable, because if it is insufcient the power of the
generator may be reduced, causing inconvenience for
the user.
Water connection
The illustration shows the connections for the water and
gas attachments of the appliance.
Check that the maximum water mains pressure does
not exceed 10 bar; if it does, a pressure reducing valve
must be installed.
Ensure that the minimum pressure is not lower
than 0,2 bar.
View of the hydraulic Connections
A. Hot water outlet 1/2”
B. Ingresso Gas 1/2”
C. Cold water inlet1/2”
G. Cold water inlet lter
