Connection
First check the mains electricity supply available (number
of phases - voltage - maximum power necessary) to
ensure these are compatible with the requirements of the
Ariston appliance to be connected.
Ariston ovens can adapt to the following electrical systems:
You can connect your oven to the system by means of a
terminal board.
Please refer to the table above for the minimal cable
sections and the calibration of the protective elements
according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact opening
of 3 mm - should be installed between the appliance and
the mains.
We recommend you use a power supply cable which is
long enough to allow you to take the oven out of its recess
in the event of maintenance operations (only use HAR -
H 05 - RRF quality cables fitted with a plug conforming to
the regulations in force in the country where the appliance
is fitted).
The plug must be accessible at all times.
Unplug the appliance before all operations, even when
replacing the oven lamp.
Using the appliance without correct earthing is highly
dangerous.
Electrical connection
Electrical connections
Voltage
Frequency
Fuse
Section
FR-AT-BE-DE-GP-ES-IE-IL-IS-IT-DK
LU-RE-FI-GB-GR-PT-SE-MA-NZ-NL
230 V-1+N ~ 50 Hz
CY-MT-AU-NZ-KW
240 V-1+N ~ 50 Hz
16 A
1,5 mm²
FR-BE-NO
230 V-2 ~ 50 Hz
16 A
1,5 mm²
This appliance conforms with the following European
Community directives:
DBT 73/23 EEC modified by 93/68/EEC directive
CEM 89/336/EEC modified by 92/31/EEC and 93/68/EEC
directives
Inner dimensions of the oven:
width 43.5 cm
depth 40.0 cm
height 32.0 cm
Inner volume of the oven:
56 litres
Voltage and frequency of power supply:
230V~50Hz : 2800 W
240V~50Hz : 3050 W
Important: After connecting the appliance to the flexible
cable, tighten all the screws on the terminal board.

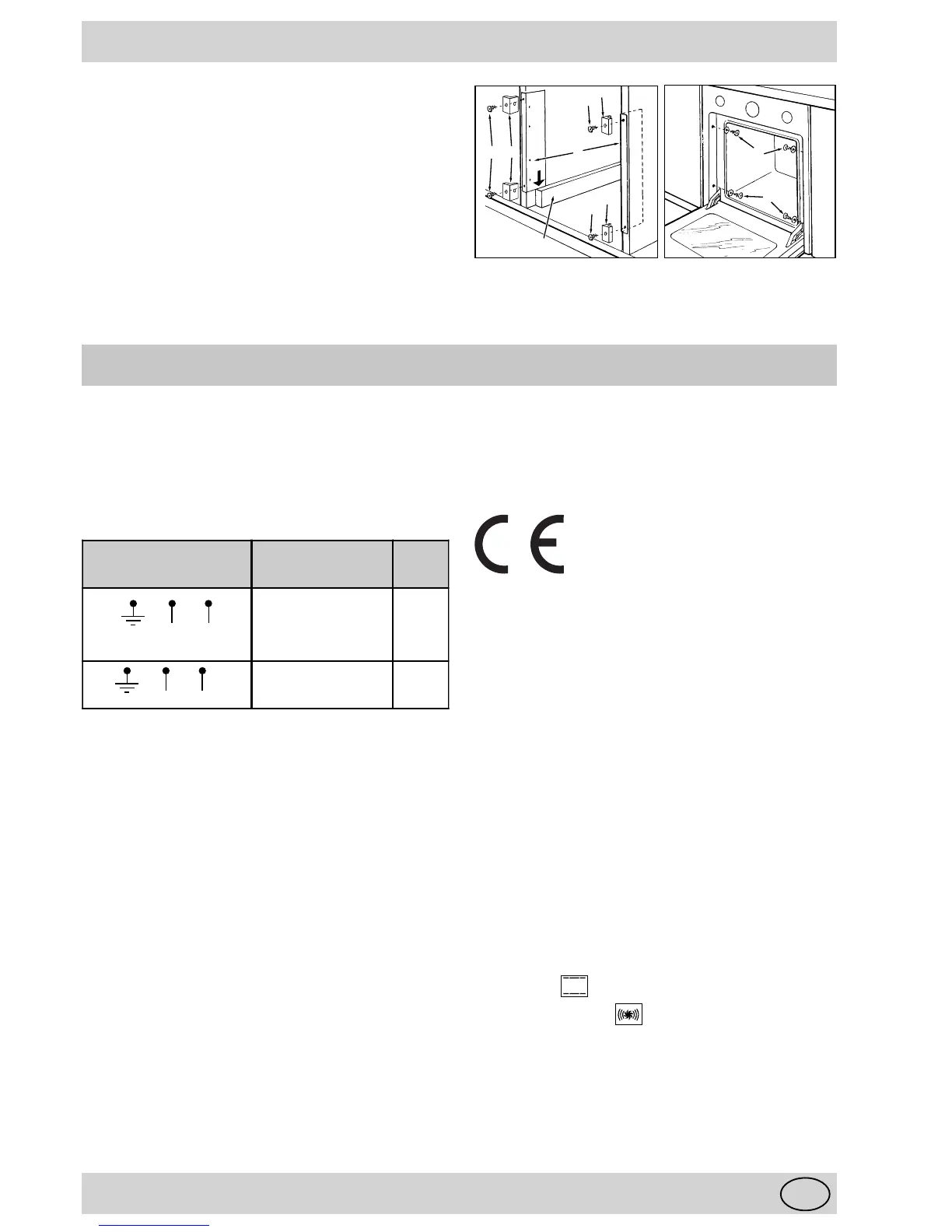

Fastening the oven to the cabinet (only on models
FC...)
1. Place brackets "A" up against the oven support "B".
2. Place the tabs "C" up against brackets "A". In particular,
if the cabinet side panel:
• is 16 mm thick: mount the tab so that the number 16 it
features is facing you;
• is 18 mm thick: mount the tab so that the part without
any wording is facing you;
• is 20 mm thick: do not mount the tab.
3. Fasten the brackets and tabs on the oven cabinet side
panel using screws "D".
4. Fasten the oven to the cabinet using the screws and
plastic washers "E".
Energy Label
Energy Label Directive 2002/40/CE of electric ovens. Norm
EN 50304.
Energy consumption (based on standard load) :
Conventional
Forced air convection
LN
L1L2
