Ariston GENUS PREMIUM EVO HP 150

overview
5
Control panel - Display
24/01/2011 12:25
44°C 40°C
1
2
3
6
5
4
7
12
10
11
9
8

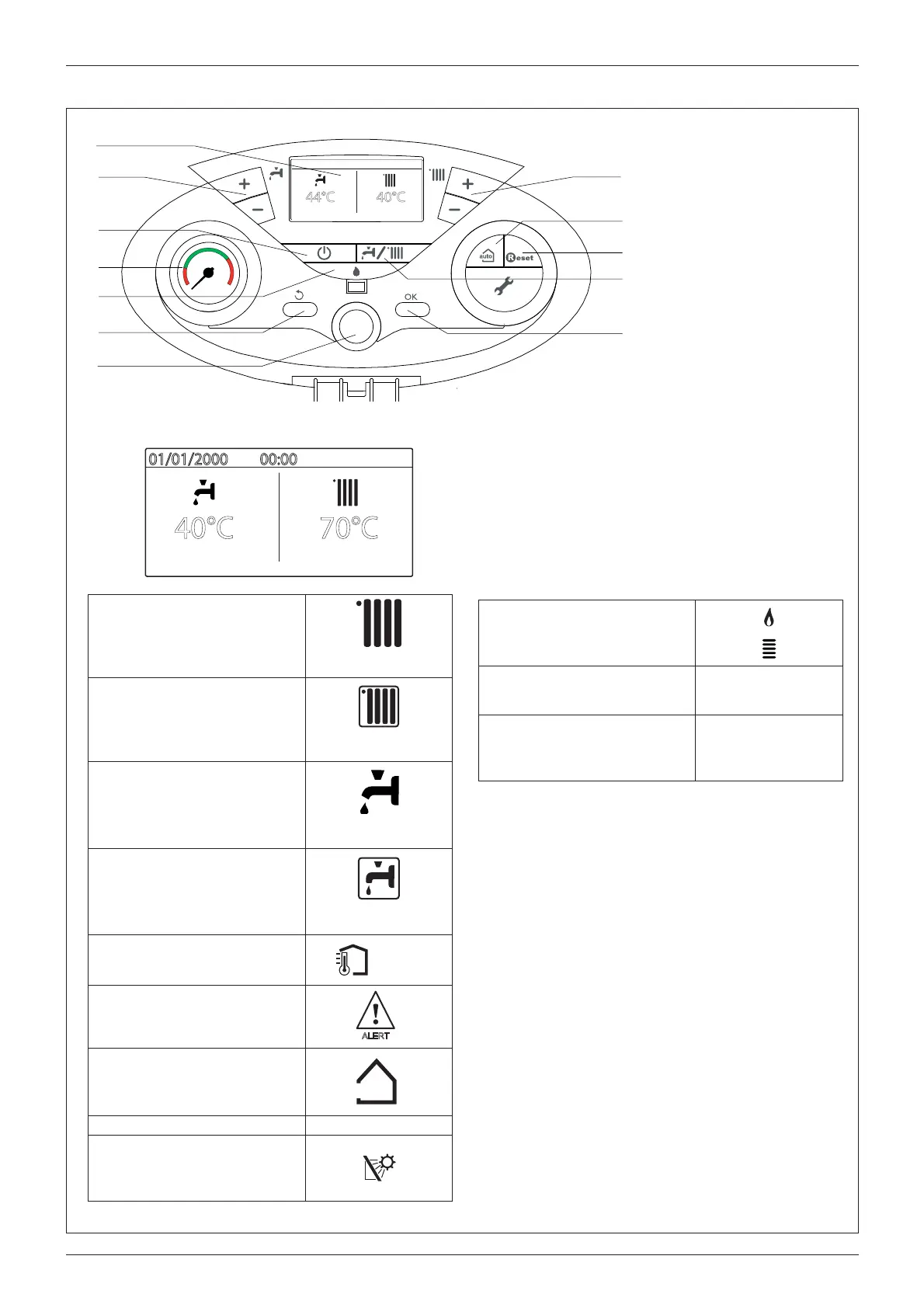

Legend:
1. Display
2. Domestic Hot Water
adjustment button +/-
3. ON/OFF button
4. Pressure gauge
5. Flame detected Blue LED
5. Esc button (Back)
6. “encoder” programming
knob
7. Ok button programming key
9. MODE button
(Operation mode selection
summer/winter)
10. RESET button
11. Auto button (To activate
Thermoregulation)
12. Heating temperature
adjustument button +/-
01/01/2000 00:00
40°C 70°C
Heating operation set
C.H. set temperature
XX °C
Heating operation active
C.H. set temperature
XX °C
D.H.W. operation set
D.H.W. set temperature
(active with indirect cylinder
connected)
XX °C
D.H.W. operation active
D.H.W. set temperature
(active with indirect cylinder
connected)
XX °C
External temperature (°C)
(only with external sensor connected)
XX °C
Error wsignals
The display show the code and
description
ALERT
AUTO function activated
auto
Hot Water Comfort activated COMFORT
Solar temperature probe connected
(option)
(set display: boiler complete - see user’s
menù)
Flame detected with indication of
power used
(set display: boiler complete - see user’s
menù)
Digital pressure gauge
(set display: boiler complete - see user’s
menù)
1.3 bar
Text displaying operation and
informations
(set display: boiler complete - see user’s
menù)
Central Heating
