Ariston GENUS PREMIUM EVO HP 65

commissioning
25
If the recorded values do not comply with those indicated in the
table, adjust accordingly as indicated below.
- Adjust the gas valve pressure regulator using a suitable slotted
screwdriver: turn clockwise to decrease the recorded CO2 value
and anti-clockwise to increase the value (the screws require
slight turning as they are very sensitive);
- Wait a few seconds until the CO2 stabilises then check the value
and repeat the procedure, if necessary.
Once the calibration procedure is completed, analyse the CO2
values at minimum power.
Maximum gas  ow combustion analysis
Activate the cleaning function at the maximum heating power or
the maximum domestic hot water power with a corresponding
heating request.
Select the Chimney function by pressing the
RESET button for 10 seconds.
WARNING! When the cleaning function is activated, the
temperature of the water coming out of the boiler may be more
than 65°C.
The display will visualise
the Chimney Function
active at the maximum
heating pressure.
Turn the encoder to
select the maximum
D.H.W. power.
Wait for the boiler to stabilise before carrying out the combustion
analyses. Check the CO2 value according to the table below.
Important: do not remove silencer (if present)
N.B.: when the casing is open, the CO2 value drops by 0,3%.

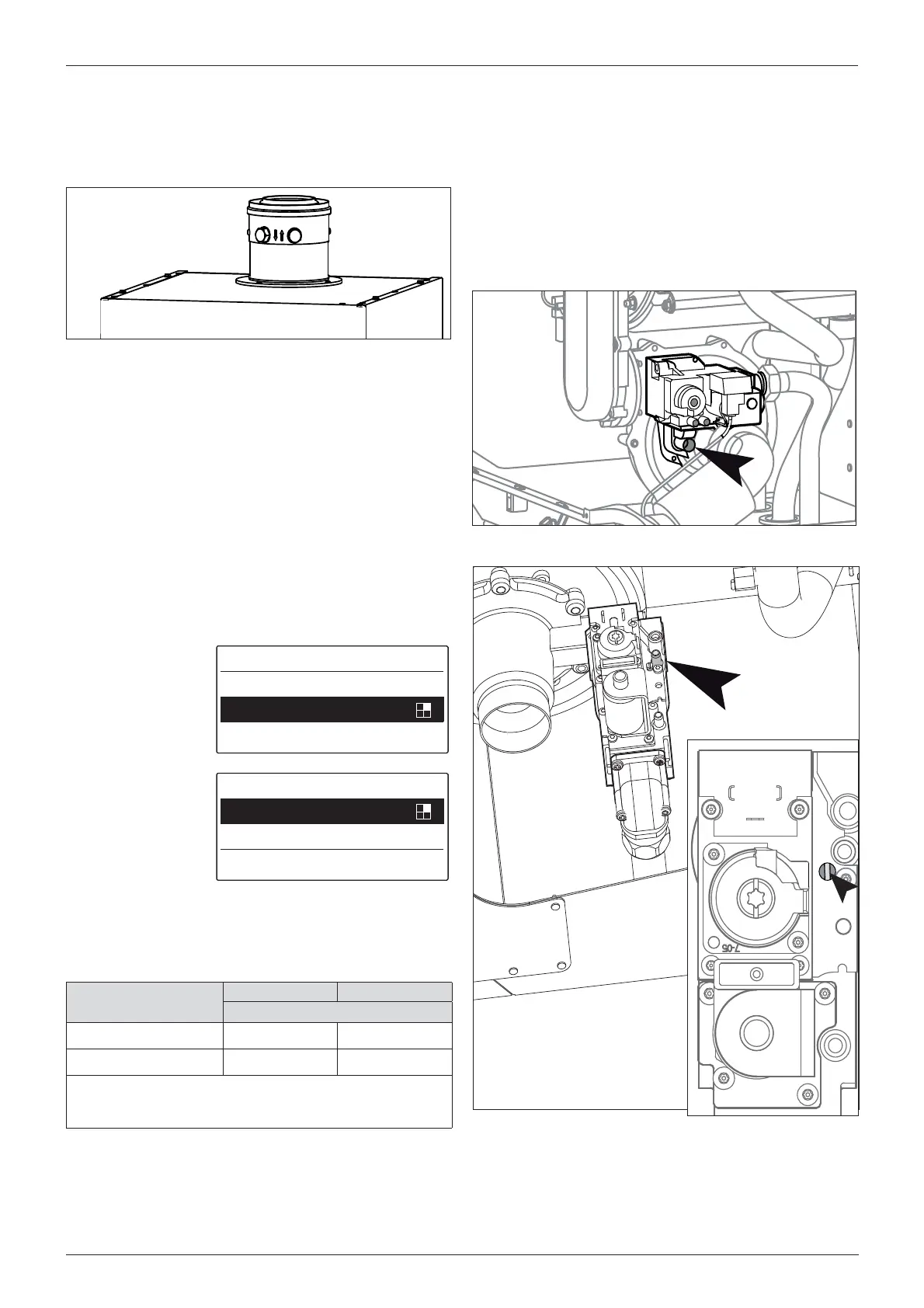

Cleaning function and combustion analysis
The boiler has two pressure taps to measure the combustion gas
temperature, the combustive air and the concentrations of O2 and
CO2 on the outside of the  ue gas header.
Said taps can be accessed by unscrewing the two plugs.
Checking the gas setting
To carry out analyses of combustion, the cleaning function must
be activated.
CO
2
MAX MIN
CO
2
(%)
G20
9,0 ± 0,2 8,4 ± 0,2
G31 9,8± 0,2 9,2 ± 0,2
Requirement:
always a minimum di erence of 0,6% CO
2
between MAX and
MIN
Max Power DHW
Min Power
Chimney active
Max power CH
Min
Chimney active
Max power CH
Max power DHW
GENUS PREMIUM EVO HP 45/65/85/100
GENUS PREMIUM EVO HP 115/150
1
1
1
