Ariston PH 930MST Installation And Use Manual

21
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50,37 MJ/kg
*** Butane P.C.S. = 49,47 MJ/kg
Naturale P.C.S. = 37,78 MJ/m
3
(1) Only for appliances with security device (ref. F).
PH 940M / PH 940MS
R
S
S
A
PH 941M / PH 941MS
R
S
S
A
PH 941MSTV
RR
A
S
TC
PH 930...
TC
S
TC
PH 941MSTB
TC
S
RR
A
PH 960MST
RR
S
A
TC
SP
PH 940MST
TC
S
RR
A
This appliance conforms with the following European
Economic Community directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent
modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.

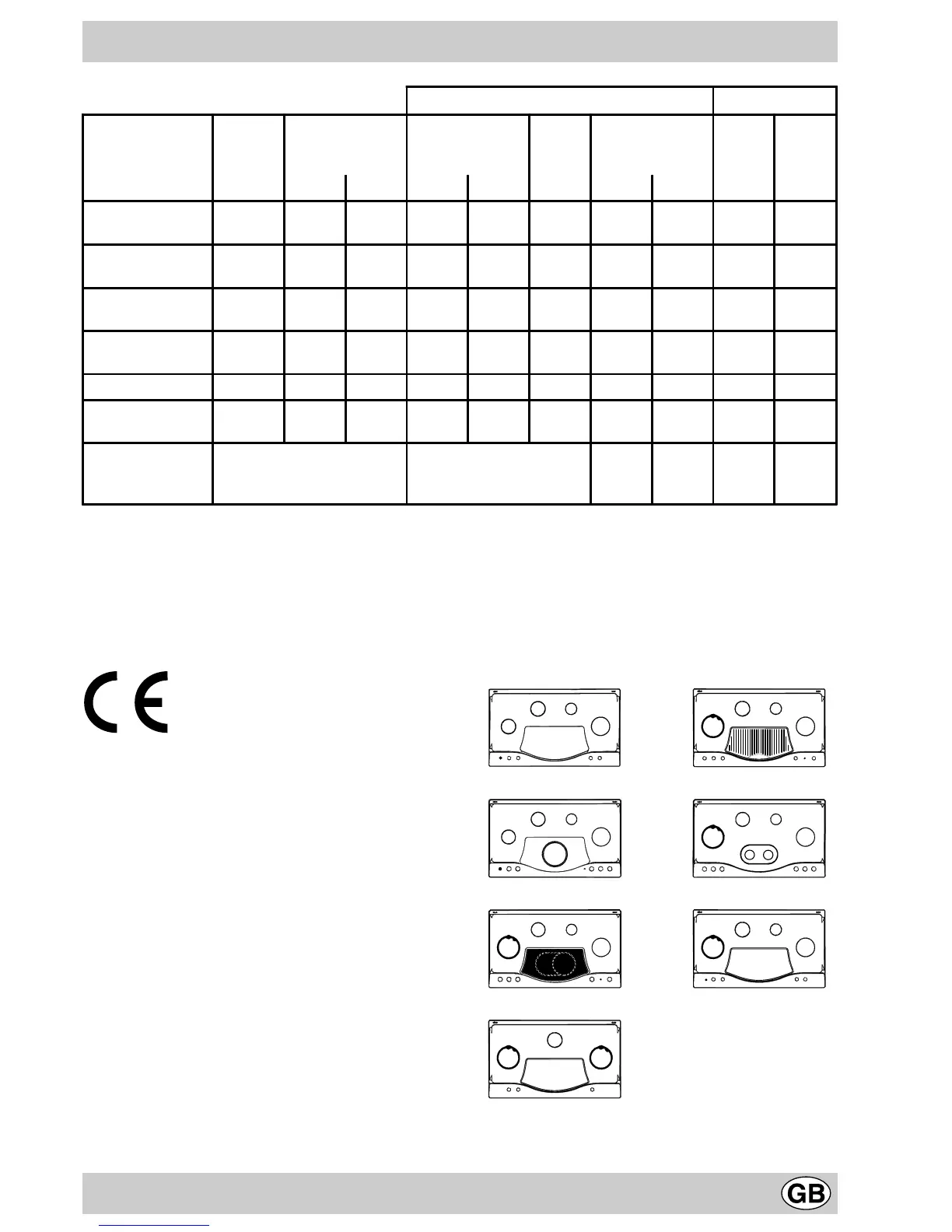

Table 1 Liquid gas Natural gas
Burner Diameter
(mm)
Thermal power
kW (p.c.s.*)
By-pass
1/100
(mm)
Nozzle
1/100
Flow*
g/h
Nozzler
1/100
Flow*
l/h
Nom. Red. (1) (mm) *** ** (mm)
Fast
(Large) (R)
100 3.00 0.7 41 39 86 218 214 116 286
Reduced Fast
(RR)
100 2.60 0.7 41 39 80 189 186 110 248
Semi Fast
(Medium) (S)
75 1.65 0.4 30 28 64 120 118 96 157
Auxiliary
(Small) (A)
55 1.00 0.4 30 28 50 73 71 71 95
Triple Crown (TC) 130 3.25 1.3 60 57 91 236 232 133 309
Semi-FishBurner
(SP)
- 1.50 0.4 30 28 60 109 107 95 143
Supply pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
