4.1 Types of possible installations
Type 1
Activation of RC in a basic heating system (g.1)
System where the Ariston product is connected exclusively to a single ON/OFF
temperature regulation accessory and you need to go there to activate the Ariston Net
Remote Control.

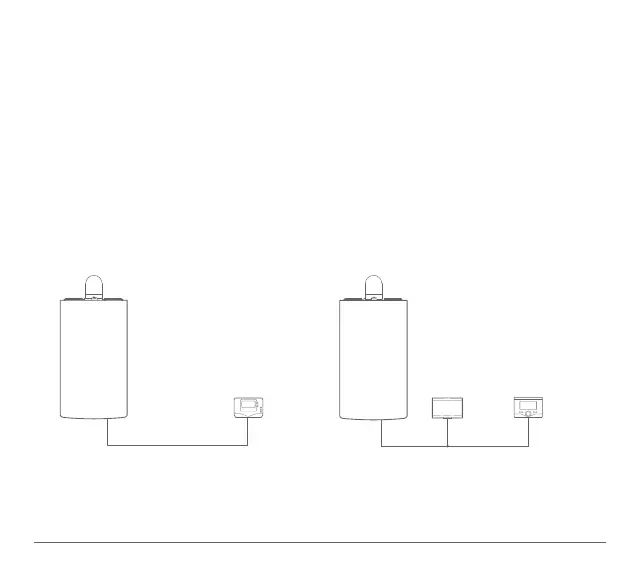

Actions required (Fig. 2):
- Remove the ON/OFF accessory and disconnect the bipolar cable from the TA input
of the boiler
- Install Ariston Sensys and the gateway, connecting them to the heating product via
the BridgeNet BUS connection.
TA
BUS
Fig. 1
Fig. 2.
THERMOSTAT
SENSYS
GATEWAY
