Ariston Zone Manager Kit User Manual

12
preparing the boiler for operation
EN
Programming the Zone Manager
The parameters can be set through the system
interface tted on the heating/cooling system
with heat pump or hybrid system.
Initialisation
Prior to launching the procedure, check that
all the circuits contain water and that bleeding
was carried out properly.
Once all the equipment has been connected,
the system runs an equipment recognition
procedure and performs an automatic
initialisation process.
Conguring the zone manager with the sys-
tem interface
1) Switch on the display by pressing “OK”.
The display switches on.
2) Simultaneously press the back “ ” and “OK”
buttons until “Enter code” appears on the
display.
3) Turn the knob to enter the technical code
(234) then press “OK”: the display will visual-
ise the TECHNICAL AREA.
4) Turn the knob and select: Complete Menu.
Press “OK”.
5) Turn the knob and select menu 7 Zone
module, then press “OK”.
Turn the knob and select menu 7 2 Zone
module then press “OK”.
Turn the knob and select parameter 7 2 0
Hydraulic diagram then press “OK”, turn the
knob and select according to the table be-
low.
Press “OK” to conrm.
Mono-temperature Multi-temperature
Hydraulic circuit diagram Value Hydraulic circuit diagram Value
1 direct zone 4. MGz I 1 direct zone + 1 mixed zone 2. MGm II
2 direct zones 5. MGz II 1 direct zone + 2 mixed zones 3. MGm III
3 direct zones 6. MGz III 2 direct zones + 1 mixed zone 3. MGmIII
Addressing the system interface
To set the correct zone associated with the
system interface, turn the knob and select:
1) Menu 0 Network, press “OK”. Turn the knob
and select menu 0 3 System interface then
press “OK” to conrm.
2) Turn the knob and select parameter 0 3 0
Zone number, then conrm by pressing
“OK”. Turn the knob and select from the
following:
- 0 No zone selected
(System interface not attributed to any zone)
- 1 Zone selected
(System interface attributed to heating zone
1) then conrm by pressing “OK”. Perform the
same operation on each system interface (as
required).
3) Press the back button “ ” to return to the
previous visualisation.
At this point, the module is operational with
the default parameters.

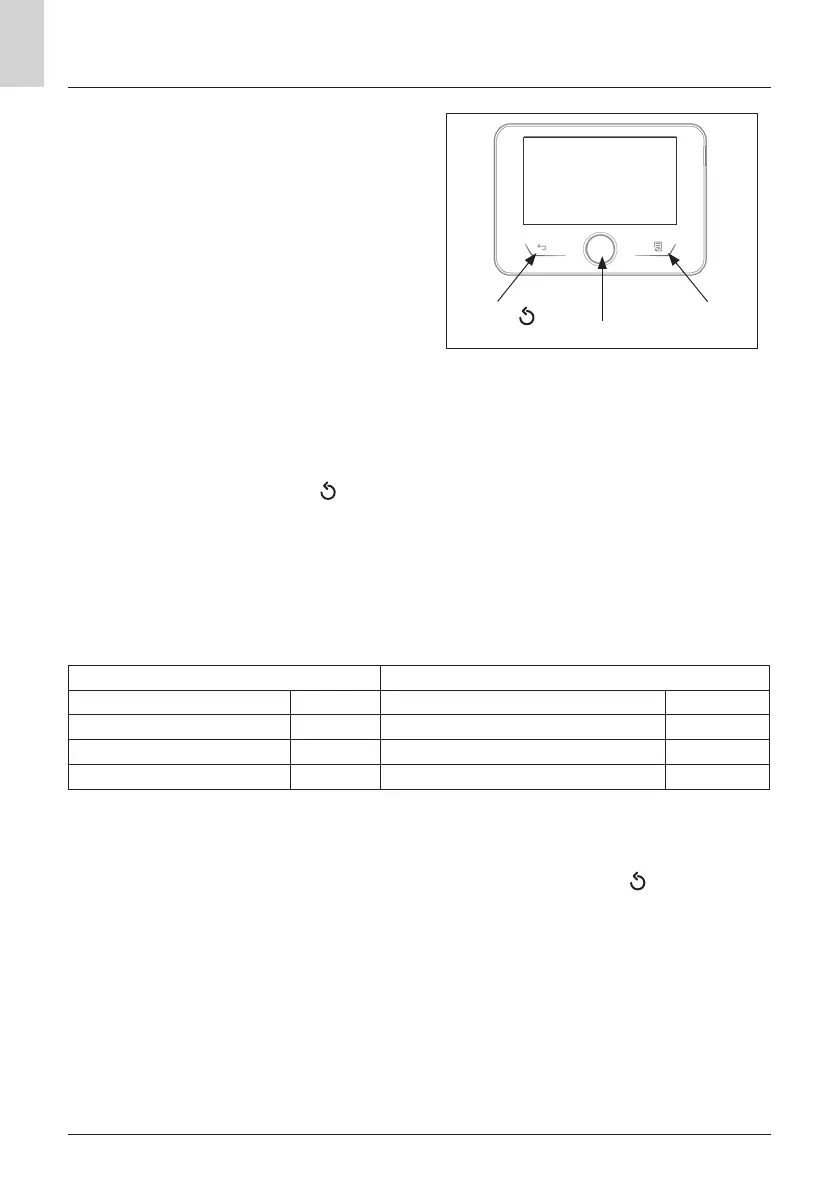

Button
Knob
OK Button
