ARITERM SWEDEN AB • ARITERM OY • Asennus ja käyttöohje • Installation och driftanvisning • Installation and operating instruction • UK 25.05.2012 • 5/32
1 5
2 4
7 6
3
ARITERM-VTT-S-07229-11.1
Dispening auger
Blocking feeder
Upper connection
Primary air pipe
Ignition pipe
Auger Burner
Fan
Pellets are fed
to the burner head from
below
(underfeeding principle)
Safety zone
against fire
in the back
Ignition resistance

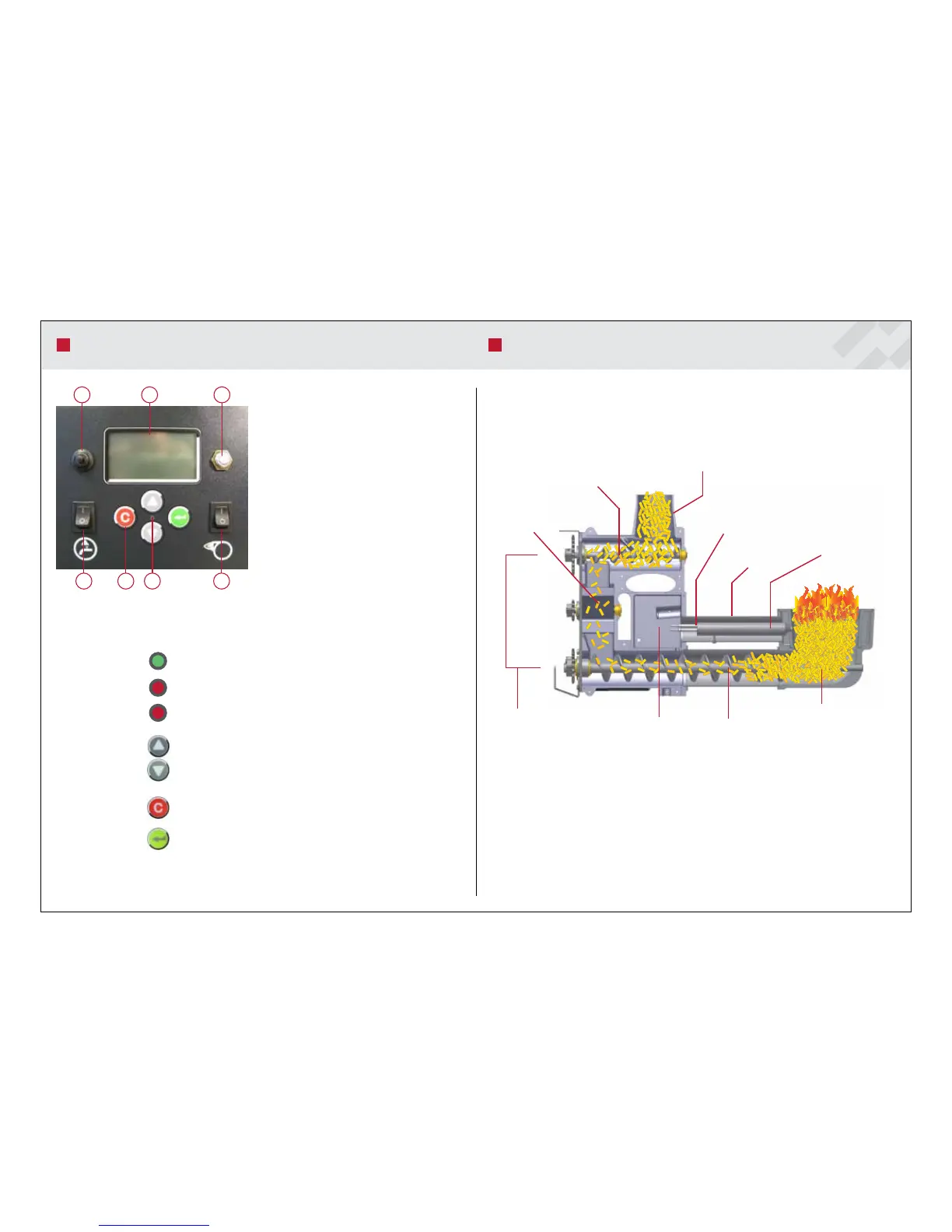

BURNER OPERATING PRINCIPLE
Green: The burner is on
Red: Alarm (the burner is off)
Blinking light: Warning light (do not turn the burner off)
Arrow keys: browsing menus / changing setting
C button: exiting menus / acknowledging warnings / ac-
knowledgement of setting
Enter button: selecting settings / go to sub-menu
1. Inner circulation pump switch
2. Inner circulation pump fuse
3. Display
4. Over heating sensor
5. Main switch
6. Operation and alarm indication by
means of an indicator light
7. Operation button
Temperature
Boiler 80(80)°C
Flue gas -40°C
Burner off (on)
Auger, external
Manual operation off
CONTROL PANEL
