-16-
Way Point Set
Set four way points (WP1~WP4), allow to turn on/off separately.
Set Custom Mode as Way Point Mode（CH5 > 50% and 30 %< CH6< 70%）. The plane will fly
in a loop upon the sequence of 1 to 4, skip the waypoint turned off, and return to home while over
the safe time.
"WP safe time" ---------WP safe time.
Returning to home if reachs the safe time. Re-timing only next
power-on.
"------------------------------------------------------------------------------------------------------------"
"WP1" ---------WP 1 On/Off

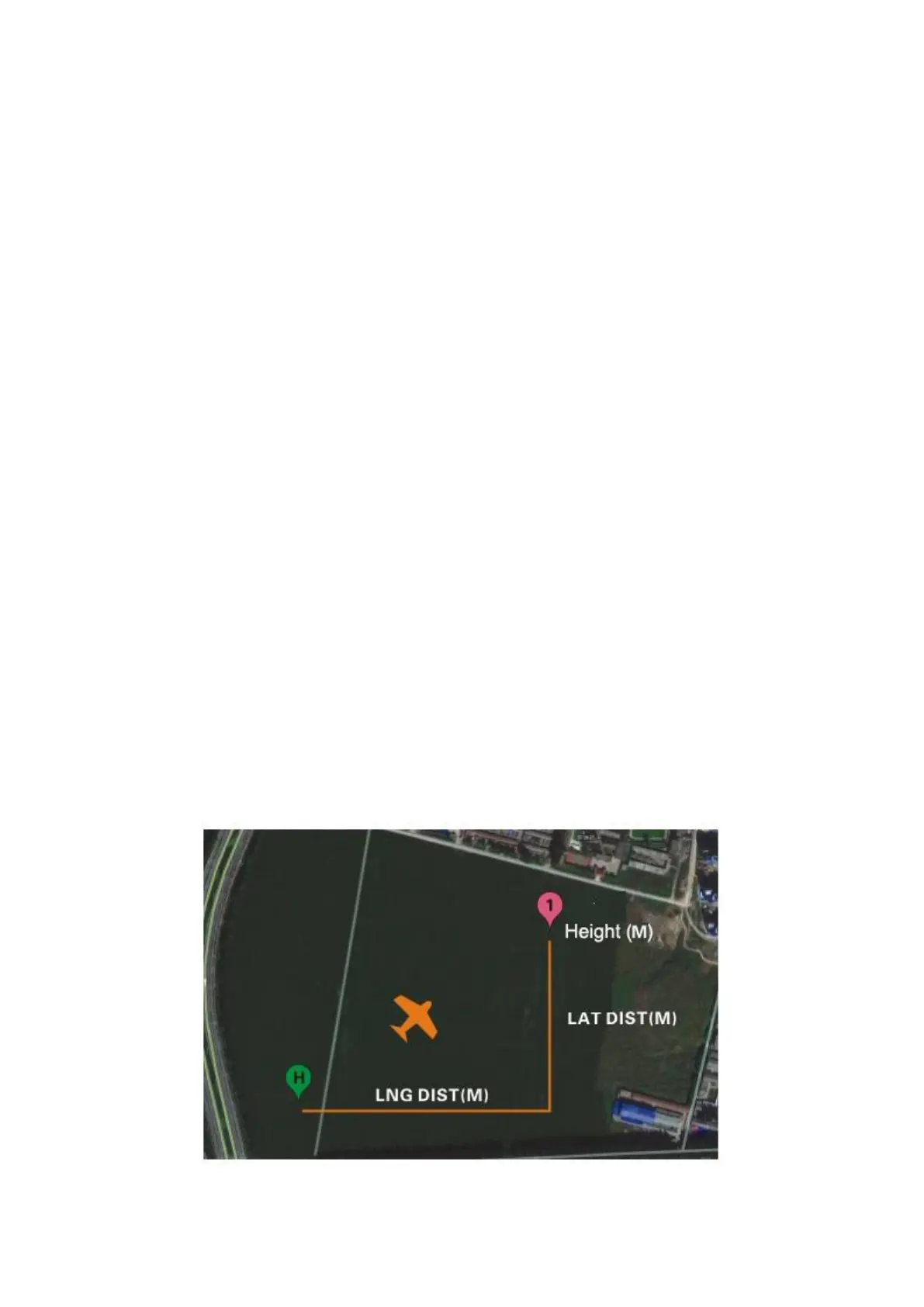

"Lng Dist" ---------Waypoint 1 East-West distance away from Home (m)
“>” means East and “<” means West.
"Lat Dist" ---------Waypoint 1 South-North distance away from Home (m)
“︾”means South and“︽”means North
" Height " ---------Waypoint 1 Height（m）
"WP2" ---------WP 2 On/Off
"Lng Dist" ---------Waypoint 2 East-West distance away from Home (m)
“>”means East and “<” means West
"Lat Dist" --------- Waypoint 2 South-North distance away from Home (m)
“︾”means South and “︽” means North
"Height" --------- Waypoint 2 Height（m）
"WP3" ---------WP 3 On/Off
"Lng Dist" --------- Waypoint 3 East-West distance away from Home (m)
“>” means East and “<” means West
"Lat Dist " ---------Waypoint 3 South-North distance away from Home (m)
“︾”means South and “︽” means North
"Height" ---------Waypoint 3 Height(m)
