-5-

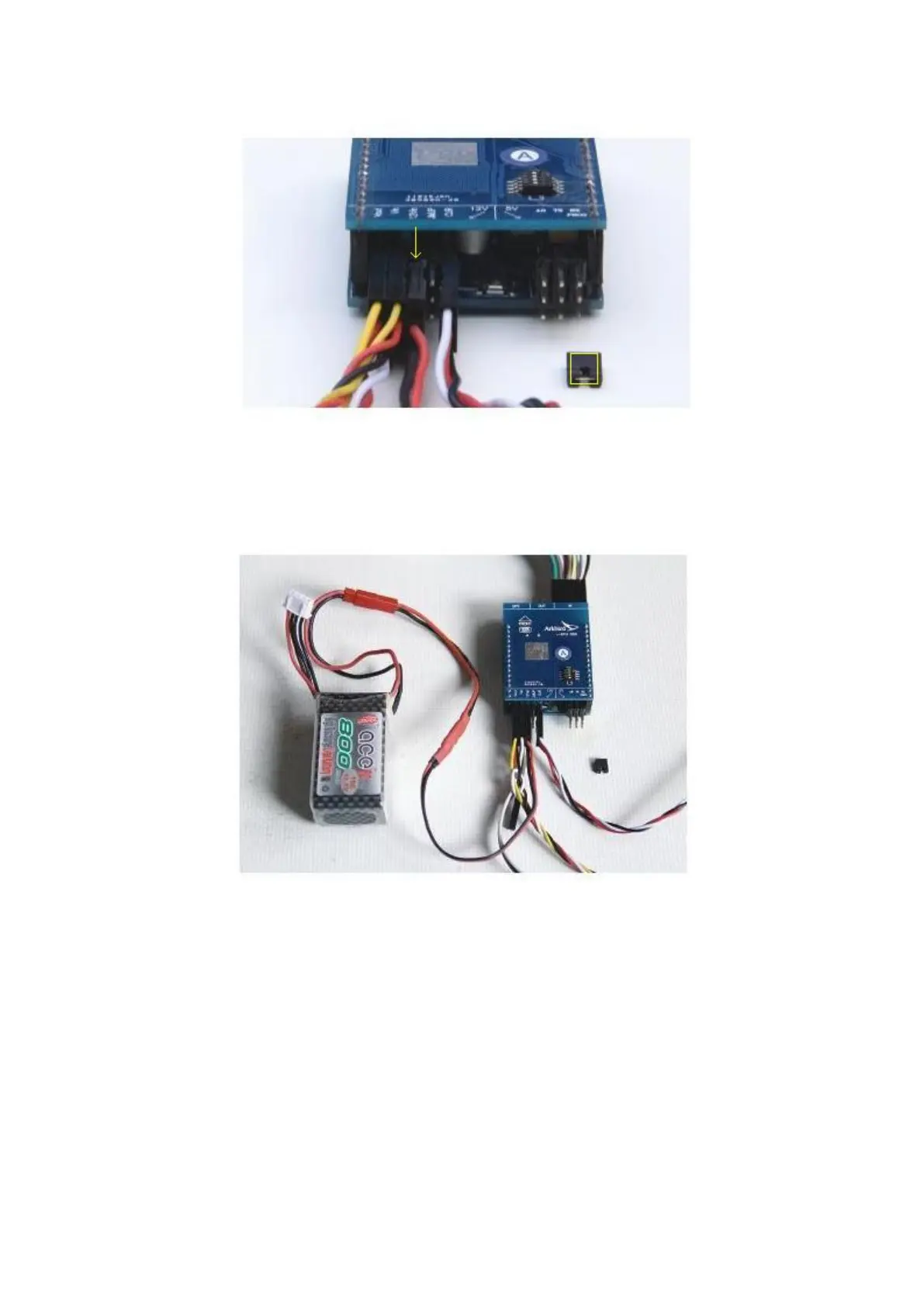

2. If separated supply, remove the jumper, connect another 3S battery (800mah-1000mah) to
the Video Power Port (12Vin) on the third row.
If separated supply, the sequence to power on is OSD 12V first, and then ESC flight power.
Otherwise, the OSD cannot initialize and display.
