Installation
Installation and wiring must be performed by
a licensed electrician.
The light must be wired to its own light switch.
Do not interconnect with other lights on the
same switch.
Step 1.
Wall Mounting
Align mounting plate over desired mounting position
(as shown in Fig. 5) and mark screw holes.
Eave Mounting
For under eave installation, the sensor head must be
rotated to ensure correct operation of the Floodlight
(Refer Fig. 6).
Position the Floodlight under eaves to
allow sensor to be directed towards the area to be
scanned. Mark mounting holes through mounting
plate.
Do not overtighten or use excessive force when
adjusting sensor head or lampholders.
The sensor head must face as shown
(see Fig. 6 and 7).

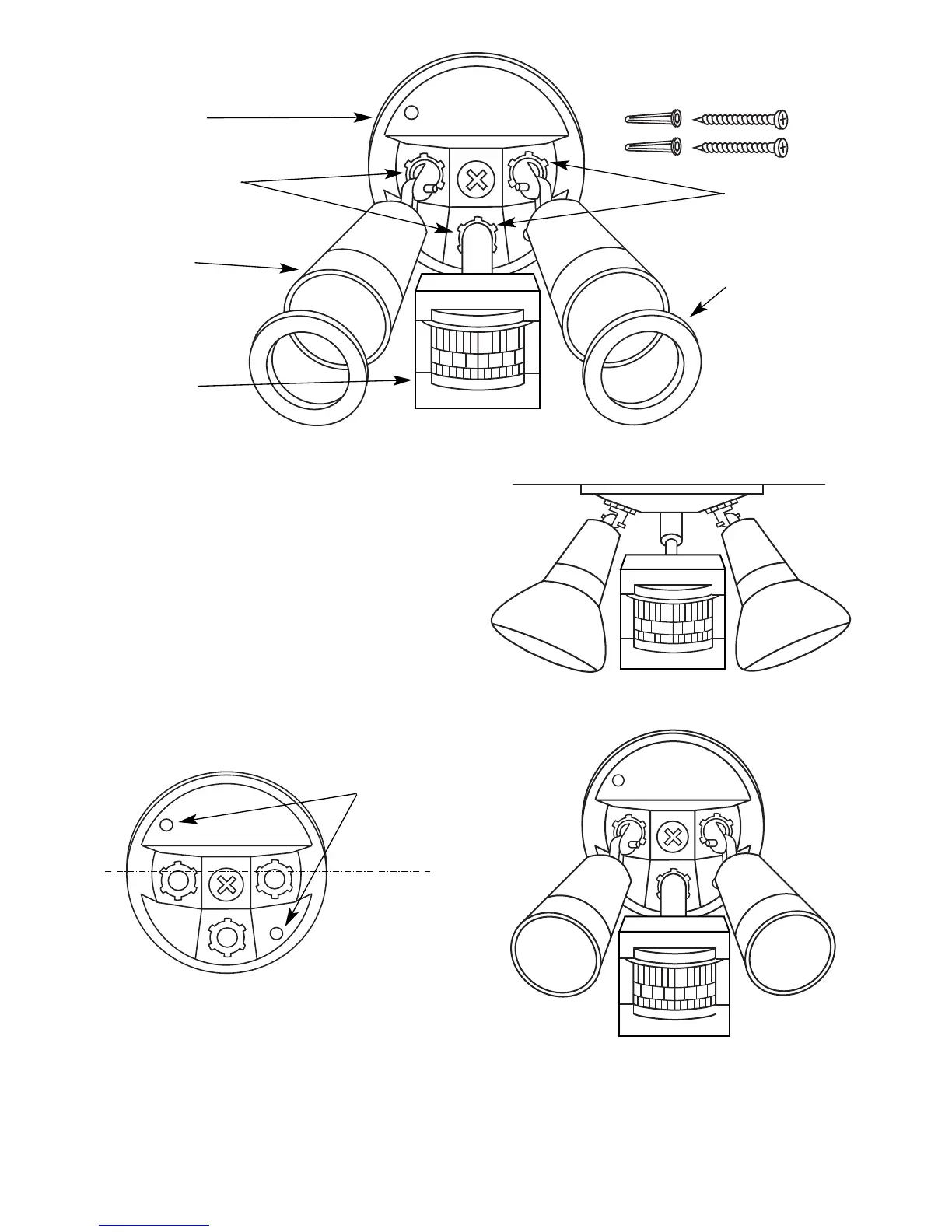

Mounting plate
Joint & clamp screw
Sensor head
Screws & rawl plugs
Locknuts
Weatherproofing
seals
Lampholders
Mounting holes
Horizontal
Eave mount
Wall mount
Fig. 4
Fig. 5
Fig. 6
Fig. 7
