ARM MPS3 User Manual

MPS3 FPGA Prototyping Board
Kintex XCKU115 FPGA
USB 2.0
controller
Ethernet
controller
Ethernet
SMC
USB USB
Combined Ethernet and
dual-USB connector
HDMI PHY
I
2
S
I
2
C
HDLCD
HDMI
Stereo audio codec
Mic In Line In Line Out
Audio
Stacked stereo jacks
1 2 3 4 5 6 7 8
User switches
User LEDs
QVGA CLCD and
touchscreen
I
2
C
Parallel
User
push
buttons
GPIO
GPIO
GPIO
User
microSD
eMMC
DDR4
QSPI flash
MCC
Configuration
microSD
SCC/SMBF
Configuration
Clock
generators
and 24MHz
PLLs
I
2
C
Debug USB
USB
hub
USB-serial
interface
UART
4×UART
CoreSight/Trace connectors
CoreSight
CMSIS-DAP
controller
ADC
AD0[5:0]
Shield 0
Pmod0/1 Pmod2/3
Shield 1
AD1[5:0]
IO0[15:0] IO1[15:0]
GPIO GPIOADC controller
F-JTAG ILA
F-JTAG
Hardware
reset push
buttons
On/Off Soft
reset push
buttons
PBRST PBON
Shield and Pmod
expansion connectors
MPS3 power
supplies
FMC-HPC
Board present/
Powerup board
TLX/User I/O
System
LEDs
Push
button
LEDs

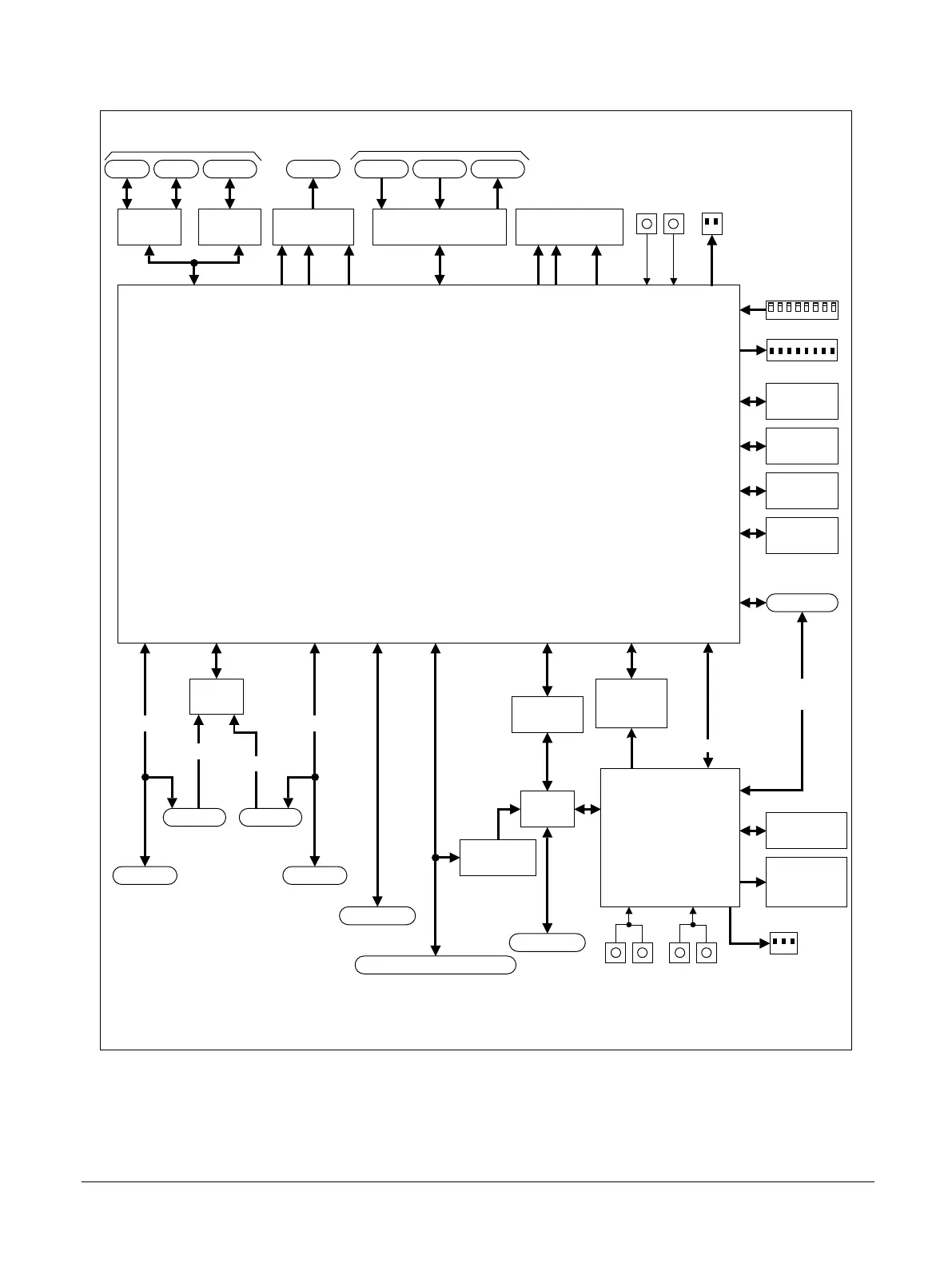

Figure 2-1 Hardware infrastructure of the MPS3 board
The MPS3 board contains the following components:
• One Xilinx Kintex Ultrascale XCKU115‑1FLVB1760C FPGA:
2 Hardware description
2.1 Overview of the board hardware
