Clamp Meter
8

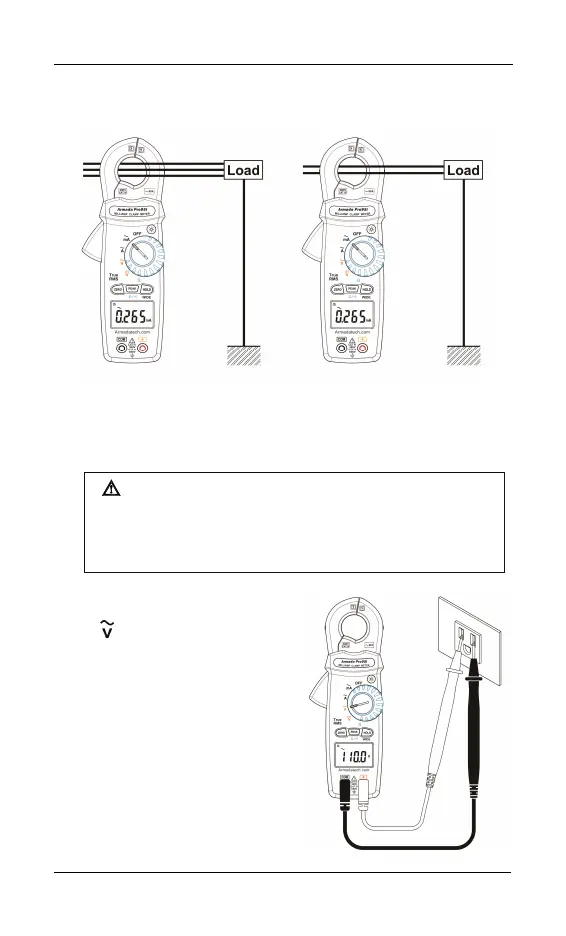

Fig.2 Measuring out of balance leakage current:
3-Phase 3-Wire system Single-Phase 2-Wire system
6-2 ACV Measurement：
WARNING!
Maximum Input Voltage is 600V AC/DC. Do not attempt to
Take any voltage measurement that may exceed this
maximum to avoid Electrical shock hazard and/or damage to
this instrument.
Switch the main function selector
to
range.
Connect the red test lead to the
“ + ” terminal and the black lead
to the “COM” terminal.
Measure the voltage by touching
the test lead tips to the test circuit
where the voltage measurement
is required.
Read the result from the LCD
display.
