506501-01Page 32 of 48 Issue 1031

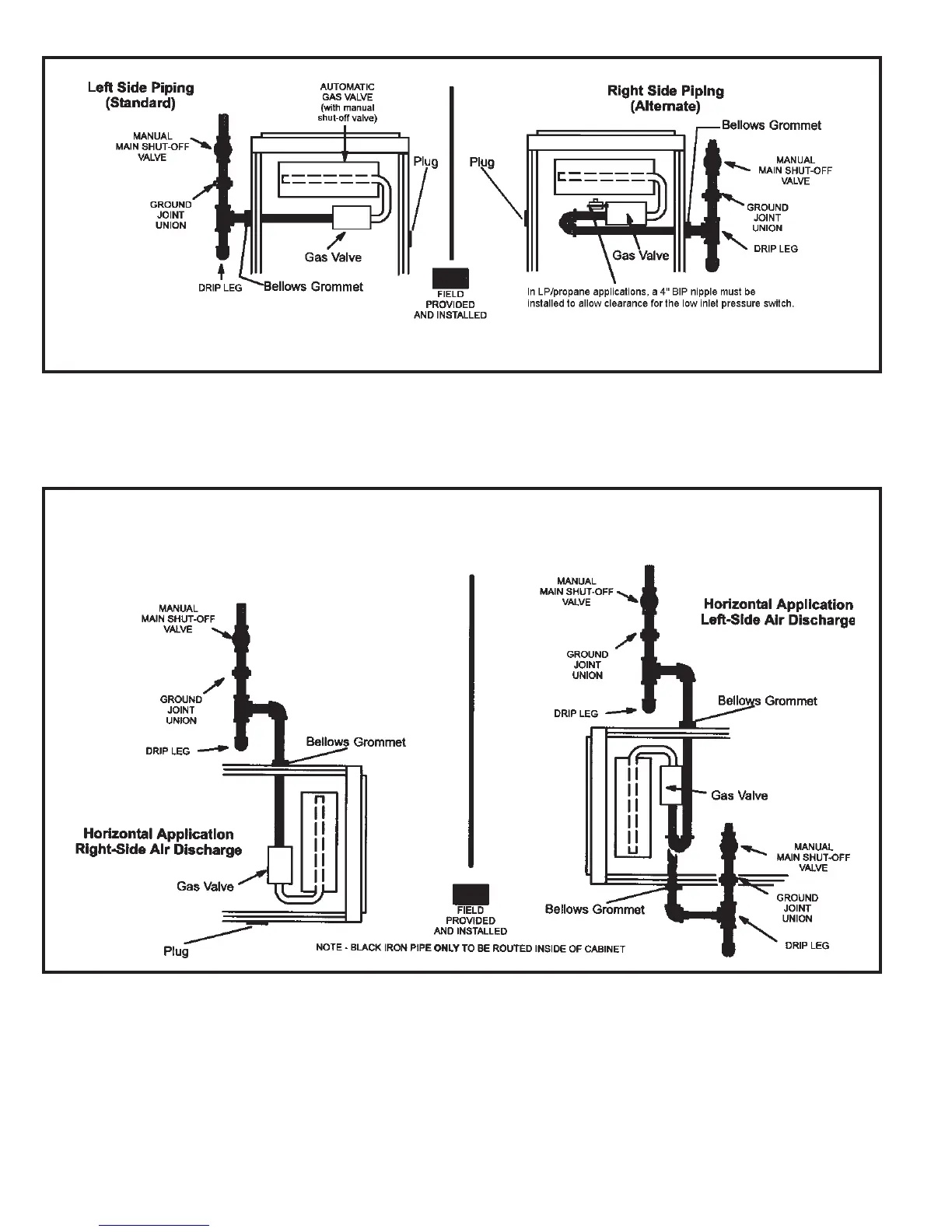

Figure 47
NOTE: BLACK IRON PIPE ONLY TO BE ROUTED INSIDE OF CABINET
Horizontal Applications
Possible Gas Piping Configurations
Figure 48
