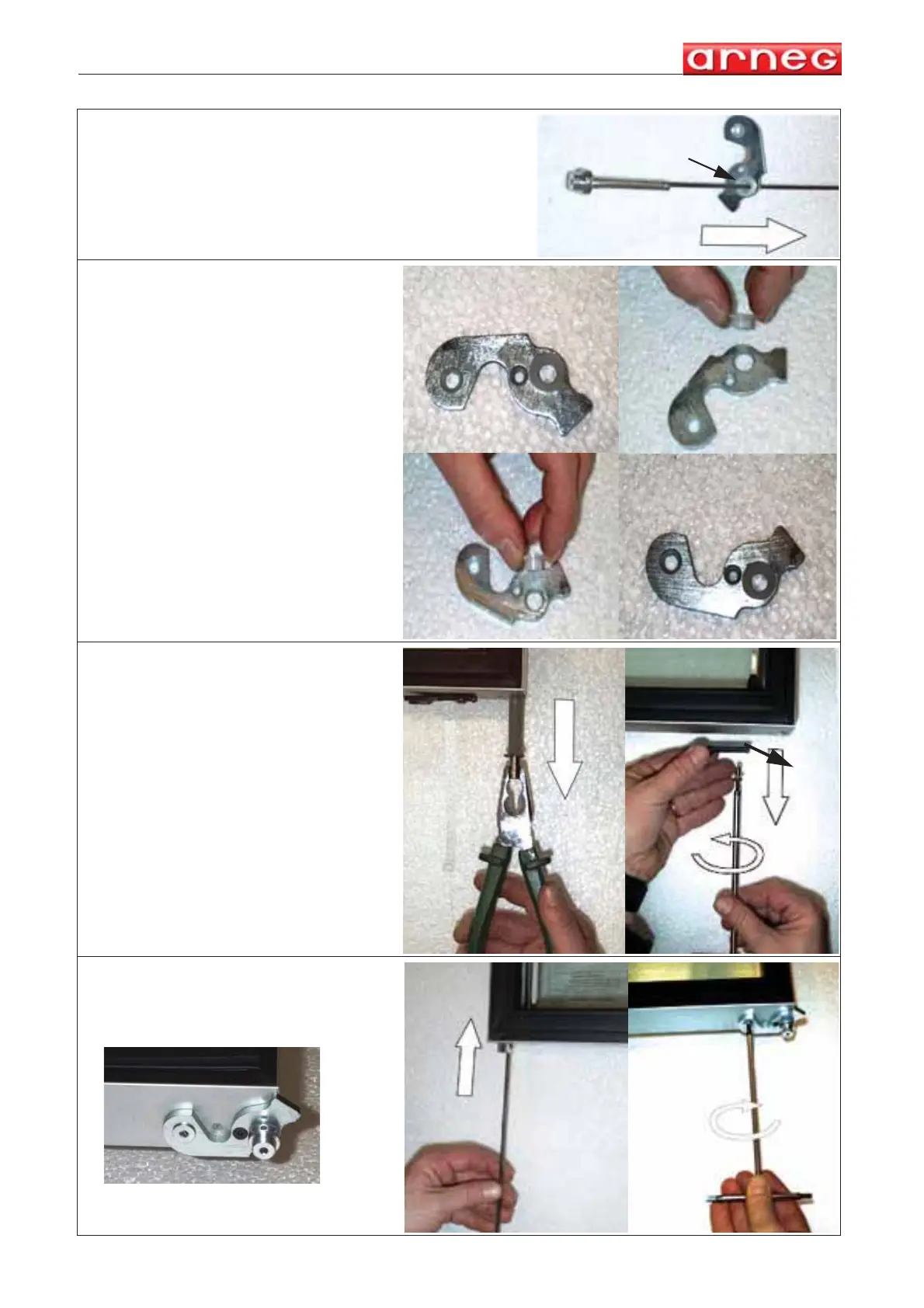

8 Remove the universal door-blocking
bracket (1)
9 Transform the universal bracket from
right to left.
A) Right-hand bracket
B) Remove the lower brass (1);
C) Turn the bracket upside down and
insert the brass
D) Left-hand bracke.
10 A) With the utmost delicacy, remove
the upper hinge from the upper part of
the door, making sure not to exert
excess stress on the coupling between
the pin and the plastic bush;
B) Also dismantle the anti-fraying fork
(1).
11 Re-mount the lower hinge unit, having
now become a left-hand unit, following
phases 8-9 backwards and insert it in
place of the upperhinge.
(1)
