Arneg Pelican - Page 40

Pelican
English
05060104 01 01/09/2015 41

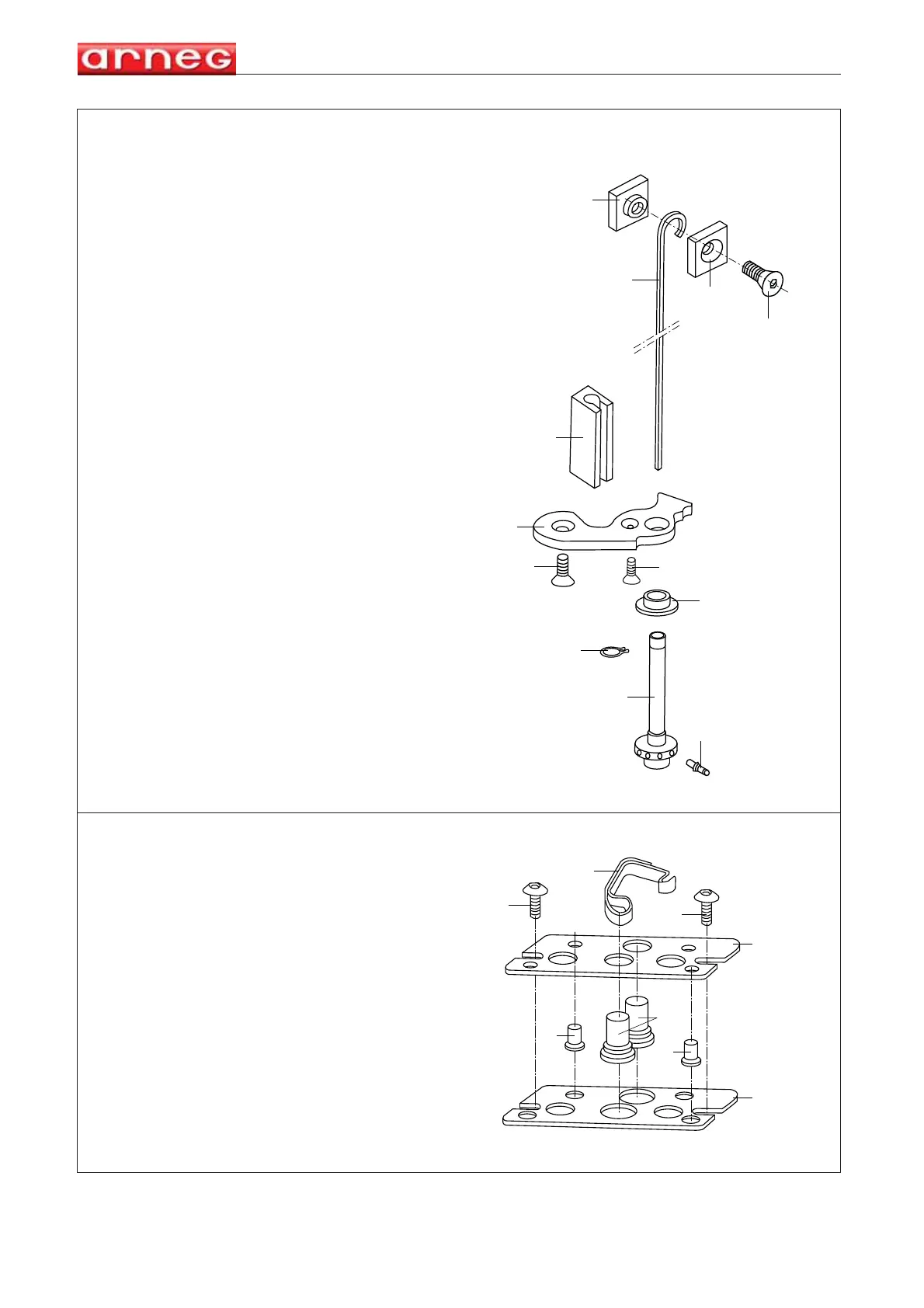

HINGE UNIT
1) Galvanised block for curved spring
2) Threaded galvanised block for curved
spring
3) Burnished screw M4x8
4) Hook-shaped square-section spring
5) Lower pin-guide sleeve
6) Universal door-block bracket
7) Screw
8) Screw
9) Lower brass
10) Universal galvanised Seeger ring
11) Square spring lower pin w/ radial holes
12) Spring-loading pin
PLATE UNIT
1) Door-blocking spring
2) Plate fixing stainless steel screws
3) Blanked plate
4) Ratchet for peg
5) Pin for door-blocking spring
6) Nylon under-plate
2
4
1
3
5
6
7
8
9
10
11
12
1
2
2
3
6
4
4
5
