Arnott C-2242 - Loosen the Two (2) Bolts on the Backside of the Caliper. (Figure

6
REV 3 12/04/2014
C-2242
C-2242
ARNOTT COIL SPRING CONVERSION KIT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)

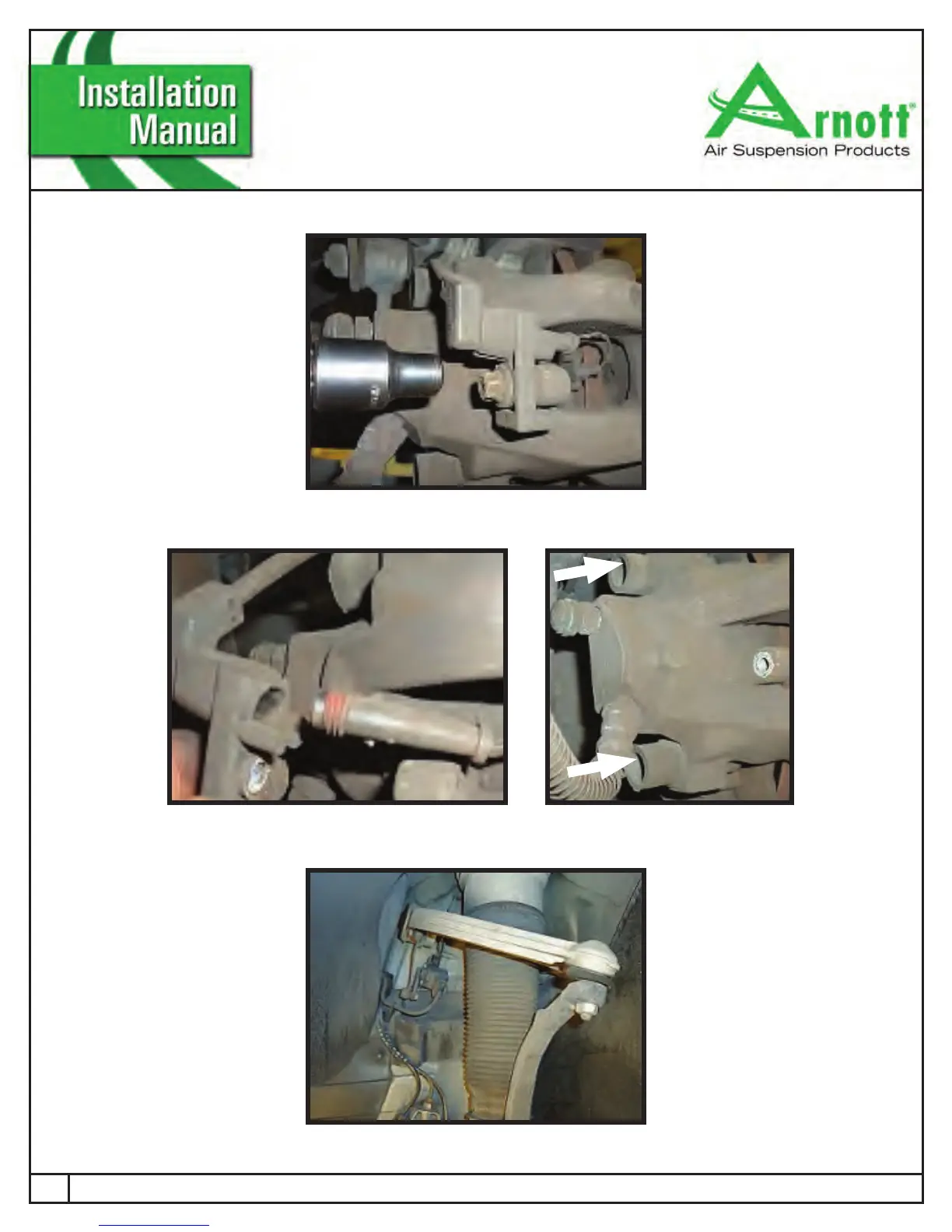

6. LOOSEN THE TWO (2) BOLTS ON THE BACKSIDE OF THE CALIPER. (FIGURE 20-5)
7. DISCONNECT THE SENSOR CONNECTOR AND REMOVE THE SENSOR BRACKET. (FIGURE 20-6)
8. SECURE THE CALIPER. (FIGURE 20-7)
FIGURE 20-5
FIGURE 20-7
FIGURE 20-6
