Arnott C-2278 - Page 6

6
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

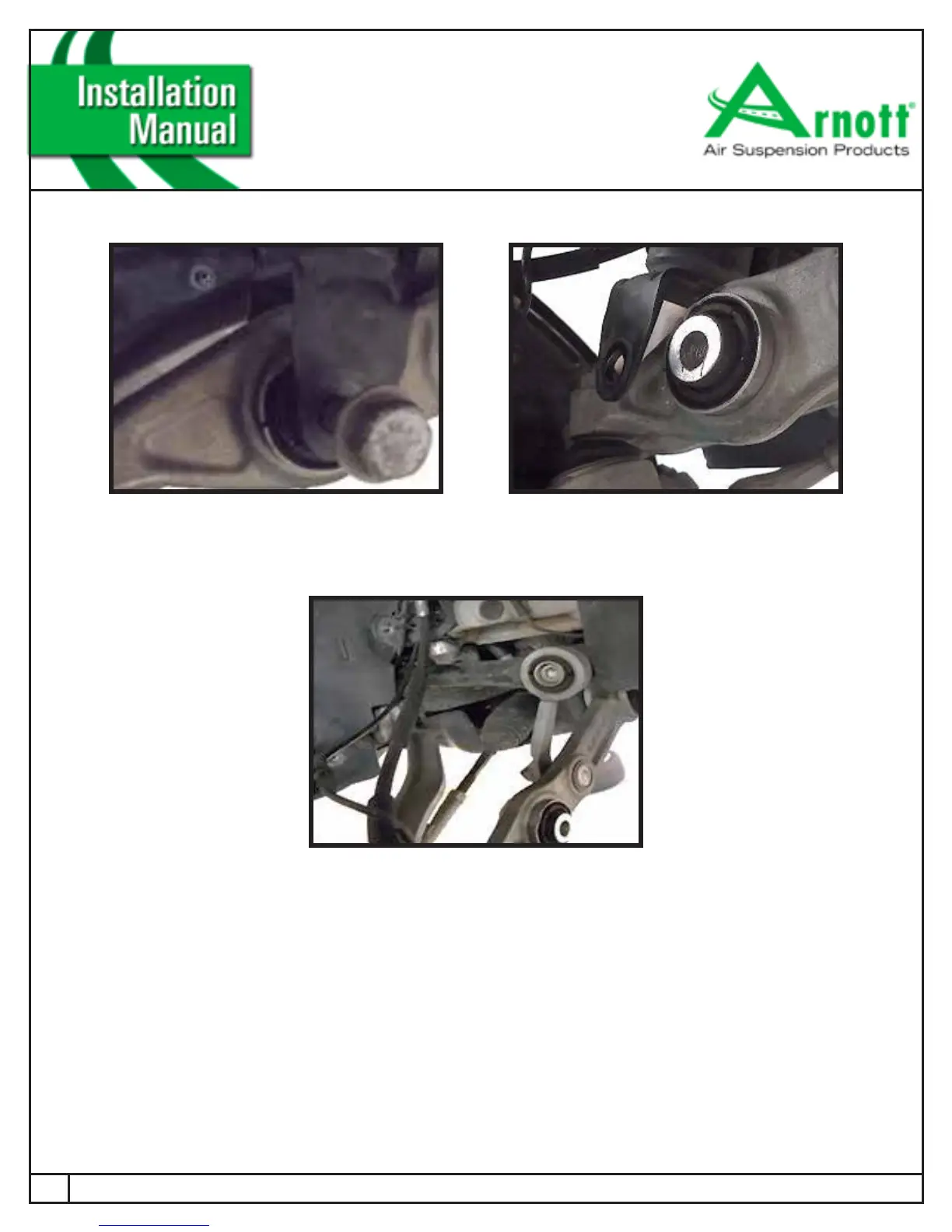

FIGURE 10-11
FIGURE 10-12
14. REMOVE THE STRUT ASSEMBLY FROM THE VEHICLE. (FIGURE 10-12)
13. REMOVE THE LOWER STRUT MOUNTING BOLT. (FIGURE 10-11)
15. AIR STRUT REMOVAL COMPLETE.
