ARNOTT AIR SUSPENSION COMPRESSOR
FORD EXPEDITION/LINCOLN NAVIGATOR
CHASSIS: UN173 2WD/4WD, U228

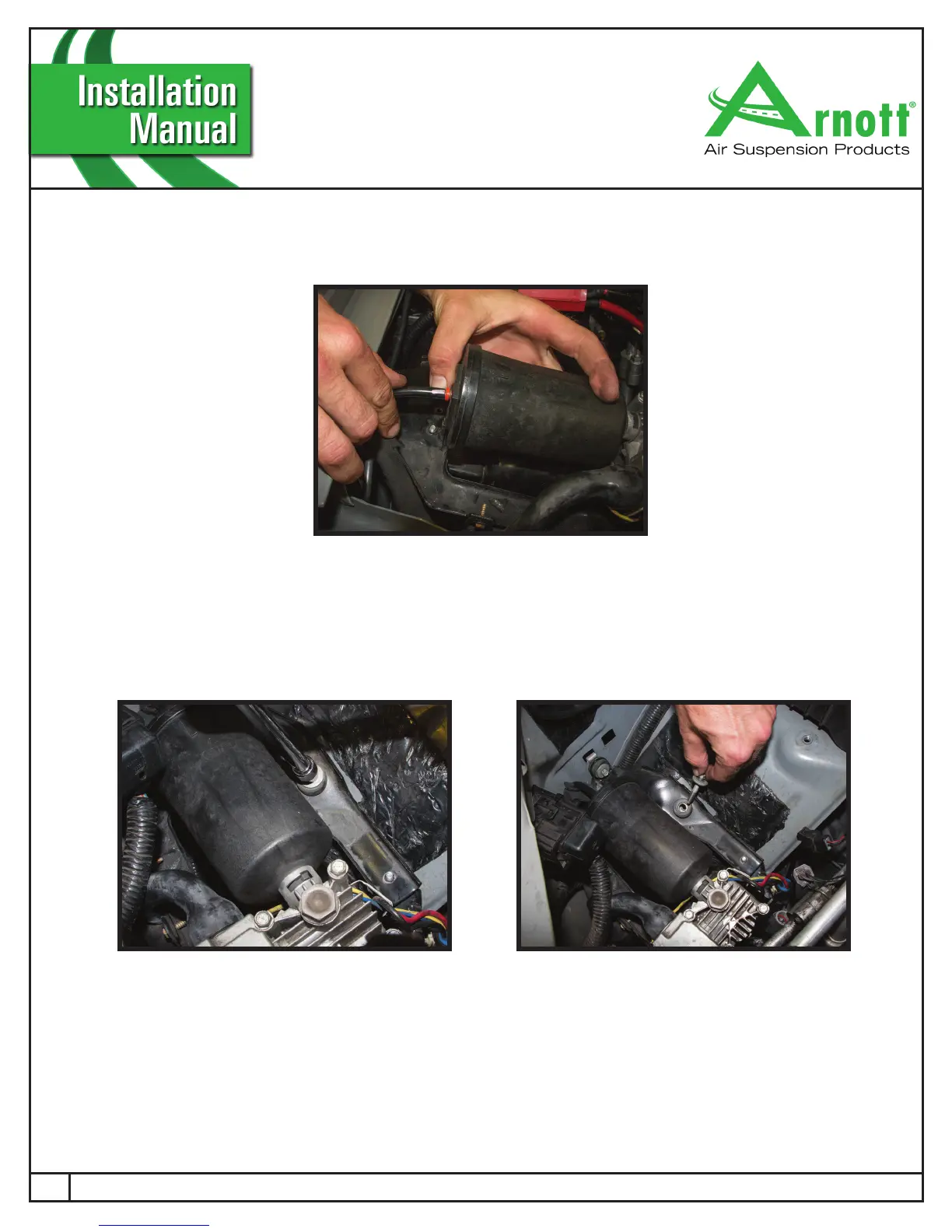

4. DISCONNECT THE AIR LINES BY FIRST DEPRESSING THE ORANGE COLORED QUICK-CONNECT
LOCKING RINGS WHILE PULLING SIMULTANEOUSLY OUTWARD ON THE AIR LINE. (FIGURE 2)
FIGURE 2
5. CAREFULLY DISCONNECT THE ELECTRICAL CONNECTOR.
6. UNBOLT THE THREE (3) FASTENERS RETAINING THE COMPRESSOR ONTO THE VEHICLE, NEXT
REMOVE THE ASSEMBLY FROM ITS MOUNTING LOCATION. (FIGURES 3,4)
FIGURE 3
FIGURE 4
