9. Cut supplied air tube to length to go from the AromaPro to
the hose guide. The distance between the AromaPro and hose
guide should be as short as possible. MAX 3 FEET. Do not
leave any slack. Coiling or excess of the air tube will
create air pockets and buildup of scent inside the tube.
10. Connect the AromaPro to the 110V-240V plug and set the timer.

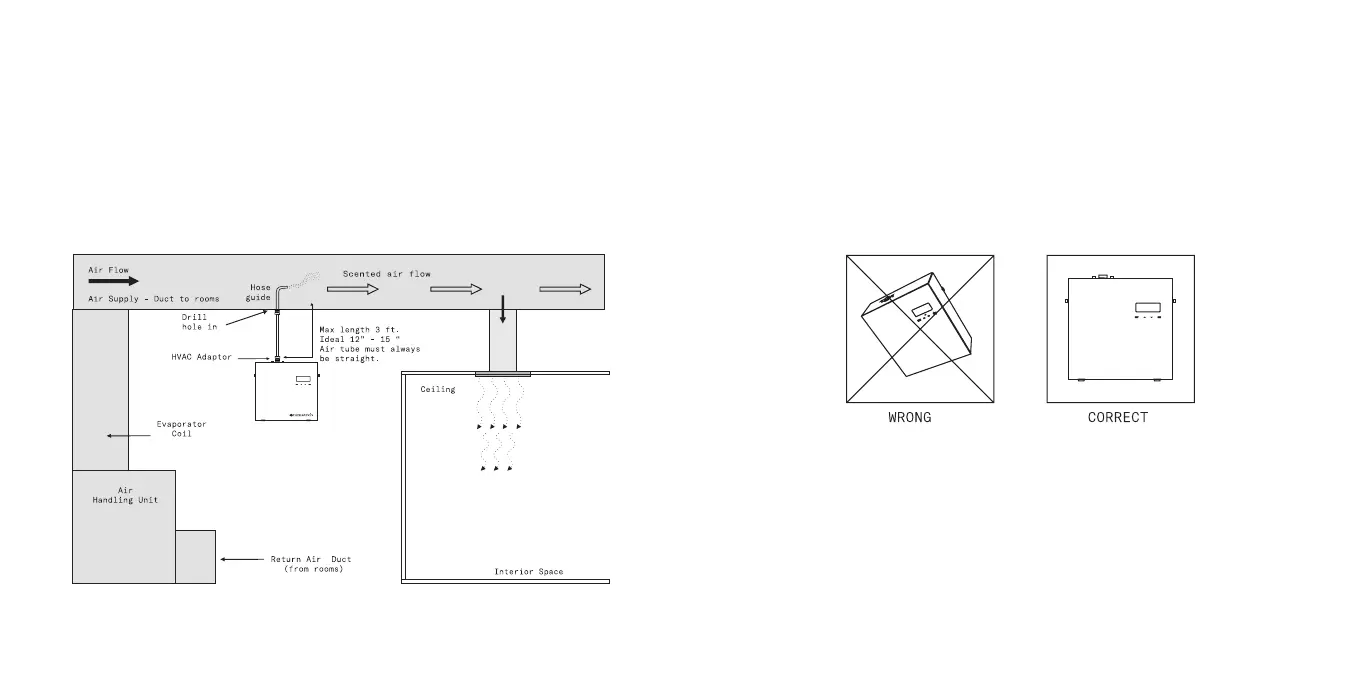

AROMAPRO HVAC CONNECTION DIAGRAM FIG A
IMPORTANT: Do not drill through a coil, or before the filters.
WARNING
After installation, please keep the machine vertical. Tilting
or placing it flat may cause an oil overflow. If the AromaPRO is
tilted, the oil will overflow inside and may potentially damage
the machine.
