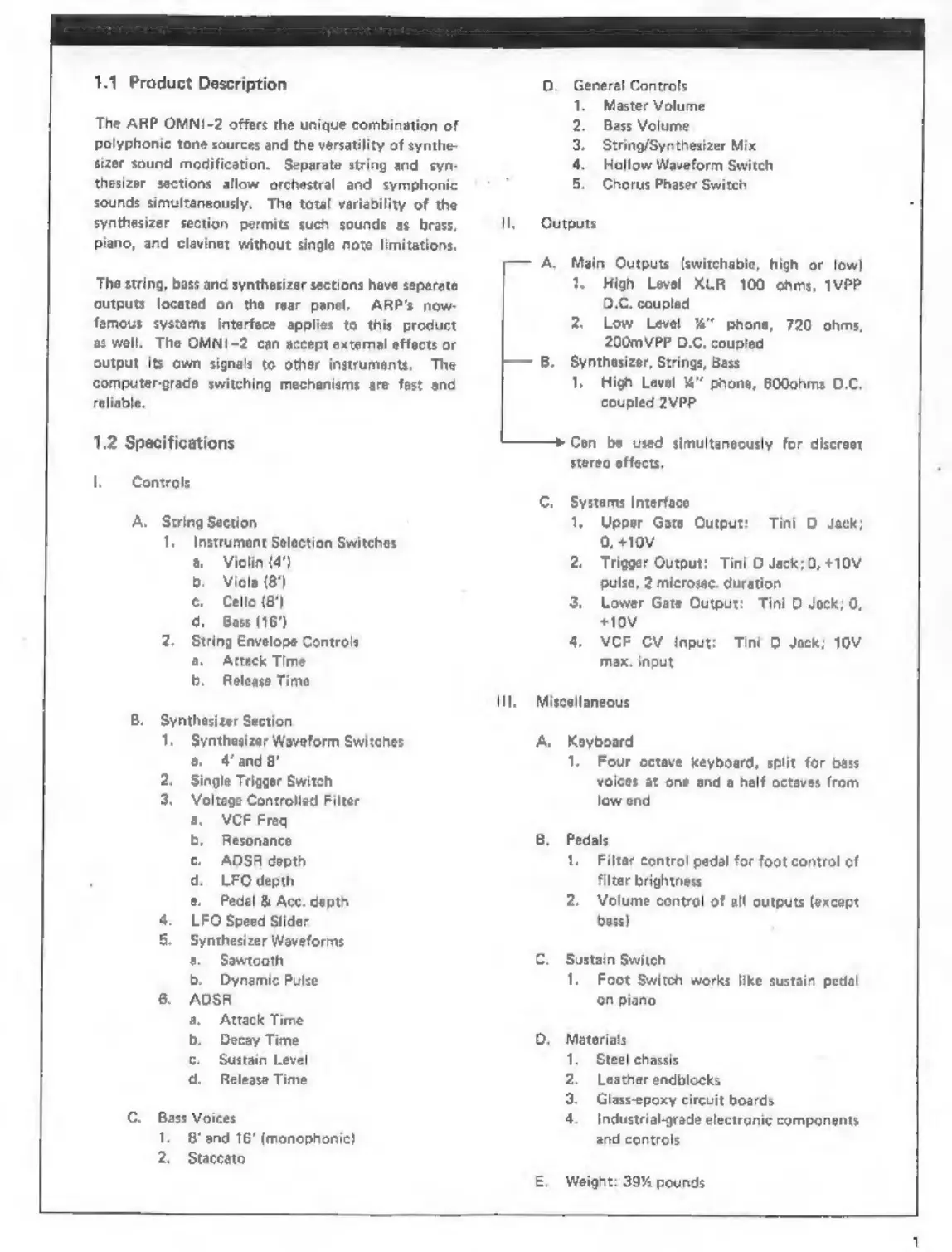

1.1 Product Description
The
ARP
OMNI-2
offers
the
unique
combination
of
polyphonic
tone
sources
and
the
versatility
of
synthe-
sizer
sound
modification.
Separate
string
and
syn
thesizer
sections
allow
orchestral
and
symphonic
sounds
simultaneously.
The
total
variability
of
the
synthesizer
section
permits
such
sounds
as
brass,
piano,
and
clavinet
without
single
note
limitations.
‘The string, bass and synthesizer sections have separate
outputs located on the rear panel. ARP% now
famous systems interface applies to this product
as well. The OMNI-2 can accept external effects or
output its own signals to other instruments. The
computergrade switching mechanisms are fast and
reliable.
1.2 Specifications
I. Controls
A. String Section
1. Instrument Selection Switches
а. Violin (4%
b. Viola (8)
c. Cello (8)
d. Bass (16)
2. String Envelope Controls
а. Attack Time
b. Release Time
B. Synthesizer Section
1, Synthesizer Waveform Switches
а. 4‘ and 8°
2. Single Trigger Switch
3. Voltage Controlled Filter
а. МСЕ Freq
b. Resonance
c. ADSR depth
d. LFO depth
e. Pedal & Acc. depth
4. LFO Speed Slider
5. Synthesizer Waveforms
а. Sawtooth
b. Dynamic Pulse
6. ADSR
a. Attack Time
b. Decay Time
c. Sustain Level
d. Release Time
C. Bass Voices
1. Band 16" (monophonic)
2. Staccato
D. General Controls
1. Master Volume
2. Bass Volume
3. String/Synthesizer Mix
4. Hollow Waveform Switch
5. Chorus Phaser Switch
Il. Outputs
В
А.
Main
Outputs
(switchable,
high
or
low)
1.
High
Level
XLR
100
ohms,
1VPP
D.C.
coupled
2.
Low
Level
М"
phone,
720
ohms,
200mVPP
D.C.
coupled
[— 8. Synthesizer, Strings, Bass
1. High Level %" phone, 600ohms D.C.
coupled 2VPP.
Can be used simultaneously for discreet
stereo effects.
C. Systems Interface.
1. Upper Gate Output:
0, 10V
2. Trigger Output: Tini D Jack:
pulse, 2 microsec. duration
3. Lower Gate Output: Tini D Jack; 0,
+10V
4. VCF CV Input: Tini D Jack; 10V.
max. input
Tini D Jack;
, +10V
IIL, Miscellaneous
A. Keyboard
1. Four octave keyboard, split for bass
voices at one and a half octaves from
low end.
B. Pedals
1. Filter control pedal for foot control of
filter brightness.
2. Volume control of all outputs (except
bass)
C. Sustain Switch
1. Foot Switch works like sustain pedal
on piano
0. Materials
1. Steel chassis
2. Leather endblocks
3. Glassepoxy circuit boards
4. Industrial-grade electronic components
and controls
E. Weight: 39% pounds
